HYSF MGBH HV-Custom is a proprietary metal-housed high-voltage underwater connector series (2/4/6 pins) rated to 5000V with flexible current combinations. IP68-rated, 10,000 PSI tested, ideal for high-power subsea applications like ROV thrusters, underwater welding, and custom power distribution.
The HYSF MGBH HV-Custom series is a fully proprietary customized metal-housed underwater connector supporting 2-pin, 4-pin, or 6-pin configurations within the same robust platform. Rated for high-voltage applications up to 5000V DC/AC, with tailored current ratings (e.g., 50A/100A/200A per pin) to meet specific power demands—perfect for advanced subsea power delivery in ROV propulsion, underwater arc welding, and multi-circuit offshore systems.

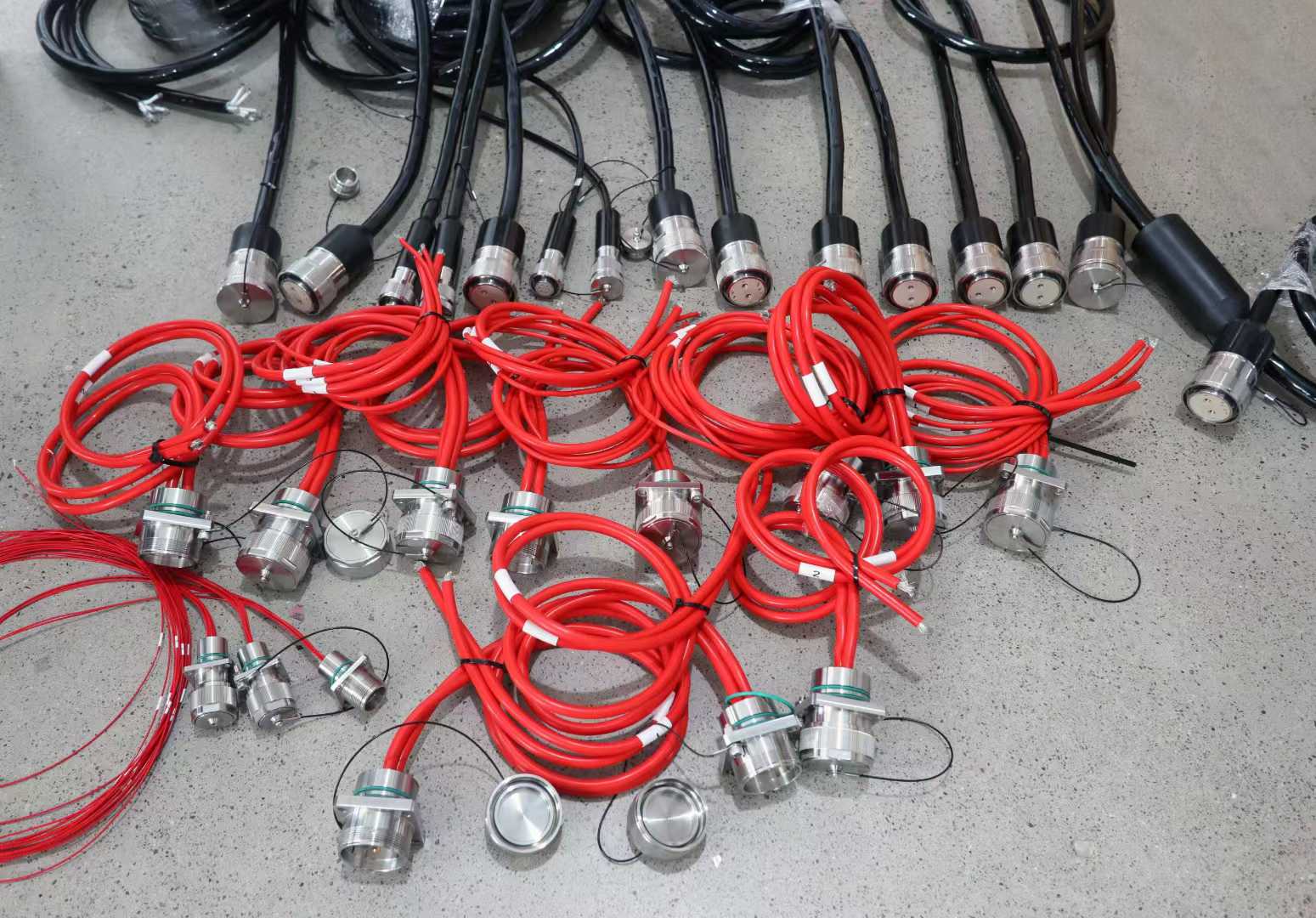

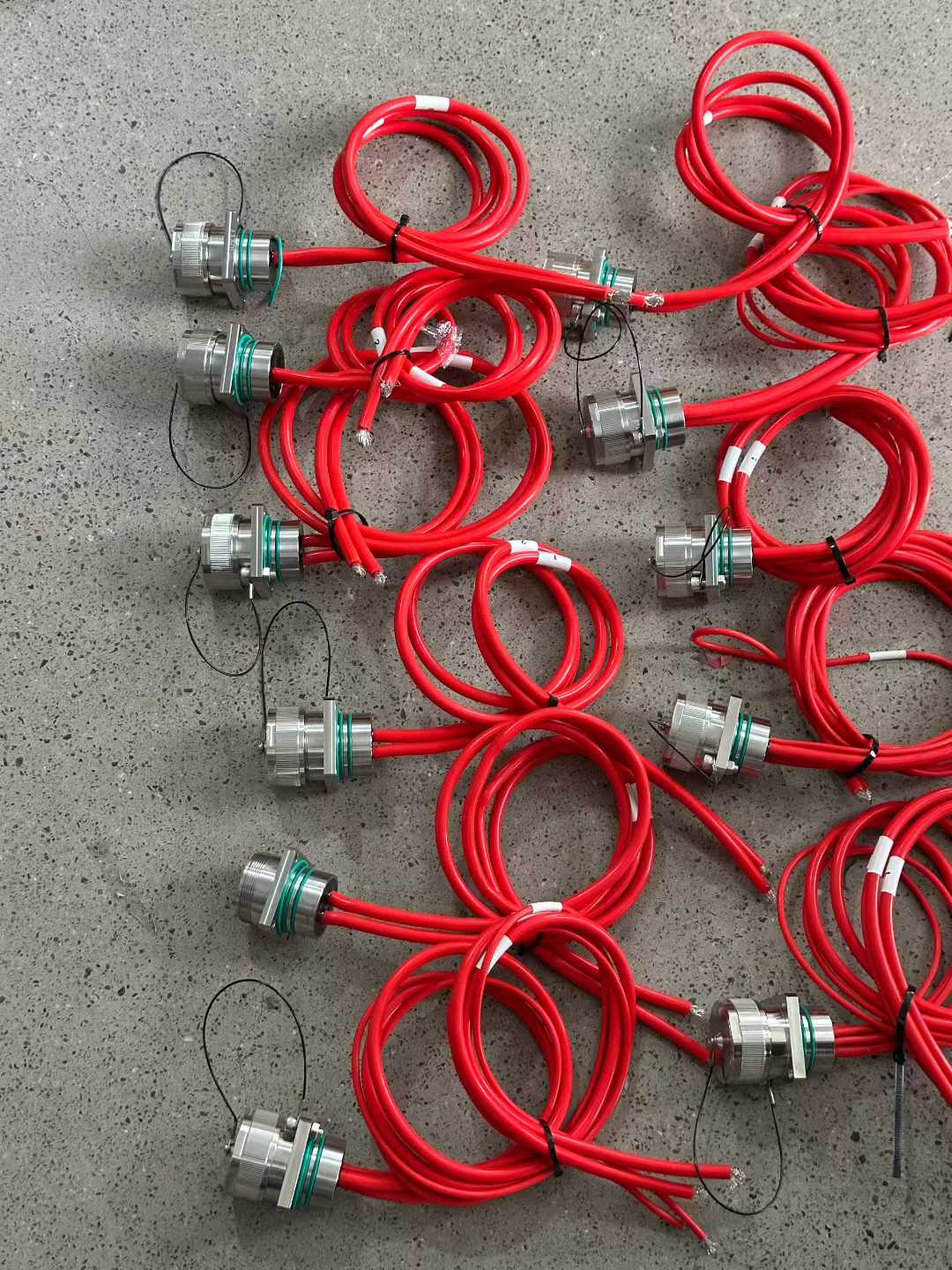

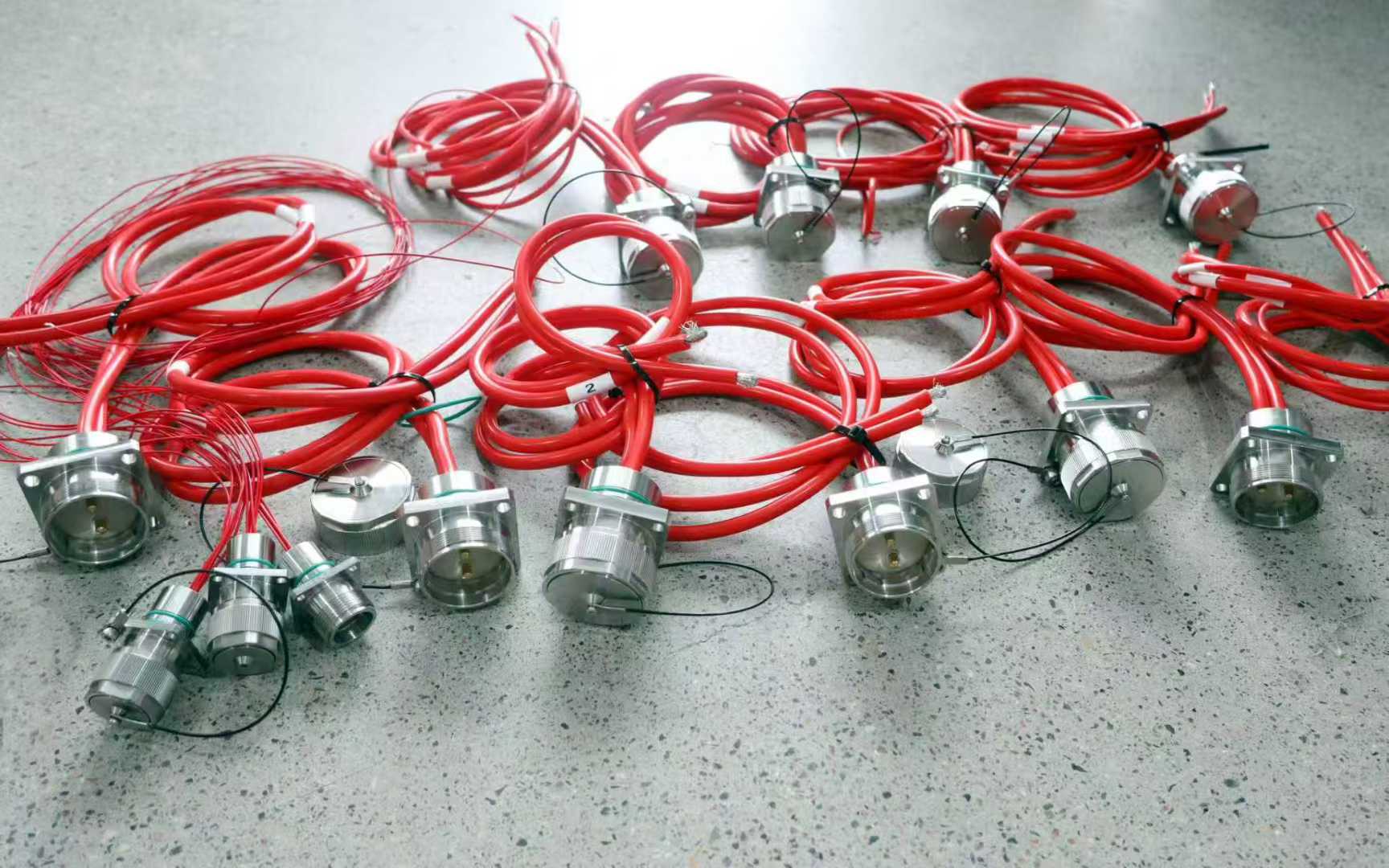

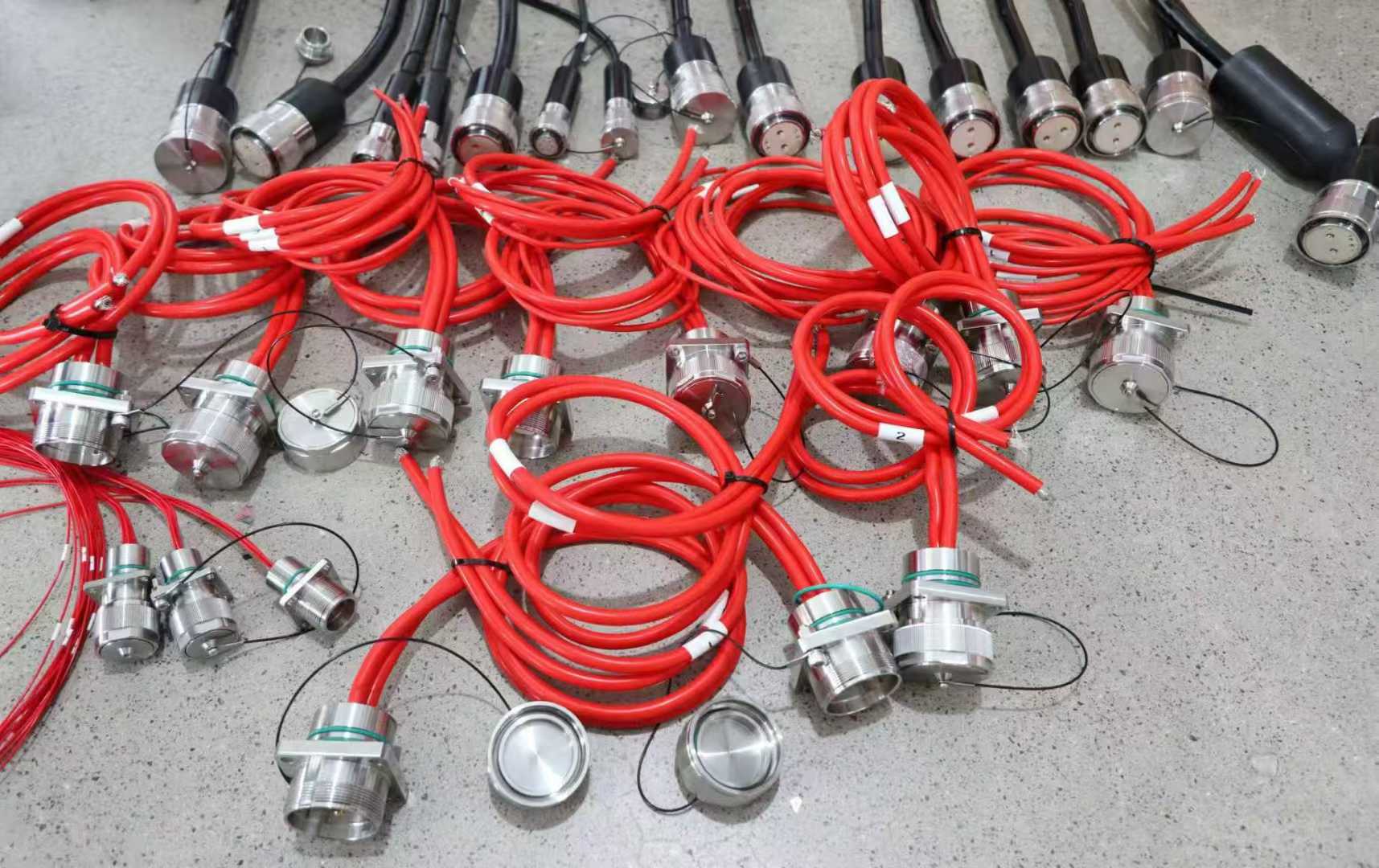

Precision-machined from marine-grade stainless steel with insulated epoxy potting and gold-plated high-voltage brass contacts, it ensures dielectric integrity, corrosion resistance, and mechanical strength in aggressive saltwater. Features red overmolded polyurethane cables for visibility and strain relief, IP68 sealing, and mated pressure up to 10,000 PSI (689 Bar), enabling safe operation at depths exceeding 6000 meters.
This private customization allows seamless integration of voltage/current combinations in a single connector family, reducing inventory and simplifying designs. HYSF engineers each variant to exact specifications, including pin mapping and cable specs. ISO9001-2015 certified and rigorously tested for high-stakes marine power applications.
Model: MGBH HV-Custom
Brand: HYSF
Type: Custom Metal-Housed High-Voltage Underwater Connector (Proprietary)
Pin Options: 2-Pin, 4-Pin, 6-Pin (Same Housing Series)
Voltage Rating: Up to 5000V DC/AC
Current Rating: Custom Combinations (e.g., 50A/100A/200A per Pin)
Thread Standard: 1-20 UNF-2A (MGBH Compatible)
Housing Material: Stainless Steel with Epoxy Insulation
Contact Material: Gold-plated High-Voltage Brass
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI (689 Bar)
Depth Rating: Up to 6000m+
Interface Type: High-Voltage AC/DC Power Compatible
Application: ROV Thrusters, Underwater Welding, Subsea Power Distribution, Custom High-Power Circuits
Certification: ISO9001-2015
Customization: Pin count, voltage/current mix, cable length/color, insulation thickness, proprietary locking
Compatibility: MGBH Series mating (custom variants non-interchangeable)
Place of Origin: Guangdong, China
