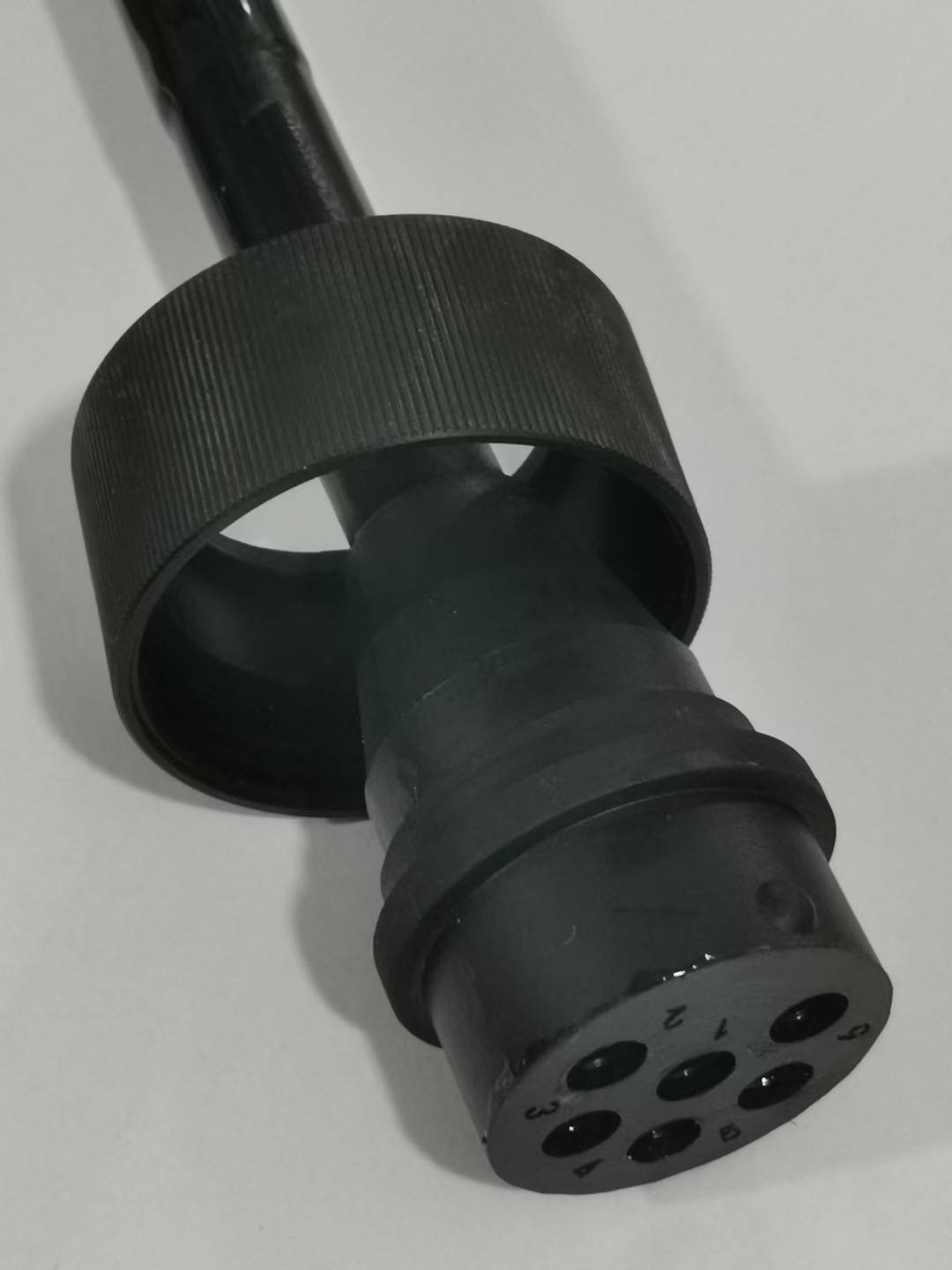

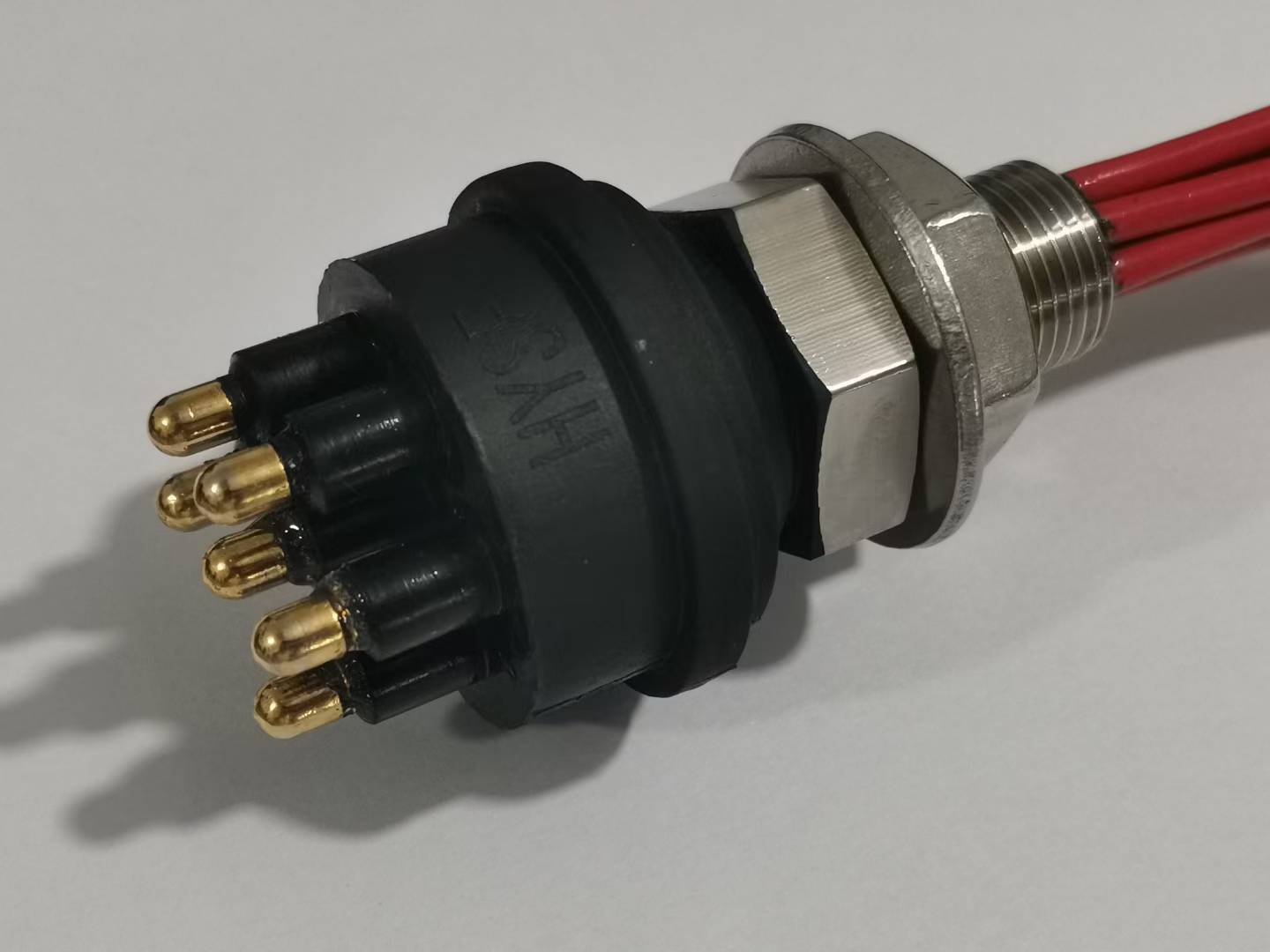

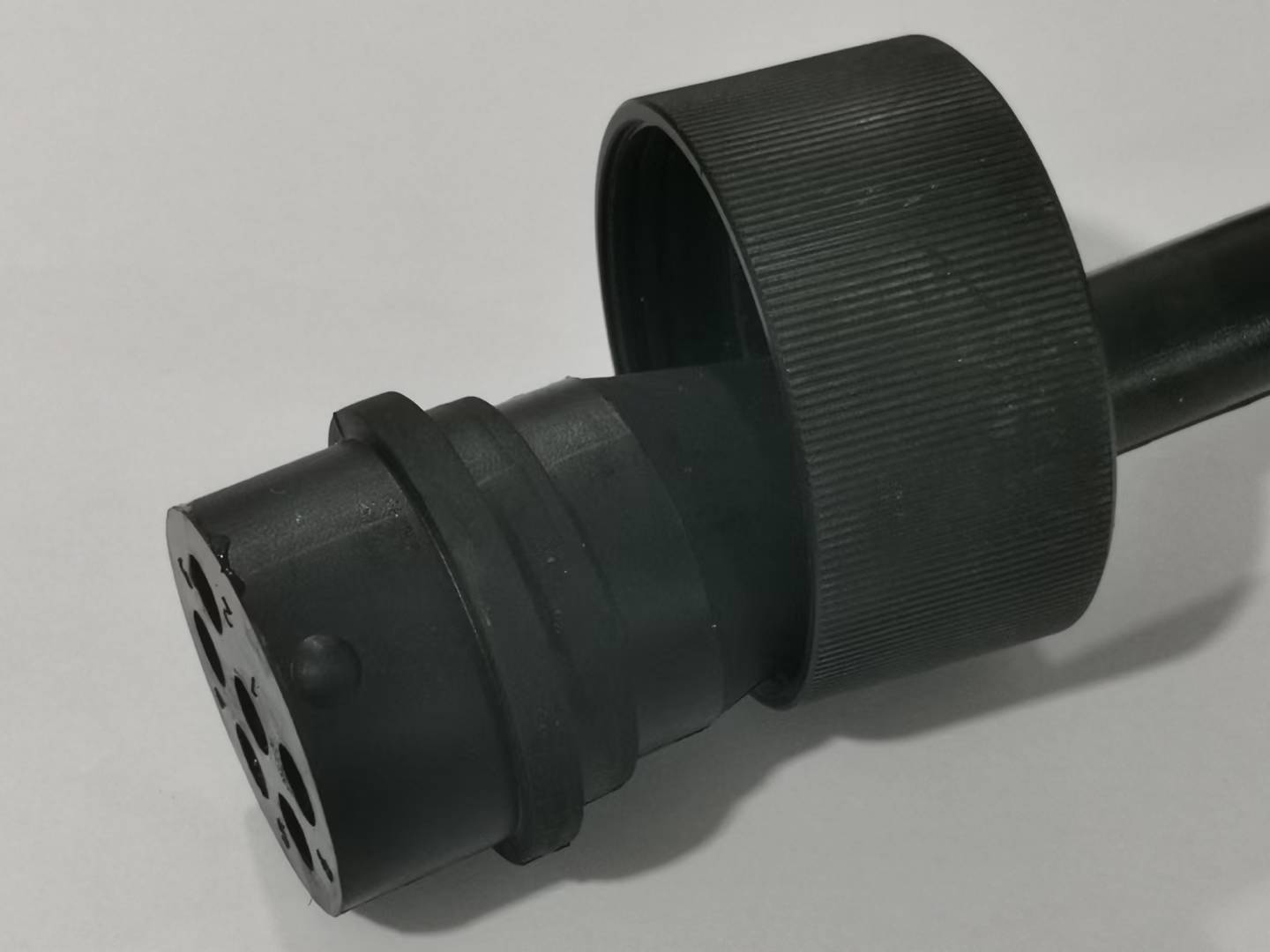

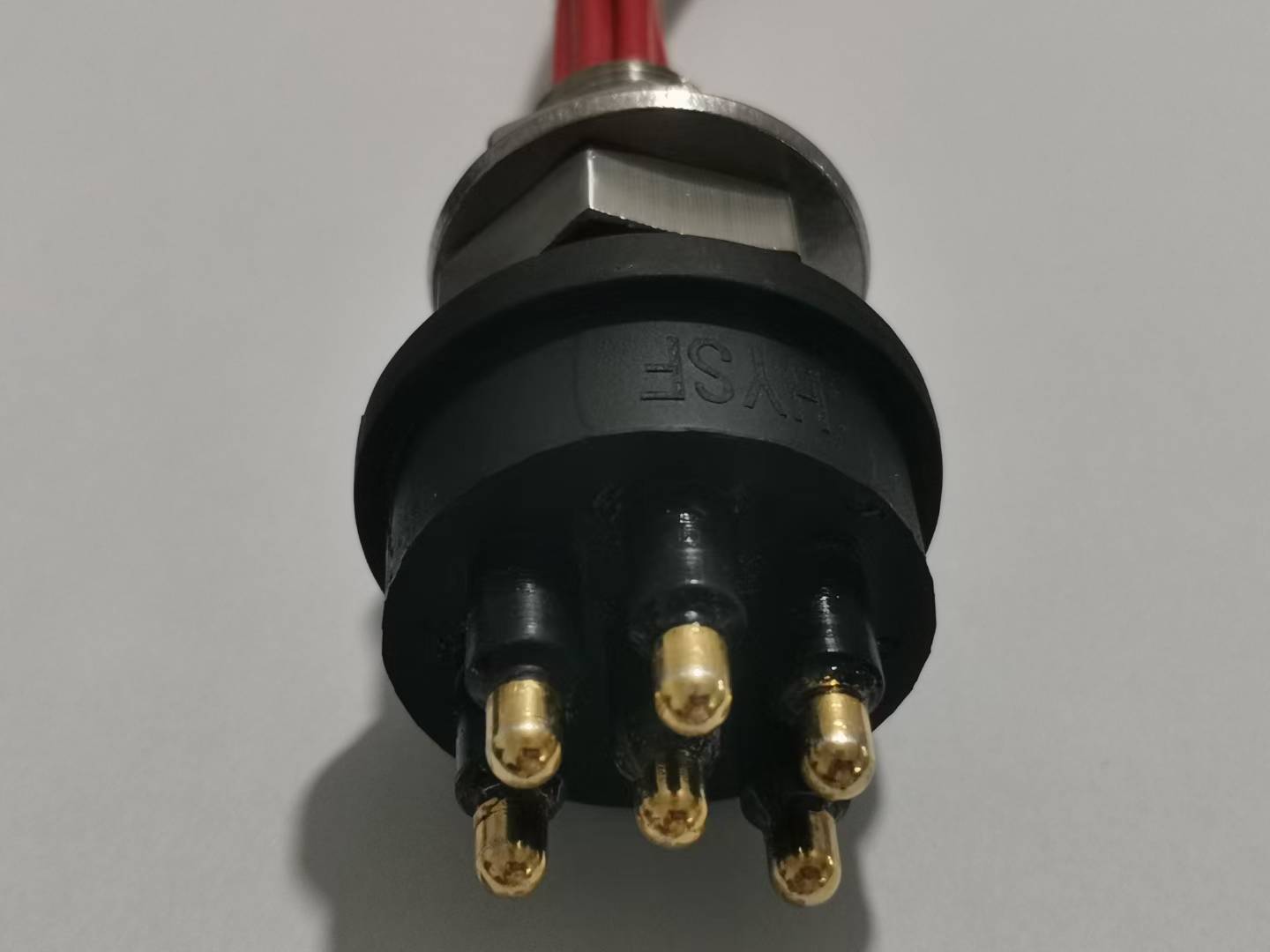

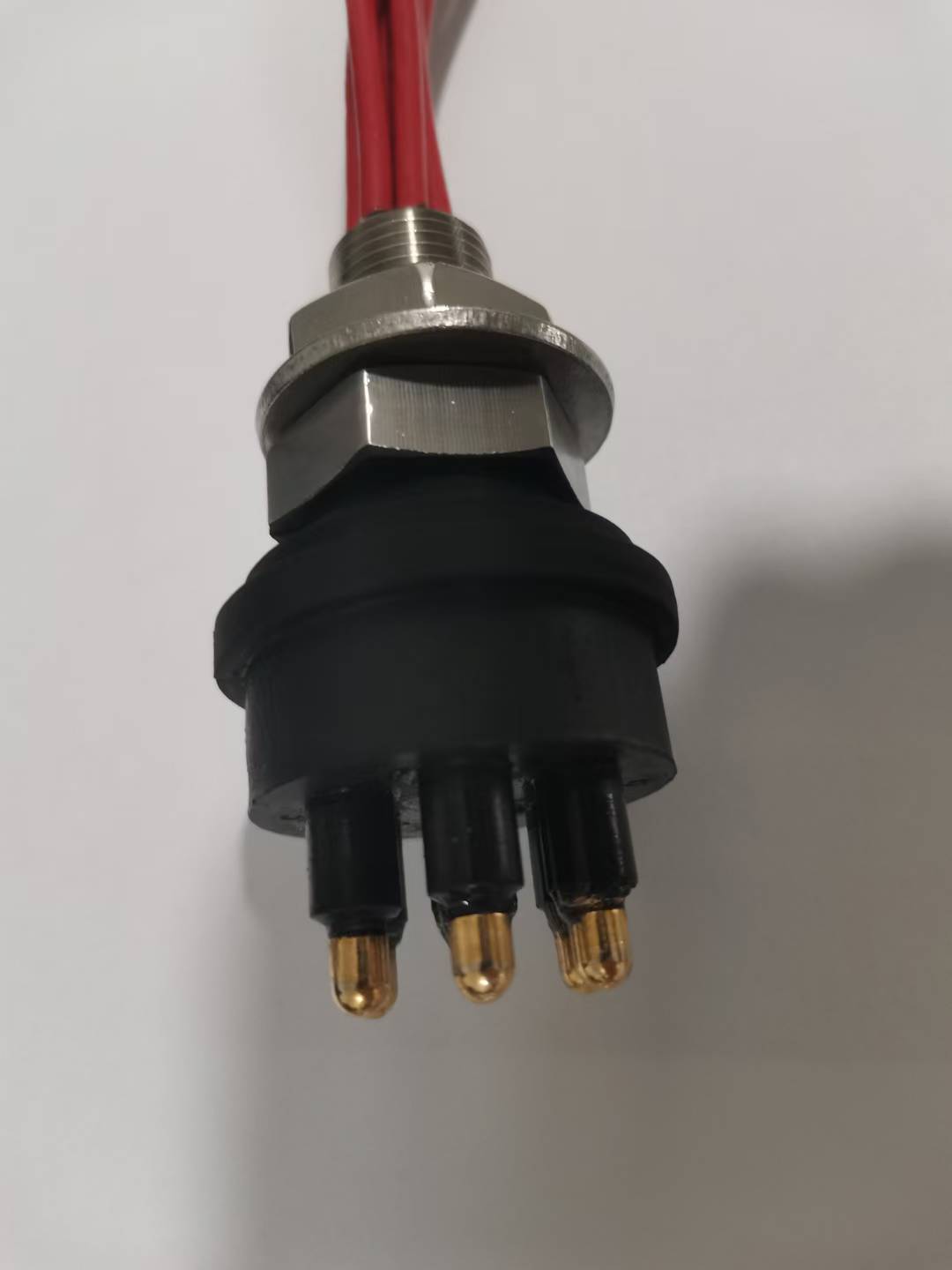

HYSF MGBH6M/F 6-Pin High-Current Underwater Connector (Custom 40A per Pin)

Product Description

The HYSF MGBH6M/F is a successfully customized 6-pin underwater connector from the MGBH Series, engineered for high-current demands with each pin rated at 40A. Featuring a robust inline male design with red overmolded cable and stainless steel threading, it's optimized for power-intensive subsea operations including ROV propulsion systems, underwater welding tools, and offshore power hubs.

Built with corrosion-resistant stainless steel housing, gold-plated high-amperage brass contacts, and marine-grade polyurethane overmolding, it ensures exceptional durability and low-resistance connections in saltwater environments. Supports DC power transmission, IP68 waterproofing, and mated pressure up to 10,000 PSI (689 Bar), enabling reliable performance at depths exceeding 6000 meters.

This custom high-power solution was developed to meet client specifications for compact, high-capacity connectivity. HYSF offers full customization in pin rating, cable specs, and mating configurations. ISO9001-2015 certified and proven in demanding marine deployments for seamless power delivery.

Product Parameter

Model: MGBH6M/F

Brand: HYSF

Type: Inline High-Current Underwater Connector (Custom)

Gender: Male Inline

Pins: 6 Pin

Current Rating: 40A per Pin

Thread Standard: 3/4-20 UNF-2A (MGBH Standard)

Housing Material: Stainless Steel

Contact Material: Gold-plated Brass (High-Amperage)

Waterproof Rating: IP68

Mated Pressure Rating: Up to 10,000 PSI (689 Bar)

Depth Rating: Up to 6000m+

Interface Type: DC Power Compatible

Application: ROV Thrusters, Subsea Power Distribution, Underwater Tools, Marine Heavy-Duty Systems

Certification: ISO9001-2015

Customization: Current rating, cable overmolding, pin configuration, strain relief

Compatibility: MGBH Series mating with female bulkhead/inline

Place of Origin: Guangdong, China
