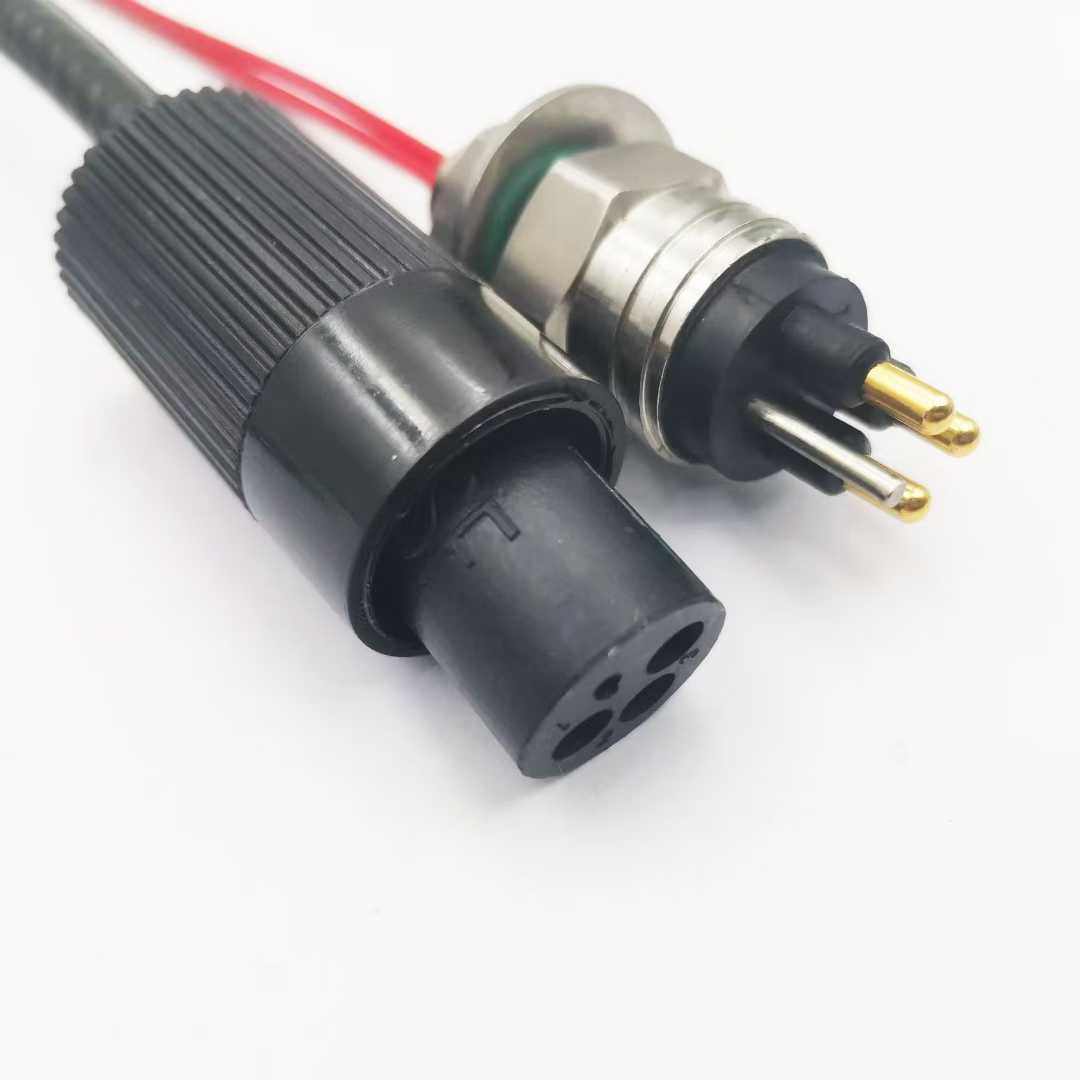

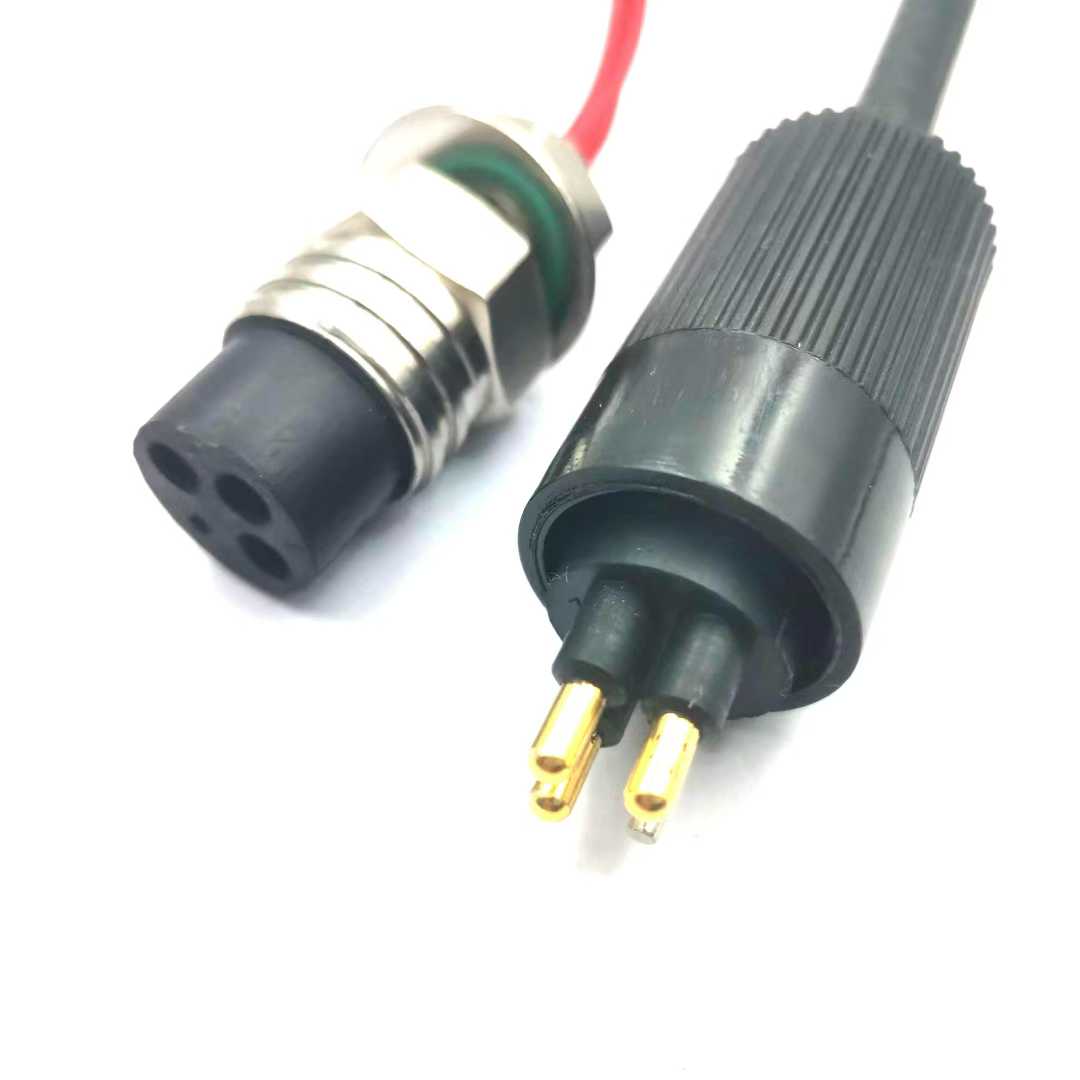

HYSF MICRO-3P-70MPa Mini 3-Pin Waterproof Connector (70 MPa, Neoprene Plug)

Product Description

The HYSF MICRO-3P-70MPa is a **successfully customized micro waterproof connector** engineered for extreme deepwater applications. Featuring **3 gold-plated pins** in a **Ø12 mm ultra-compact body**, it combines a **316L stainless steel bulkhead** with a **chloroprene rubber (Neoprene/CR) overmolded plug** for superior flexibility, abrasion resistance, and chemical stability in saltwater.

Pressure-rated to **70 MPa (10,152 PSI / ~7000 m depth)**, it uses **double O-ring sealing** (face + radial) and **epoxy-potted contacts** for zero leakage under full ocean crush. The Neoprene plug ensures smooth mating/unmating even in cold, high-pressure conditions. Red PTFE flying leads on the bulkhead side allow direct PCB soldering.

This mini 3-pin solution was developed for space-constrained subsea electronics requiring high reliability. HYSF offers full customization in pin count (2–4), current rating, thread size, and lead configuration. ISO9001-2015 certified and hyperbaric-tested for 7000m+ missions.

Product Parameter

Model: MICRO-3P-70MPa

Brand: HYSF

Type: Mini 3-Pin Waterproof Connector (Neoprene Plug)

Gender: Female Bulkhead → Male Neoprene Plug

Pins: 3 Pin (2–4 Pin Custom)

Current Rating: 5A per Pin

Voltage Rating: 300V AC/DC

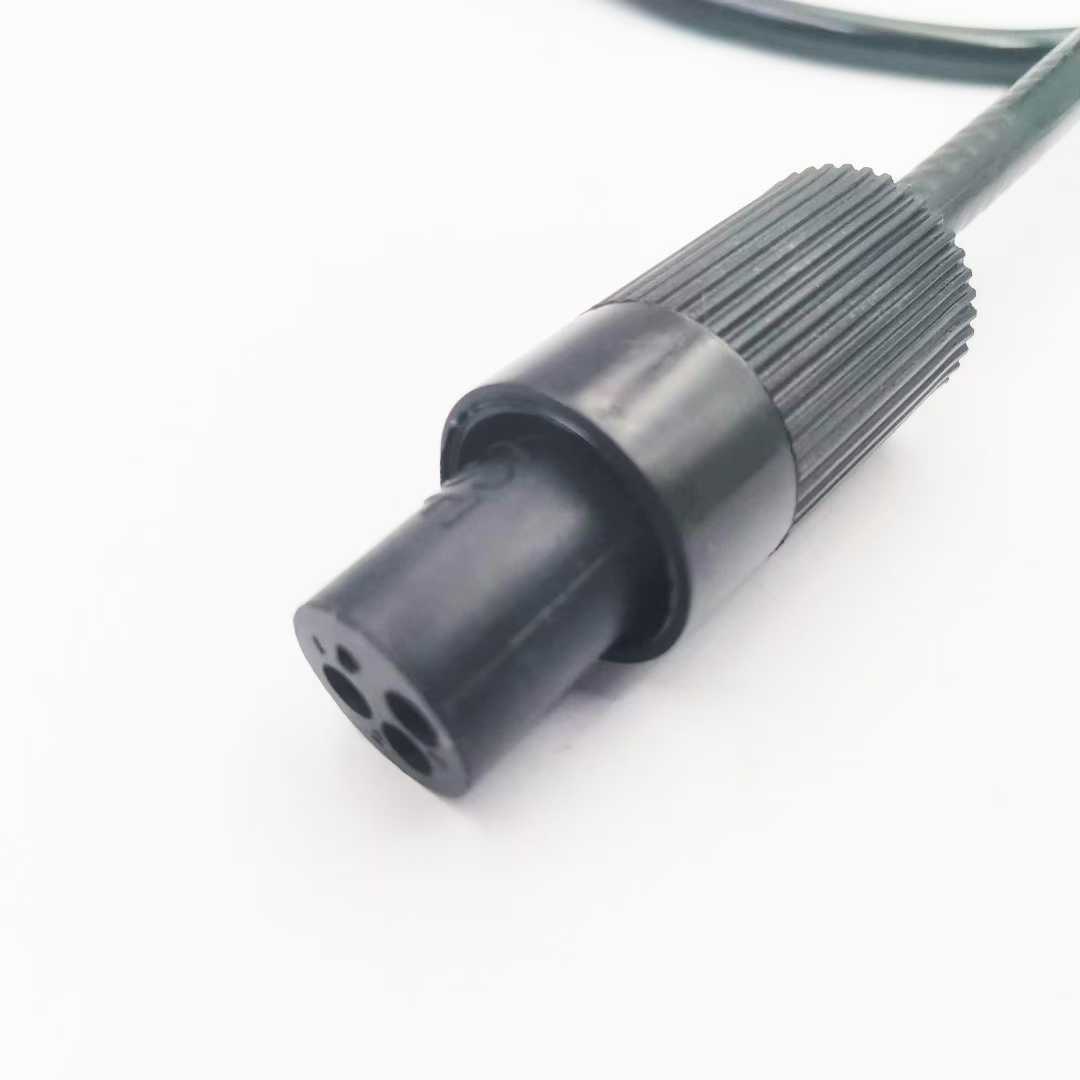

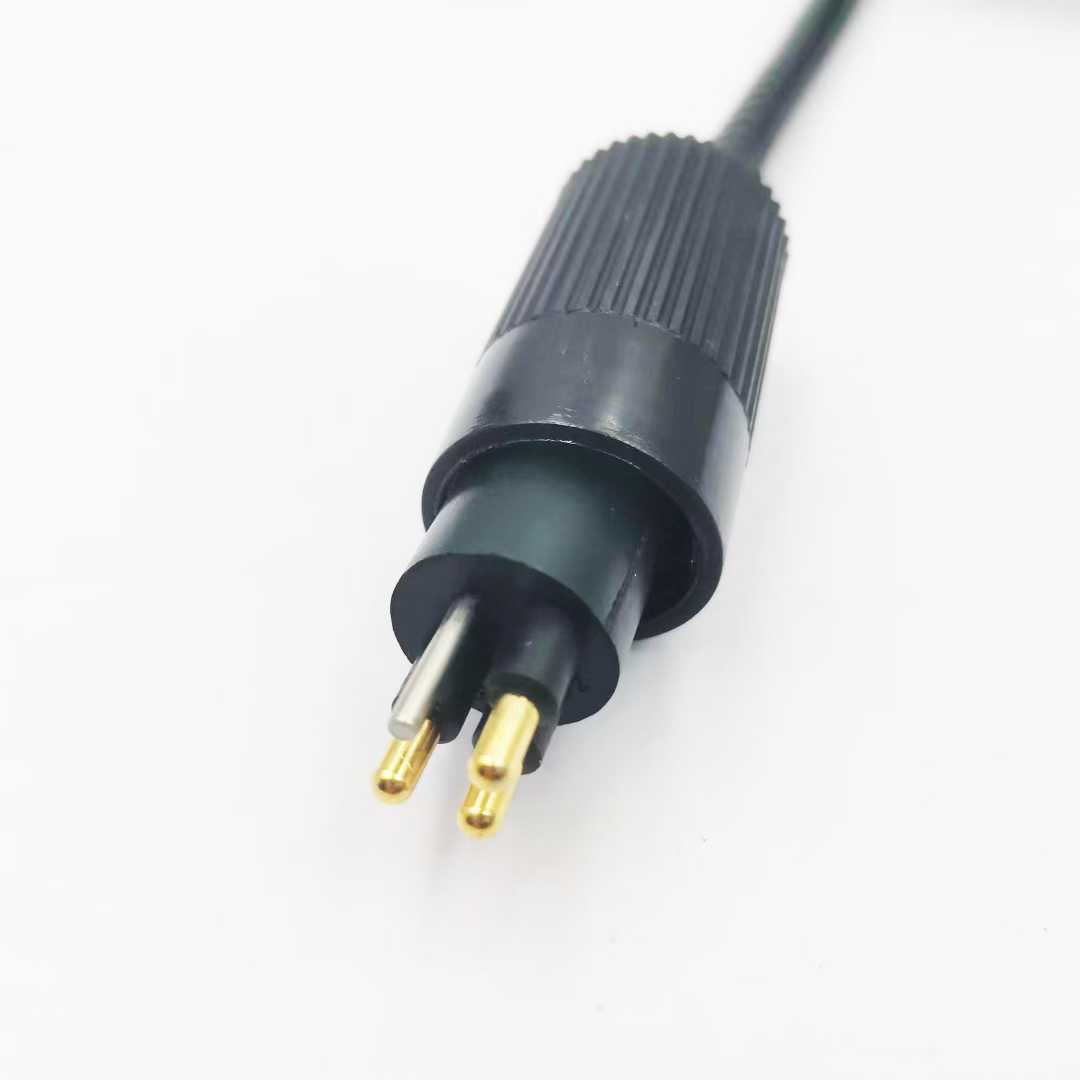

Plug Material: Chloroprene Rubber (Neoprene/CR) Overmold

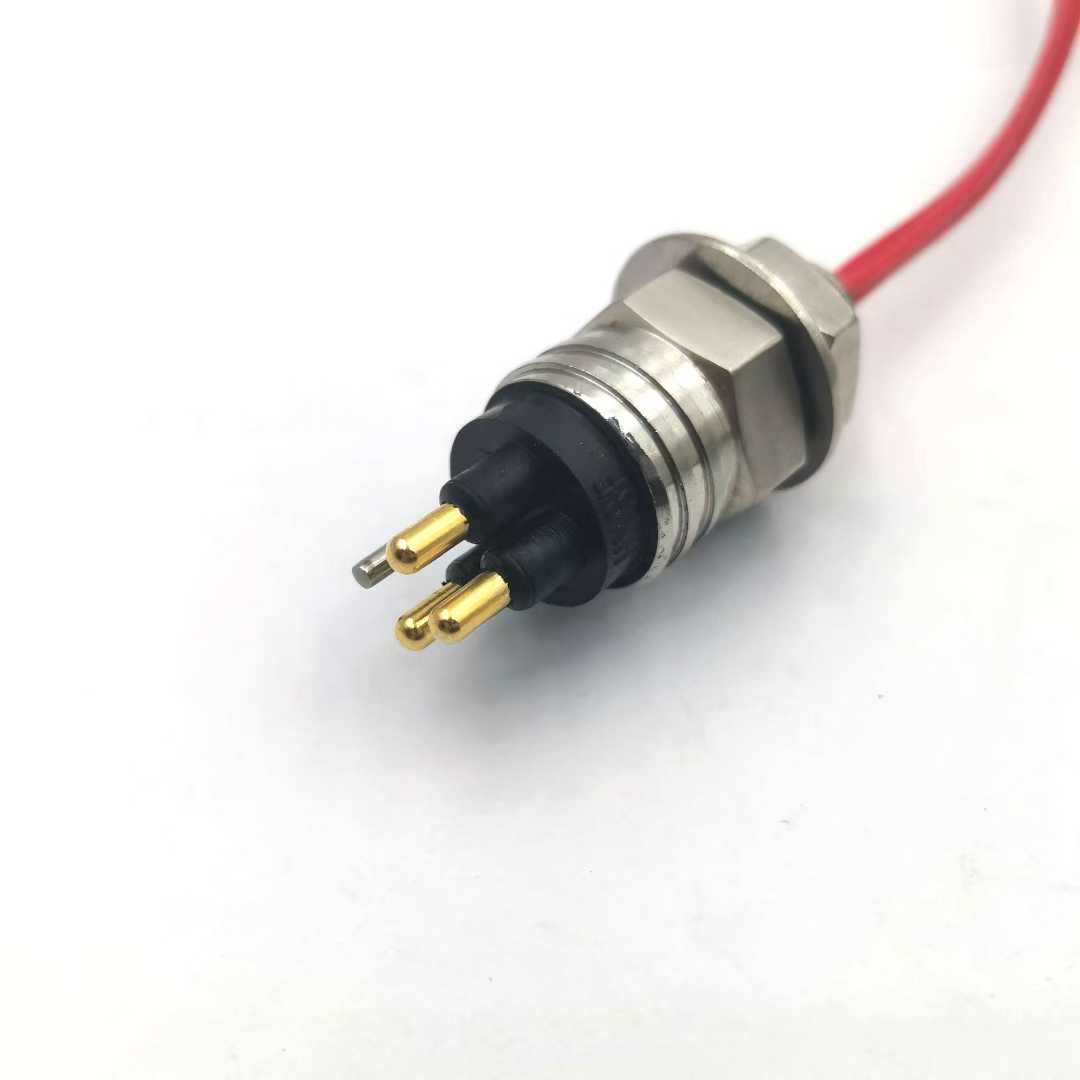

Bulkhead Material: 316L Stainless Steel

Contact Material: Gold-plated Brass

Sealing: Double O-Ring + Epoxy Potting

Thread: M12×1 (Panel Mount)

Leads: Red PTFE-Insulated, Pre-Stripped

Pressure Rating: 70 MPa (10,152 PSI / ~7000 m)

Waterproof Rating: IP68

Operating Temperature: -20°C to 80°C

Dimensions: Ø12 x 45 mm (Mated)

Application: Micro ROV Sensors, AUV Compact Modules, Deepsea Pressure Pods, Mini Instruments

Certification: ISO9001-2015

Customization: Pin count, current, thread, lead length, dummy plug

Features: Neoprene for Cold Flexibility, Hyperbaric Tested

Place of Origin: Guangdong, China
