HYSF MICRO-WP-2-28 Custom Ultra-Mini Waterproof Connector (2–28 Pins, 60 MPa)

Product Description

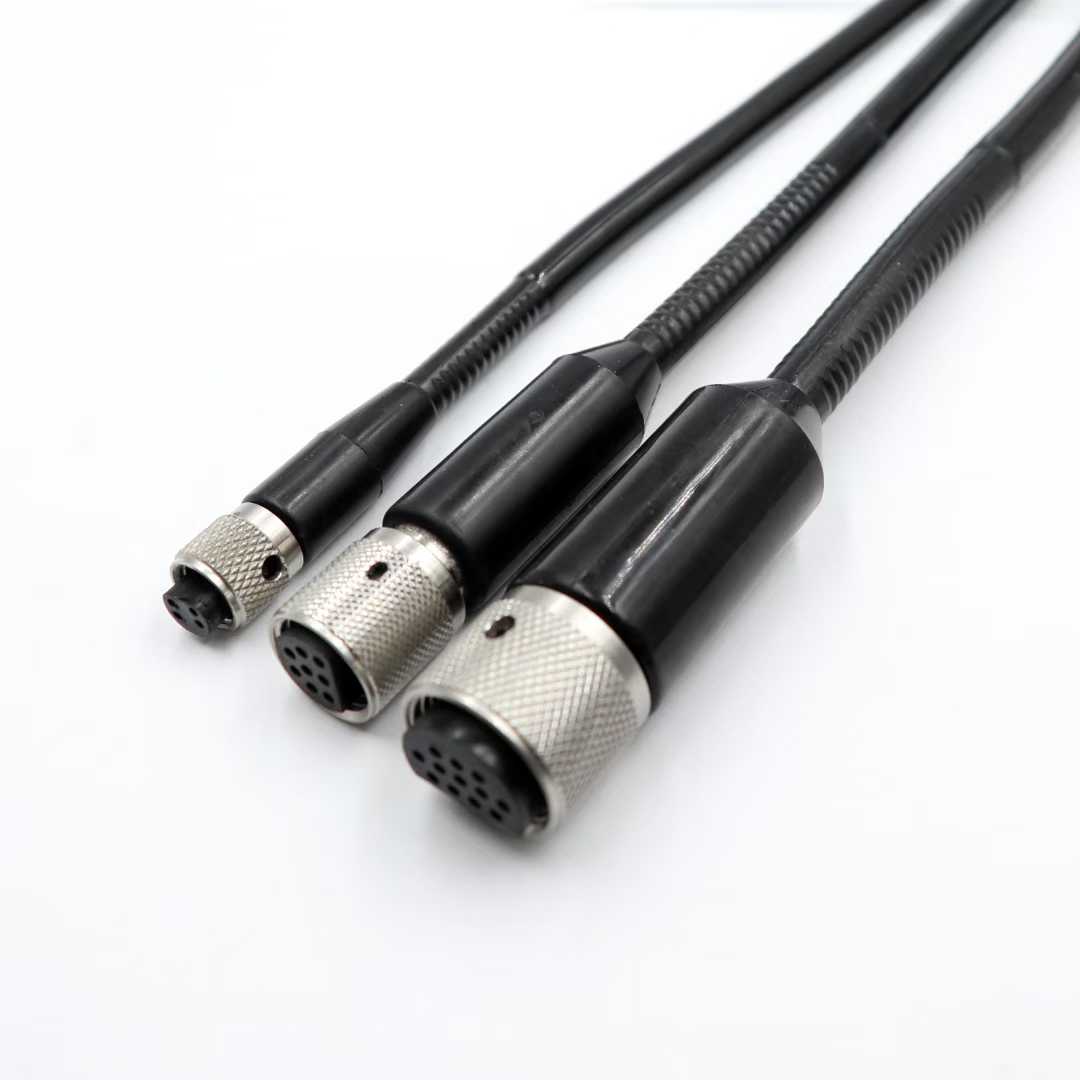

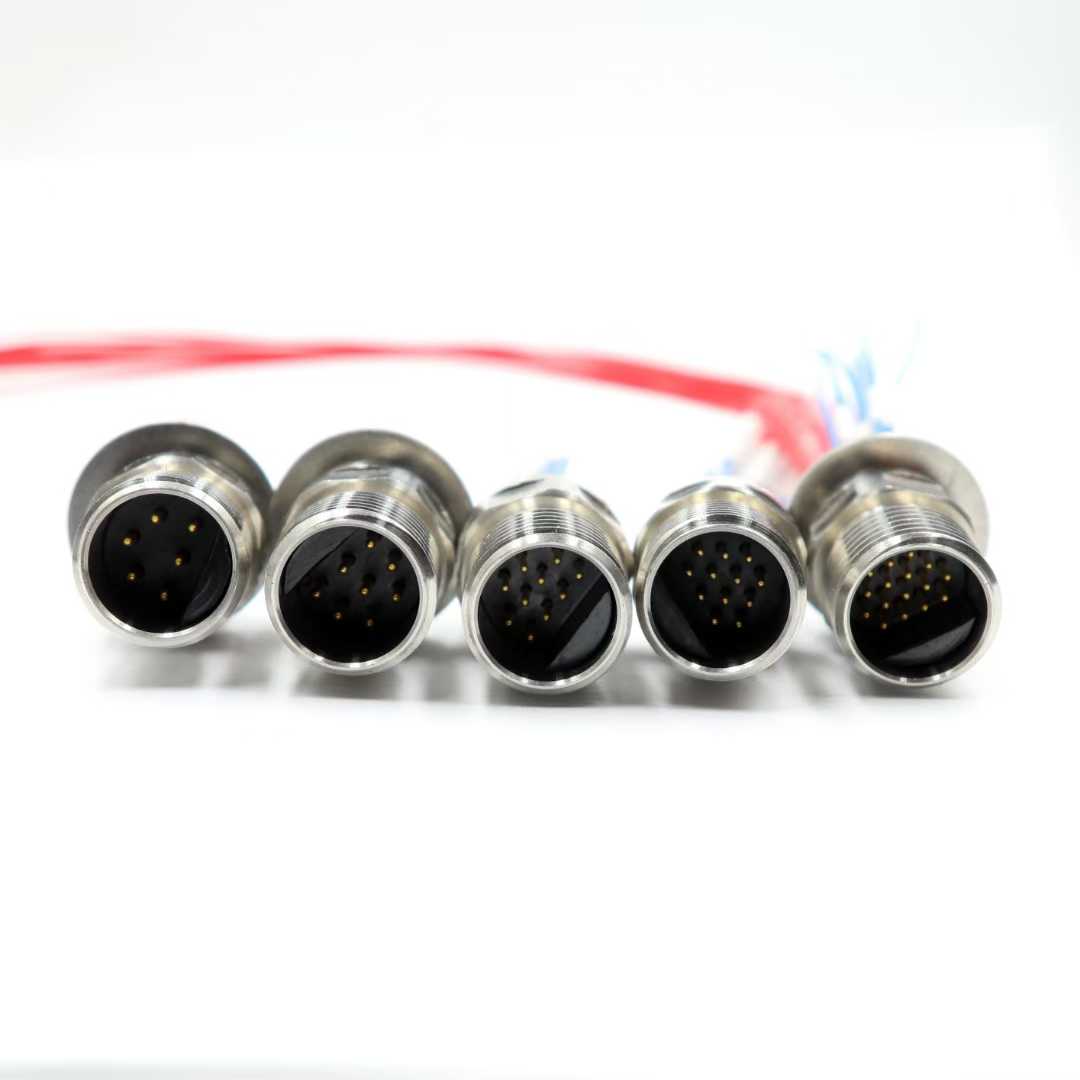

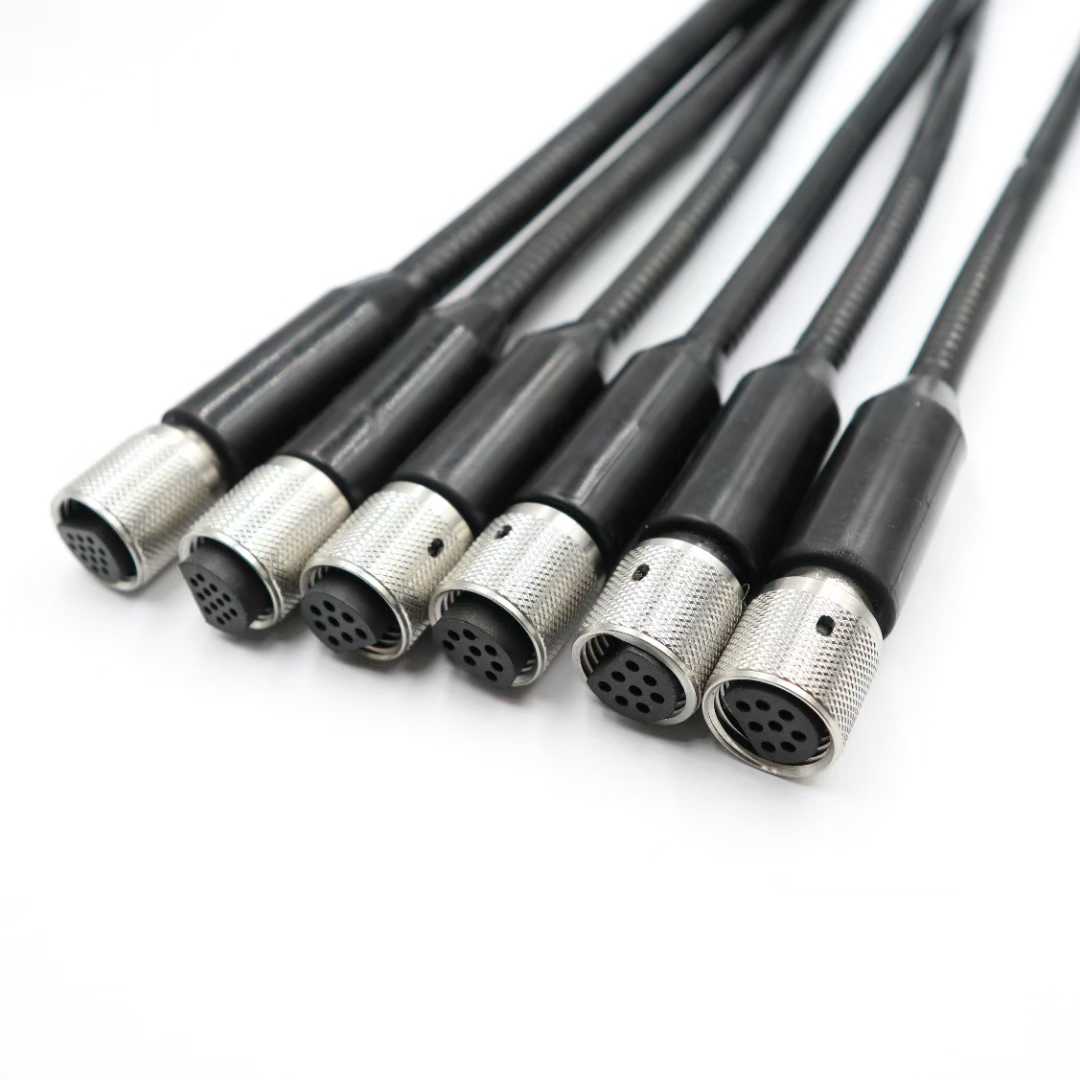

The HYSF MICRO-WP-2-28 is a **successfully customized ultra-mini waterproof connector series** designed for space-constrained subsea applications. Supporting **2 to 28 pins** in a compact **Ø15 mm x 40 mm mated length**, it delivers high-density connectivity without sacrificing performance—perfect for micro-ROV camera feeds, AUV multi-sensor interfaces, and miniaturized deepsea instruments.

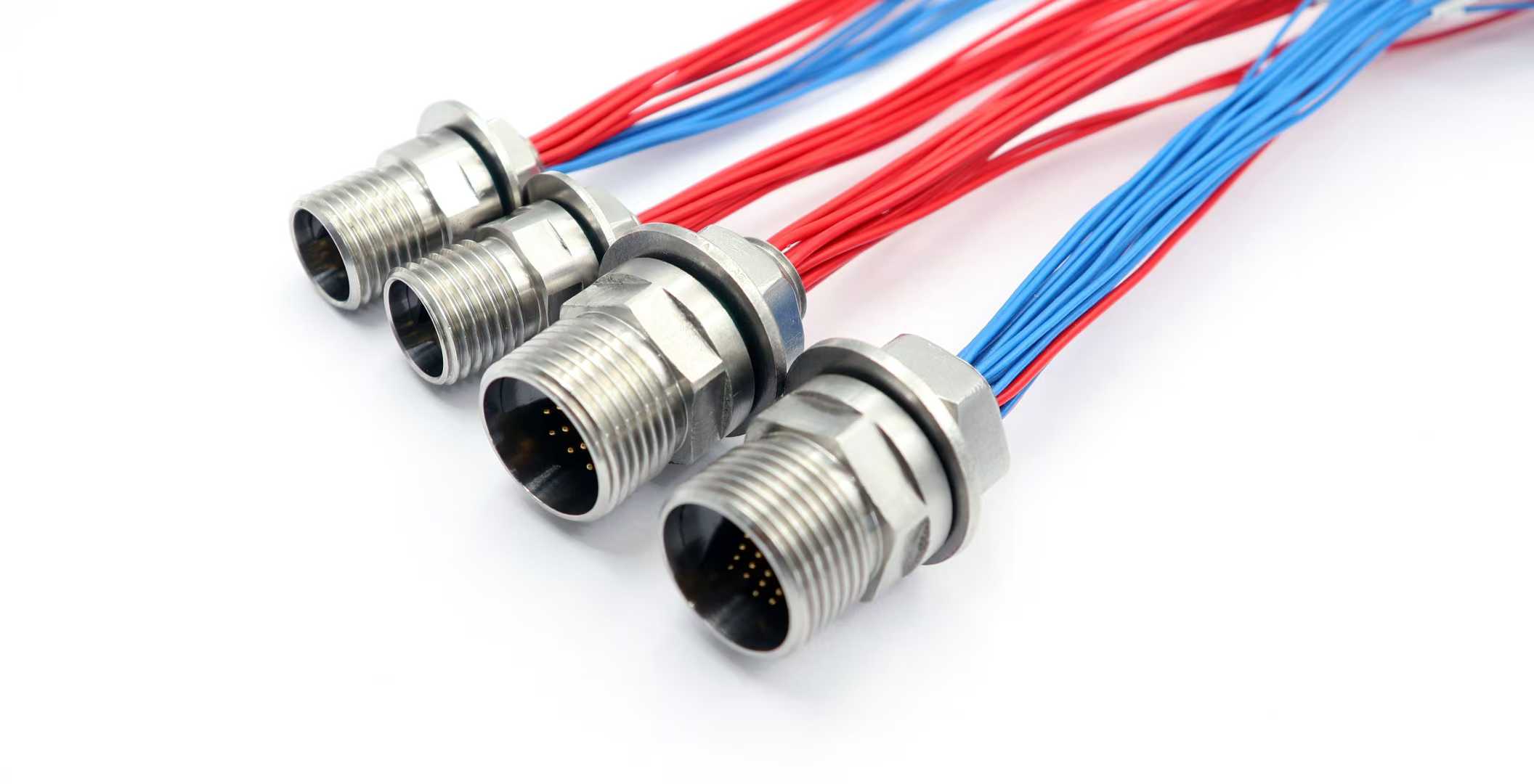

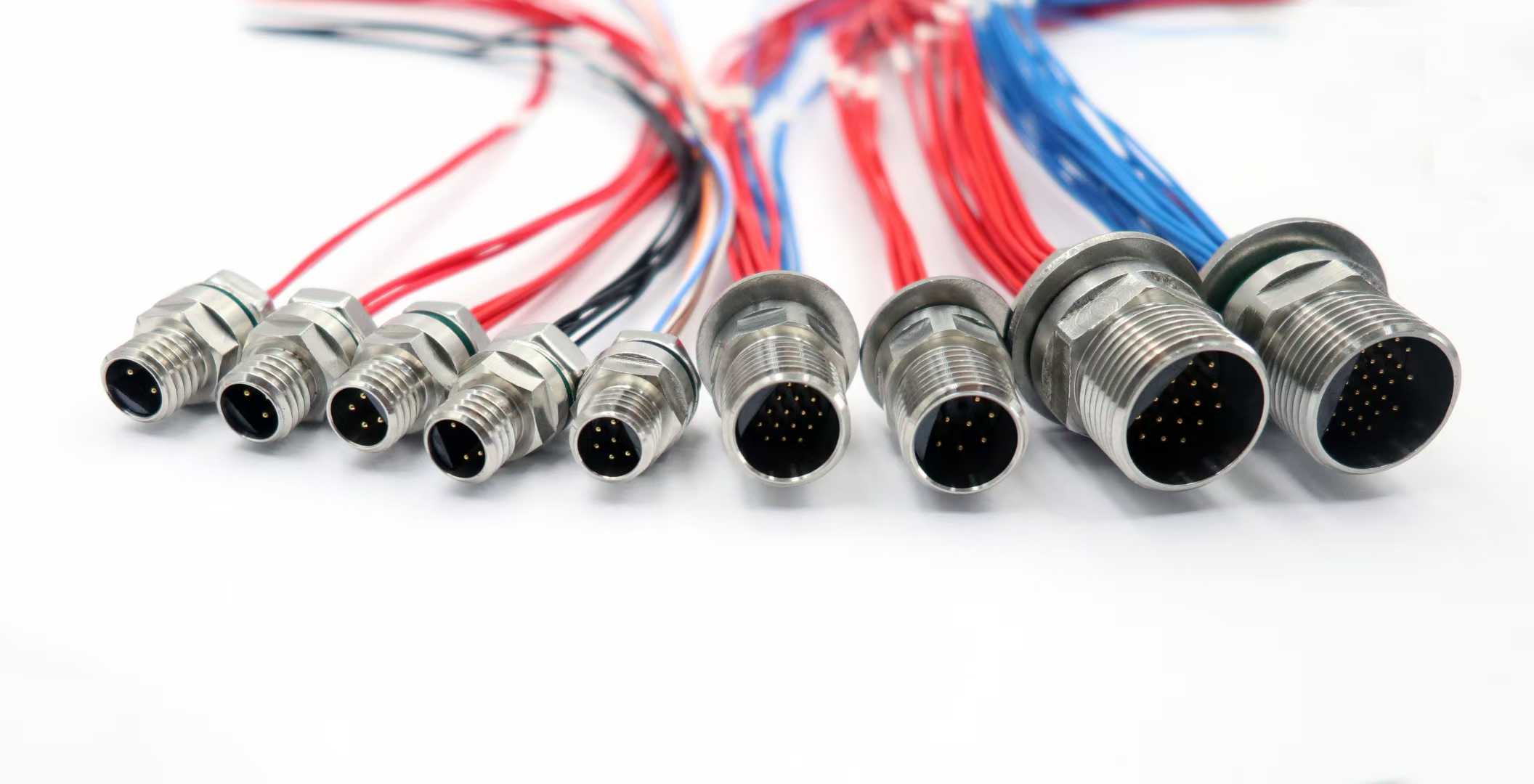

Precision-machined from **anodized aluminum** or optional titanium, with **gold-plated brass contacts** and **triple O-ring sealing** in Viton for ultimate pressure integrity. Color-coded flying leads (red/blue/yellow/white) enable quick wiring. Rated to **60 MPa (8702 PSI / ~6000 m depth)**, IP68 sealed, and helium leak-tested for zero-failure reliability.

This scalable mini series was engineered for next-generation compact underwater systems. HYSF offers full customization in pin count, housing material, current rating, and flange mount. ISO9001-2015 certified and proven in micro-submersible deployments.

Product Parameter

Model: MICRO-WP-2-28

Brand: HYSF

Type: Ultra-Mini Waterproof Connector Series

Pin Count: 2–28 Pins (Scalable)

Housing Material: Anodized Aluminum (Titanium Optional)

Contact Material: Gold-plated Brass

Current Rating: 2A–5A per Pin (Model-Dependent)

Voltage Rating: 250V AC/DC

Sealing: Triple Viton O-Ring

Dimensions: Ø15 mm x 40 mm (Mated)

Mounting: Optional Flange or Inline

Leads: Color-Coded PTFE Flying Leads

Waterproof Rating: IP68

Mated Pressure Rating: 60 MPa (8702 PSI / ~6000 m)

Depth Rating: Up to 6000m+

Operating Temperature: -20°C to 80°C

Interface Type: Mixed Power/Signal

Application: Micro-ROVs, AUV Sensor Arrays, Compact Deepsea Instruments, Miniature Subsea Modules

Certification: ISO9001-2015

Customization: Pin layout, material, current, flange geometry, dummy plugs

Compatibility: Inline or Bulkhead Mating

Place of Origin: Guangdong, China
