HYSF Mini-SEAL-3P is a compact sealed aluminum housing with integrated 3-pin watertight connector. Rated to 40 MPa (5,800 PSI), ideal for ROV electronics, AUV sensor modules, and miniature subsea instruments up to 4000m.

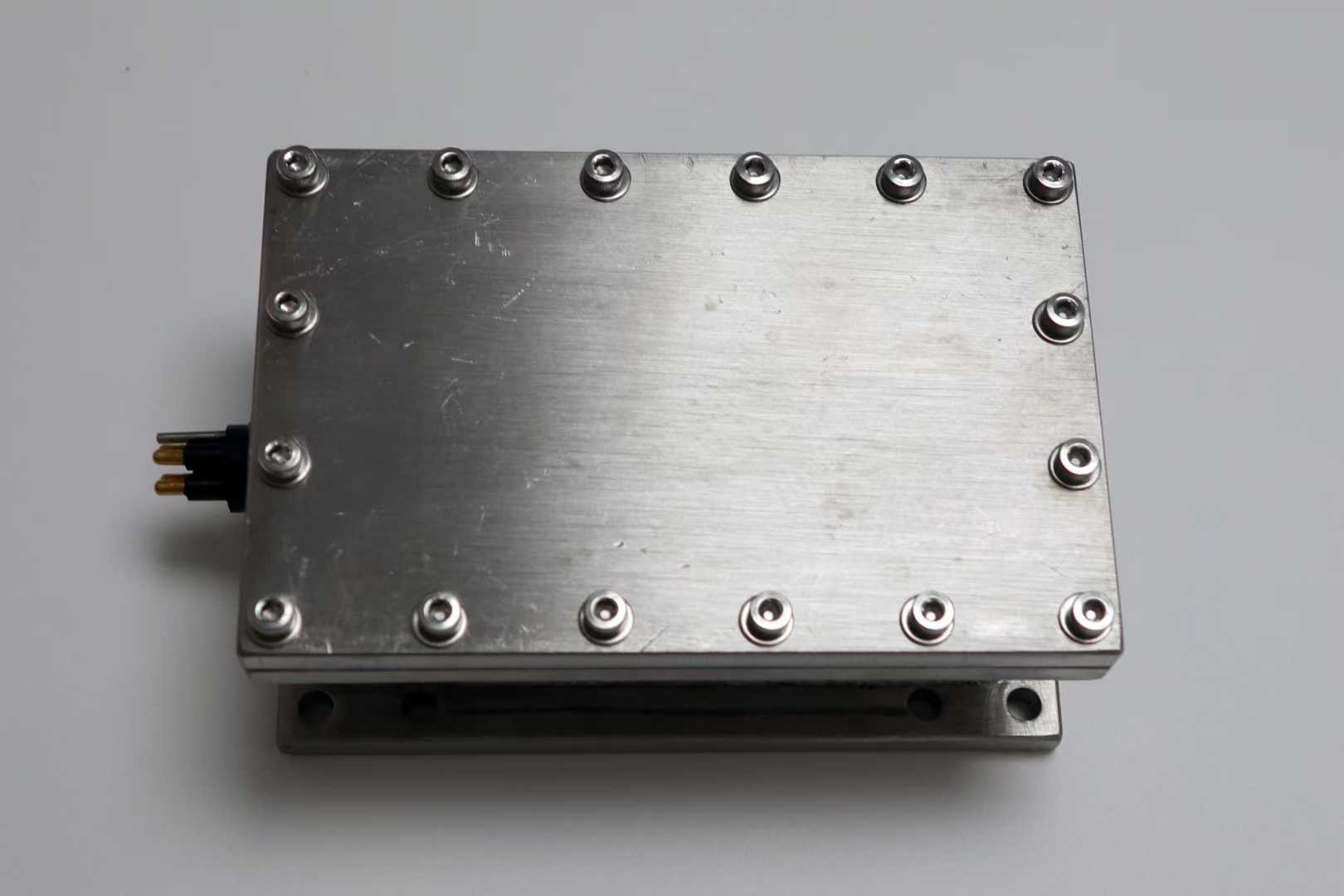

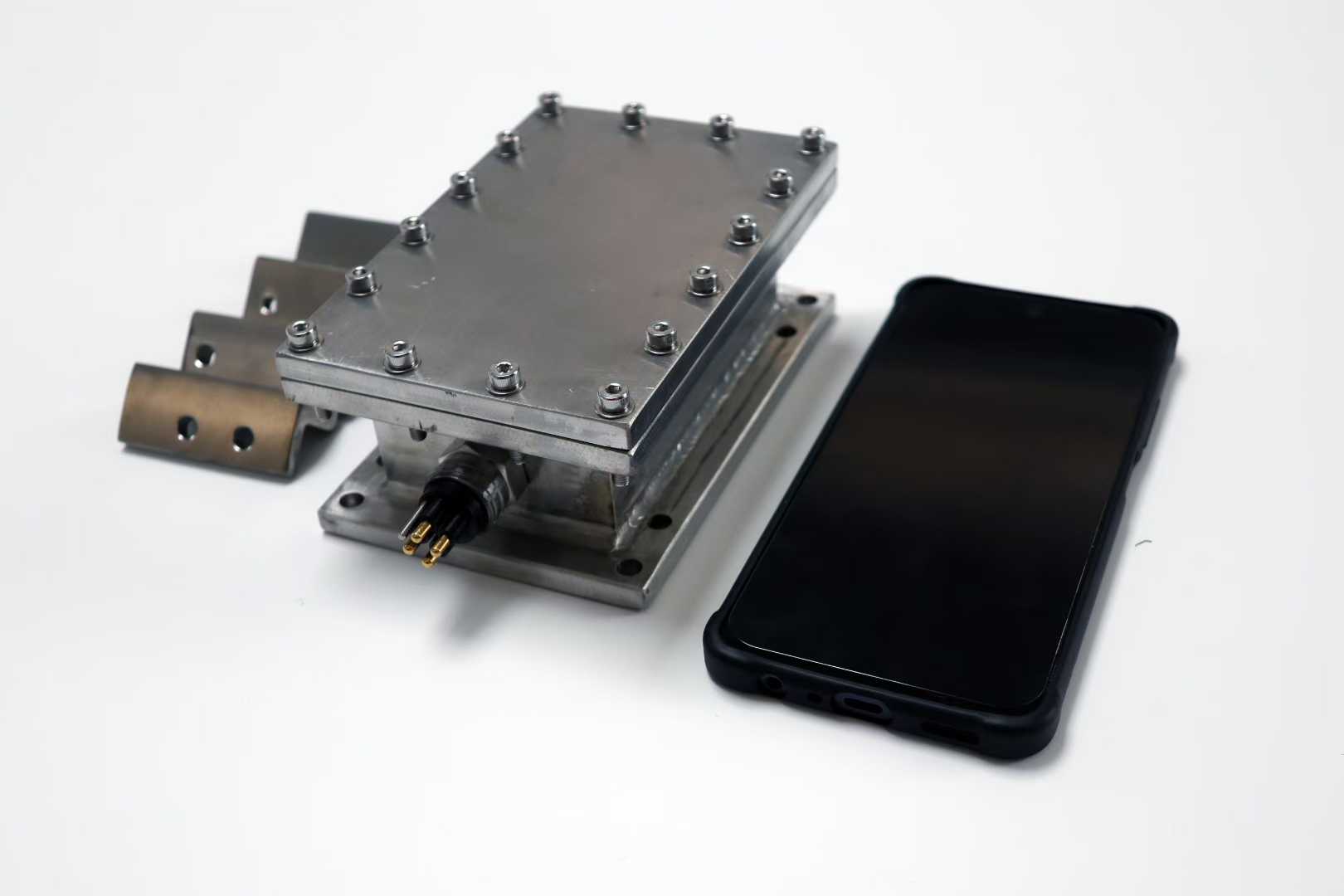

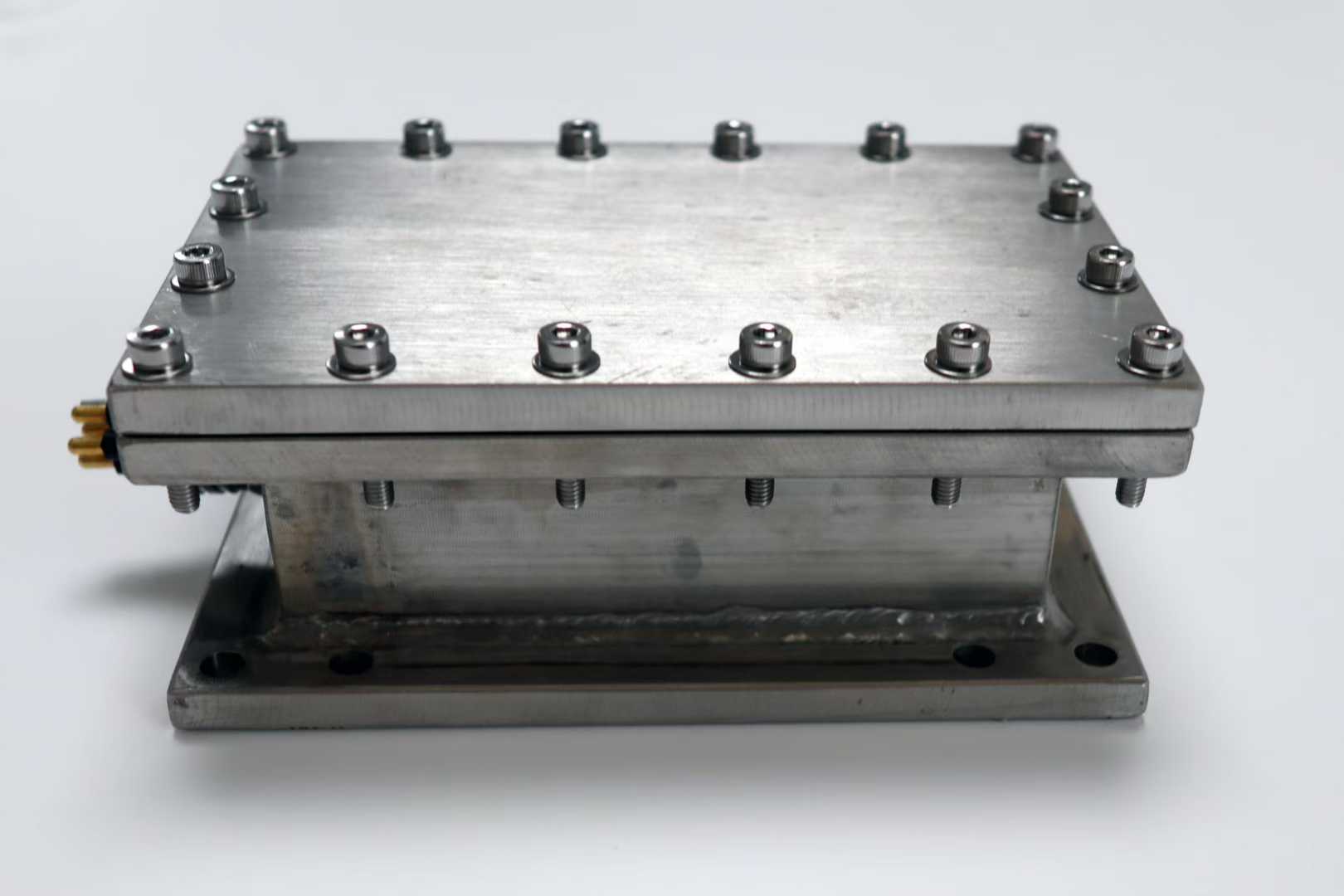

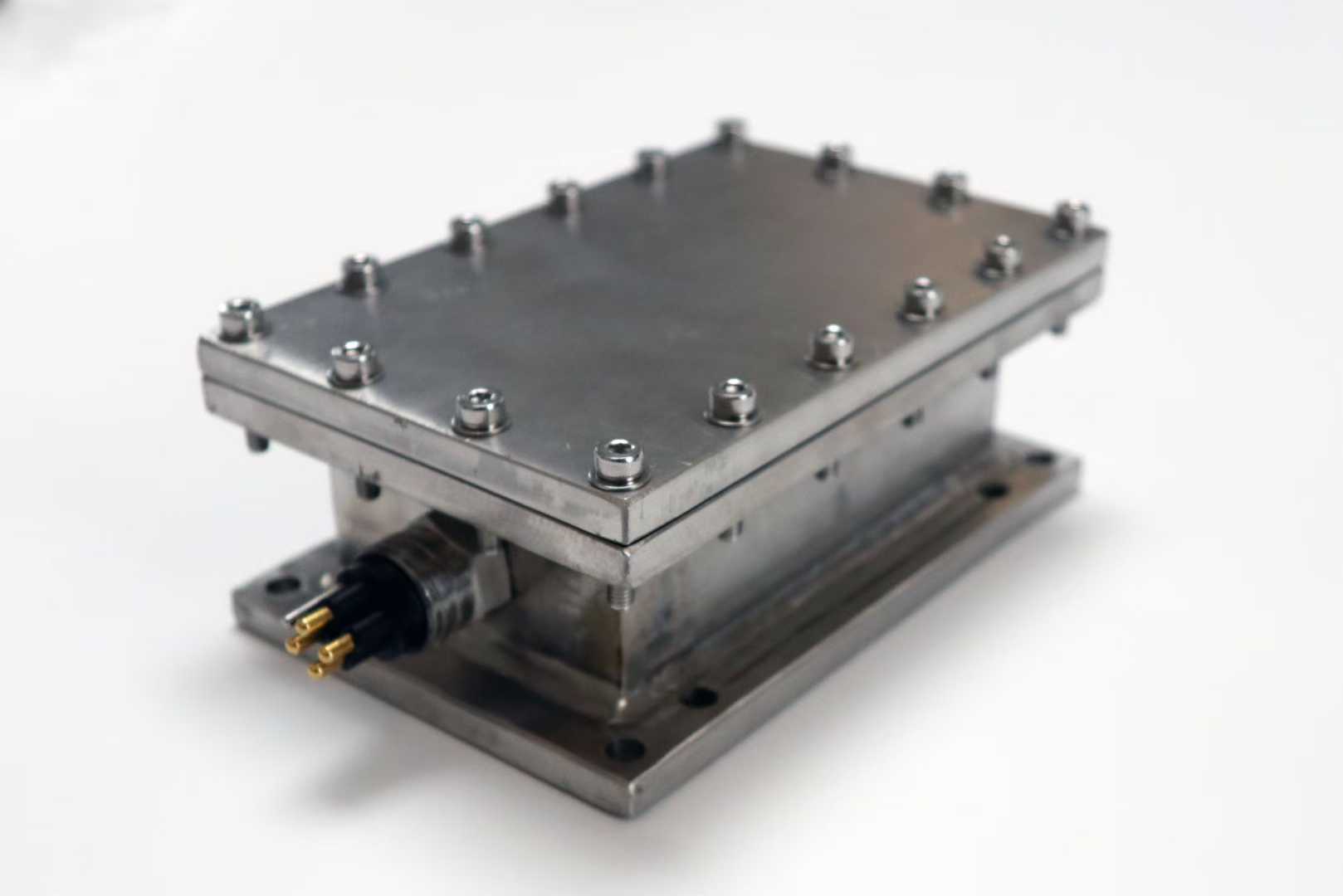

The HYSF Mini-SEAL-3P is a successfully customized miniature sealed underwater housing precision-machined from marine-grade aluminum with a robust bolted lid and O-ring seal. Featuring a pre-installed 3-pin gold-plated watertight connector for power and signal, it's engineered for ultra-compact ROV control boards, AUV sensor payloads, and deepsea data loggers where size and weight are critical.
The housing includes multiple top-mounted M3/M4 threaded inserts for secure internal PCB mounting and external fixture attachment. Anodized for corrosion resistance and pressure-tested to 40 MPa (5,800 PSI / ~4,000m depth), it ensures full IP68 integrity with redundant sealing. The integrated connector supports AC/DC transmission and mates with standard Subconn® MCIL/MCBH series.
This mini sealed cabin was tailored for space-constrained, high-pressure applications requiring reliable electronics protection. HYSF offers full customization in dimensions, connector pin count, mounting patterns, and material (aluminum/titanium). ISO9001-2015 certified and proven in compact subsea deployments.
Model: Mini-SEAL-3P
Brand: HYSF
Type: Custom Small Sealed Underwater Electronics Housing
Internal Dimensions: ~80 x 60 x 30 mm (Customizable)
Connector: Integrated 3-Pin Watertight (Gold-Plated Brass)
Housing Material: Anodized Marine-Grade Aluminum (Optional Titanium)
Lid Fastening: 12x Stainless Steel Bolts with O-Ring Seal
Mounting: Top-Side M3/M4 Threaded Inserts
Pressure Rating: 40 MPa (5,800 PSI / ~4,000m Depth)
Waterproof Rating: IP68
Operating Temperature: -20°C to 80°C
Interface: AC/DC Power & Signal via 3-Pin Connector
Application: ROV Mini Controllers, AUV Sensor Nodes, Compact Data Loggers, Subsea Instruments
Certification: ISO9001-2015
Customization: Size, connector type/pins, mounting layout, vent/valve options
Compatibility: Subconn® MCIL/MCBH 3-pin mating
Place of Origin: Guangdong, China
