MRUC miniature BNC-type IP68 underwater RF connector supports 0–7.5GHz coaxial transmission with gold-plated brass contacts. Ideal for HD video links in ROV, AUV, and underwater camera systems.

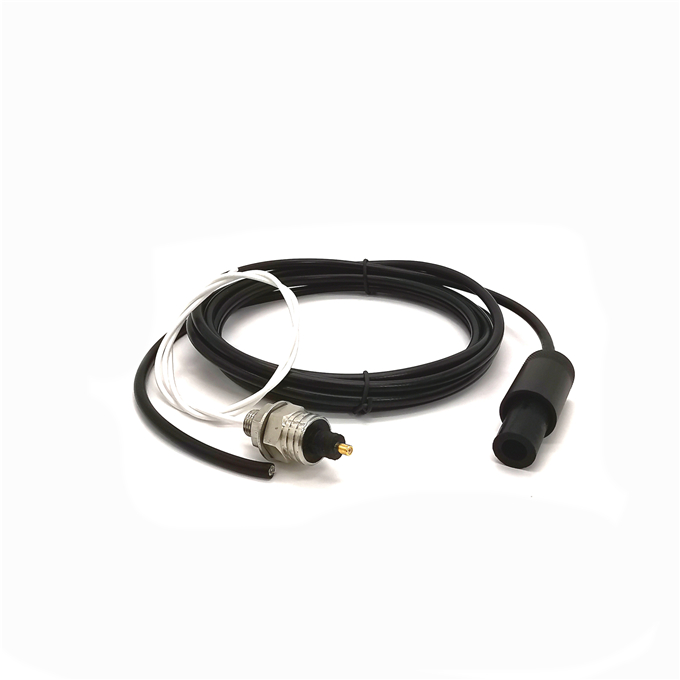

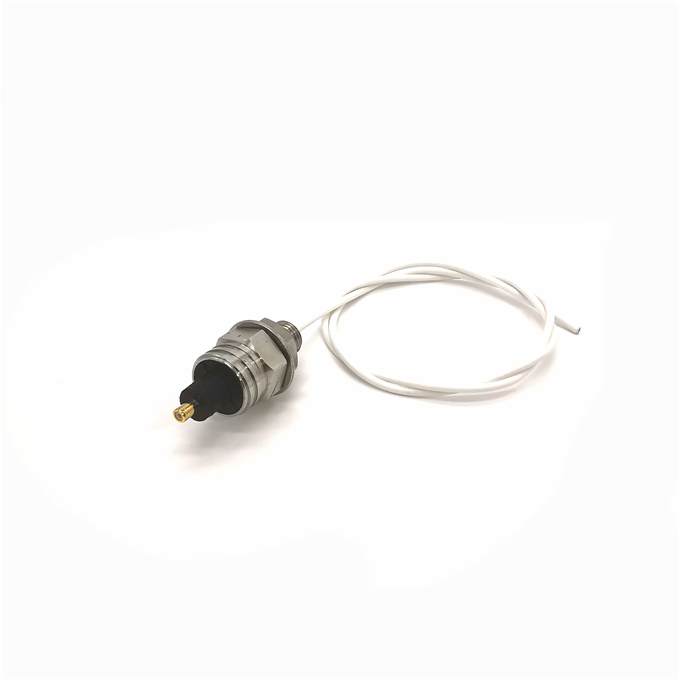

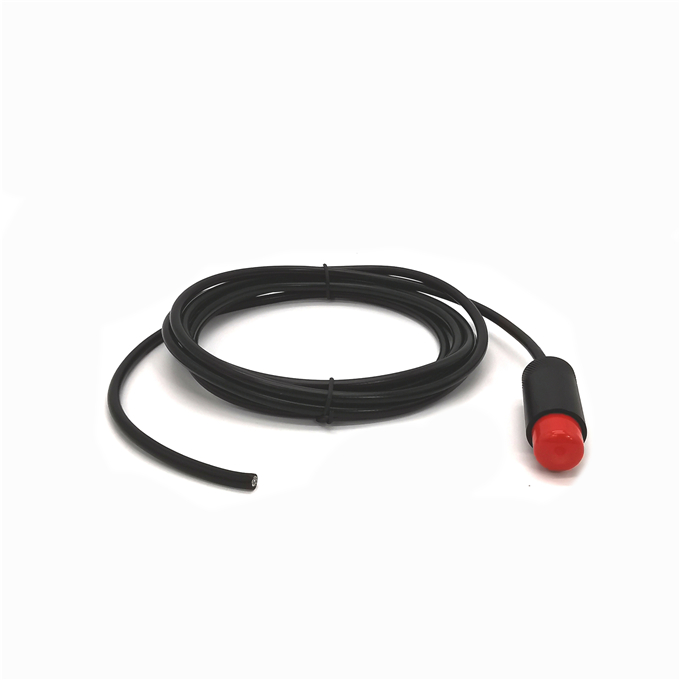

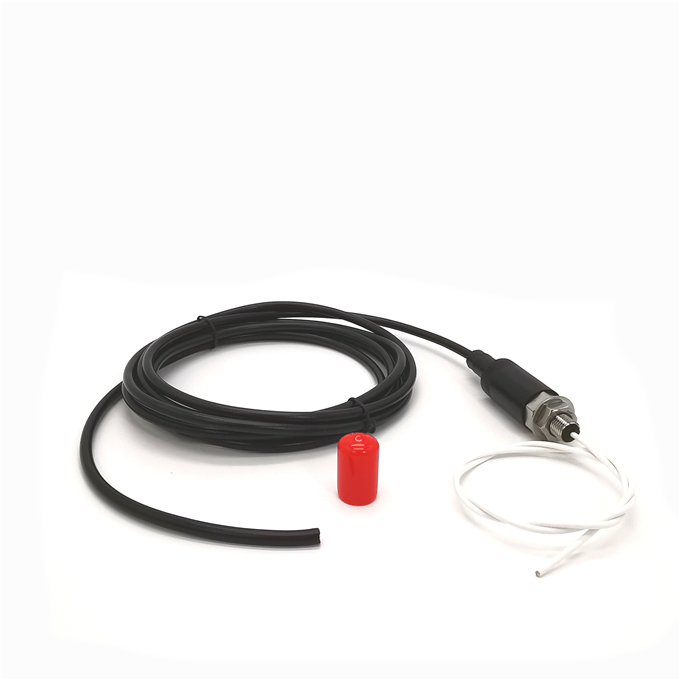

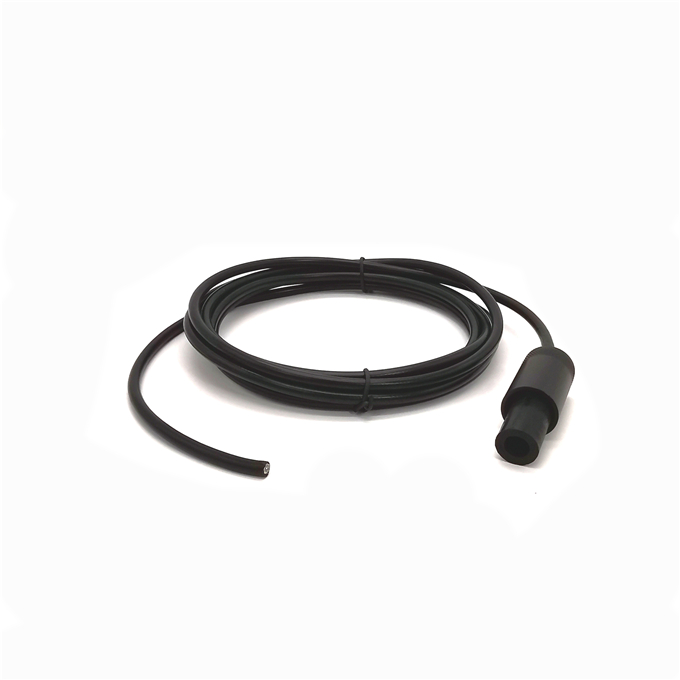

The MRUC RF Coaxial Micro Underwater Connector is a compact, high-frequency BNC-style solution specially built for HD video and RF signal transmission in underwater applications. Ideal for ROVs, AUVs, and marine camera systems, it supports operating frequencies of 0–7.5GHz over RG58 coaxial RF cable. This connector features a robust stainless steel, sea copper, or titanium shell and gold-plated brass contacts for superior signal integrity. With IP68 protection and a depth rating between 100 to 3000 meters, the MRUC ensures reliable performance in harsh marine environments. Comes with full mounting accessories such as locking caps, snap rings, and O-rings.
Brand: HYSF
Model Number: MRUC
Type: Micro BNC-Style Underwater RF Connector
Application: ROV, AUV, underwater HD video, marine RF signal systems
Radio Frequency Range: 0–7.5GHz
Contact Material: Gold-plated brass
Shell Material: Stainless steel, sea copper, or titanium
Sealing Material: Neoprene
Cable Type: RG58 coaxial RF cable
Cable Tensile Strength: 50kg
Waterproof Rating: IP68
Working Depth: 100m to 3000m
Gender: Male and Female
Standard Accessories: Snap ring, locking cap, O-ring, washer, nut
Place of Origin: Shandong, China
Certification: TUV, CE, CCC
MOQ: 1 set
