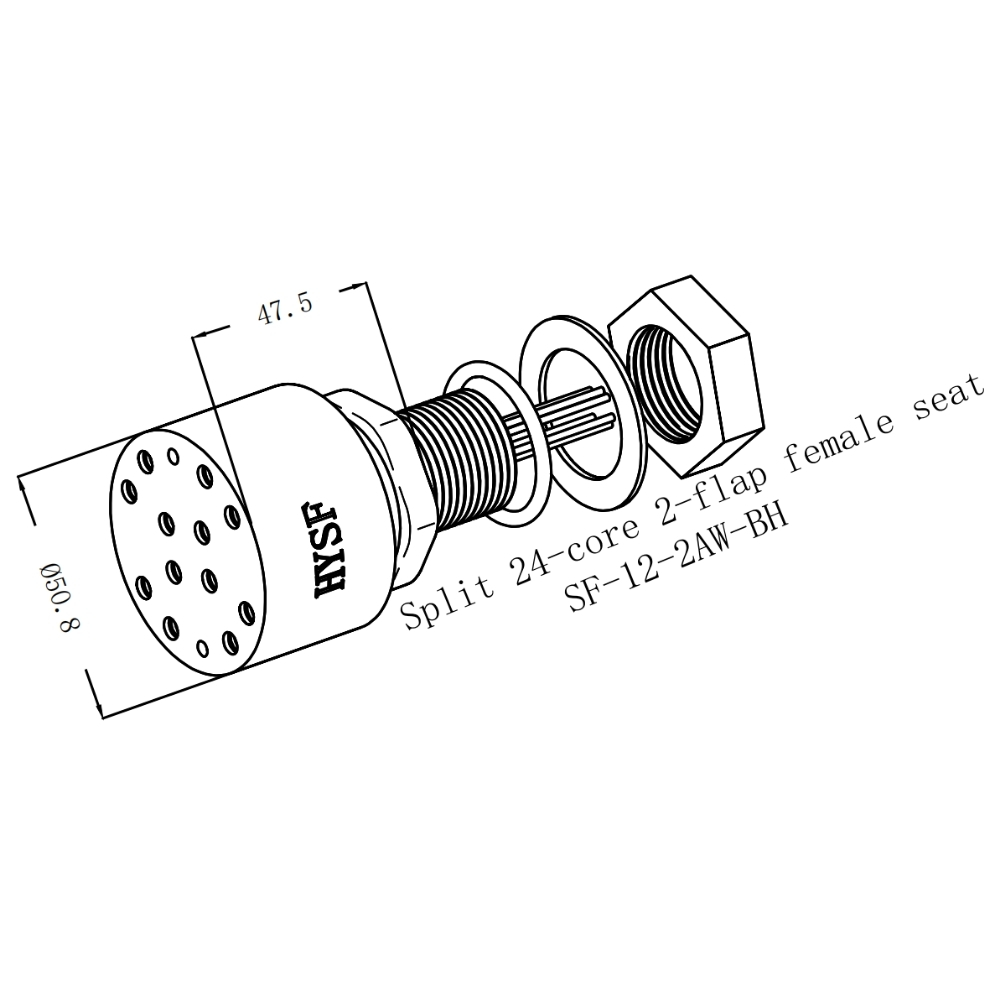

HYSF SF-12-2AW-BH is an ultra-high-density 24-core split petal female bulkhead connector with 2-flap alignment for reliable wet-mate connections. IP68 rated, 60 MPa tested, designed for extensive multi-channel power, signal and data feedthroughs in large ROVs, complex sensor arrays, advanced lighting systems and deepsea hybrid applications up to 6000 m.
The HYSF SF-12-2AW-BH features advanced split petal contact technology with dual flap alignment for exceptional wet-mate reliability and simplified ROV manipulator handling. Large robust bulkhead mount with 47.5 mm body length and threaded mounting for heavy-duty installations.
Precision gold-plated brass contacts in 24-core high-density configuration, fully sealed with double O-rings. Supports extensive mixed power/signal/data channels in compact diameter.
The ultimate solution for ultra-high-density bulkhead penetrations, large multi-sensor housings, sophisticated ROV interfaces and deepsea systems requiring maximum channel count with proven wet-mate capability. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SF-12-2AW-BH
Brand: HYSF
Type: Split Petal 24-Core 2-Flap Female Bulkhead Connector
Gender: Female
Pin Count: 24
Contact Material: Gold-plated Brass
Current Rating: Mixed Power/Signal/Data Configuration
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Diameter: 80 mm
Body Length: 47.5 mm
Mounting: Threaded with Nut & Washer
Mating: Split Petal 2-Flap Alignment
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Ultra-High-Density Bulkhead Penetrations, Large Multi-Sensor Arrays, Sophisticated ROV Interfaces, Deepsea Wet-Mate High-Channel Systems
Certification: ISO9001-2015
Compatibility: Corresponding Split Petal Male Plugs
Place of Origin: Guangdong, China
