HYSF SF-24-2AW-DC is an ultra-high-density 24-core split petal plug connector with innovative 2-flap design for reliable wet-mateable connections. IP68 rated, 60 MPa tested, designed for extensive multi-channel power, signal and data transmission in large ROVs, complex sensor arrays, advanced lighting systems and deepsea hybrid applications up to 6000 m.

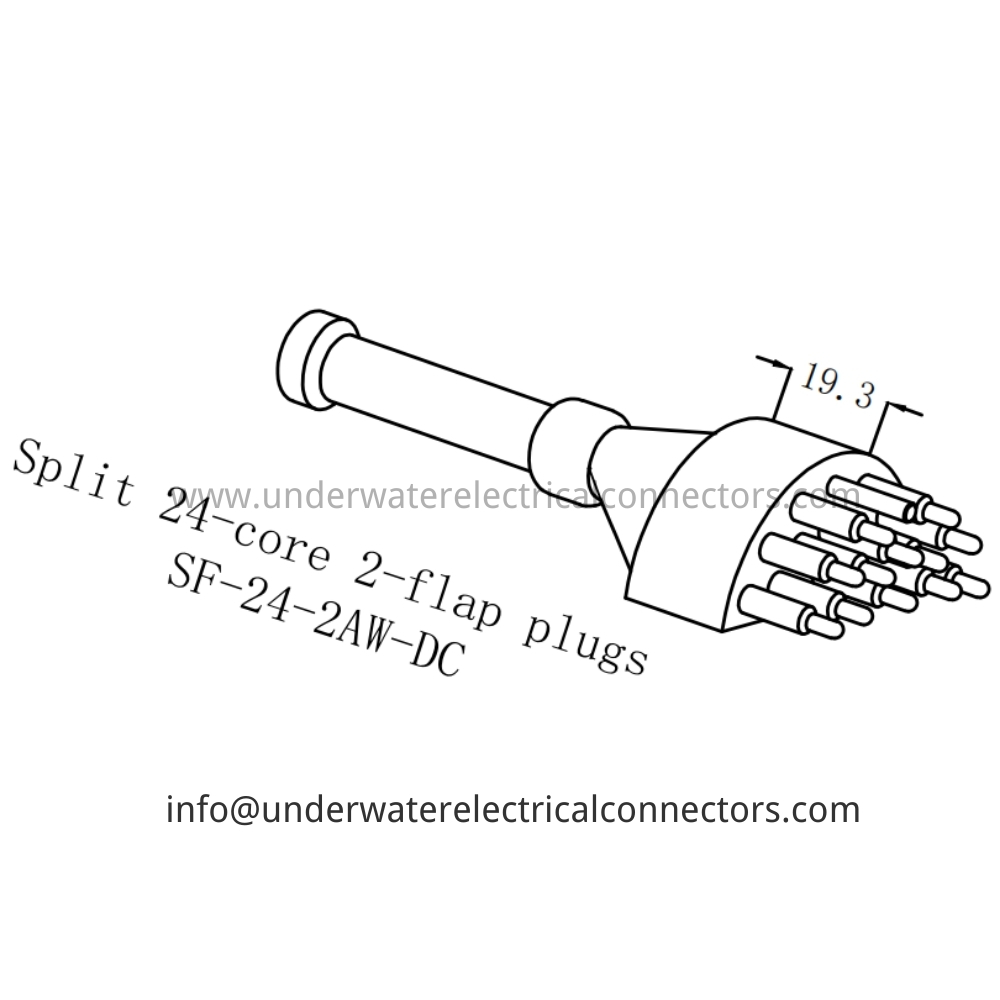

The HYSF SF-24-2AW-DC features advanced split petal contact technology with dual flap alignment for exceptional wet-mate reliability and simplified ROV manipulator handling. Compact plug design with 19.3 mm grip length enables effortless operation in confined spaces.
Precision gold-plated brass contacts arranged in 24-core ultra-high-density configuration, fully sealed with double O-rings. Supports extensive mixed power/signal/data channels in minimal diameter.
The ultimate choice for ultra-high-density split petal umbilicals, large multi-sensor arrays, sophisticated ROV tool interfaces and deepsea systems requiring maximum channel count with proven wet-mate capability. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SF-24-2AW-DC
Brand: HYSF
Type: Split Petal 24-Core 2-Flap Wet-Mate Plug
Pin Count: 24
Contact Material: Gold-plated Brass
Current Rating: Mixed Power/Signal/Data Configuration
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 30 mm
Grip Length: 19.3 mm
Mating: Split Petal 2-Flap Alignment
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Ultra-High-Density ROV Umbilicals, Large Multi-Sensor Arrays, Sophisticated Tool Interfaces, Deepsea Wet-Mate High-Channel Systems
Certification: ISO9001-2015
Compatibility: Corresponding Split Petal Receptacles
Place of Origin: Guangdong, China
