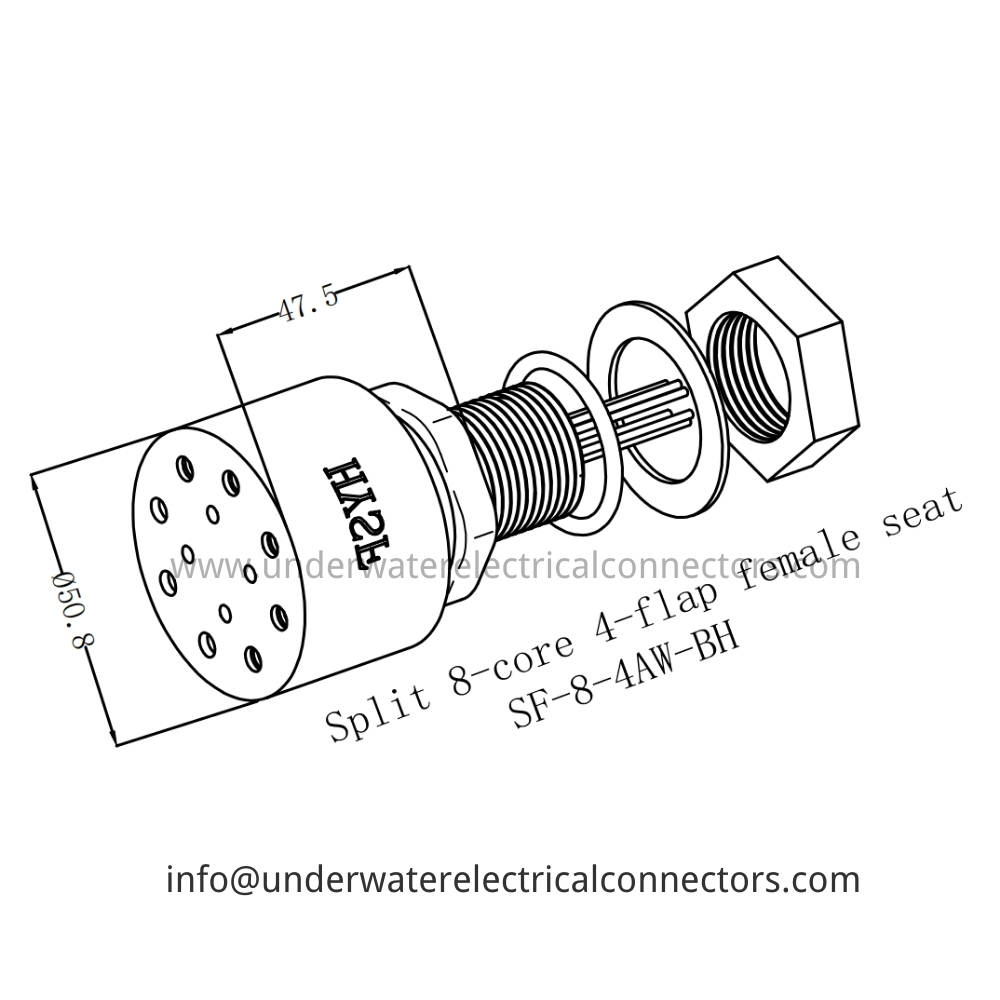

HYSF SF-8-4AW-BH is a high-density 8-core split petal female bulkhead connector with 4-flap alignment for reliable wet-mate connections. IP68 rated, 60 MPa tested, designed for multi-channel power, signal and data feedthroughs in ROVs, sensors, lighting systems and deepsea hybrid applications up to 6000 m.
The HYSF SF-8-4AW-BH features advanced split petal contact technology with 4-flap alignment for superior wet-mate reliability and easy ROV manipulator handling. Robust bulkhead mount with 47.5 mm body length and threaded mounting.
Precision gold-plated brass contacts in 8-core configuration, fully sealed with double O-rings. Supports mixed power/signal/data channels in compact diameter.
The definitive choice for high-density bulkhead penetrations, multi-sensor housings, complex ROV interfaces and deepsea systems requiring maximum channels with reliable wet-mate capability. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SF-8-4AW-BH
Brand: HYSF
Type: Split Petal 8-Core 4-Flap Female Bulkhead Connector
Gender: Female
Pin Count: 8
Contact Material: Gold-plated Brass
Current Rating: Mixed Power/Signal/Data Configuration
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Diameter: 50.8 mm
Body Length: 47.5 mm
Mounting: Threaded with Nut & Washer
Mating: Split Petal 4-Flap Alignment
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: High-Density Bulkhead Penetrations, Multi-Sensor Housings, Complex ROV Interfaces, Deepsea Wet-Mate Hybrid Systems
Certification: ISO9001-2015
Compatibility: Corresponding Split Petal Male Plugs
Place of Origin: Guangdong, China
