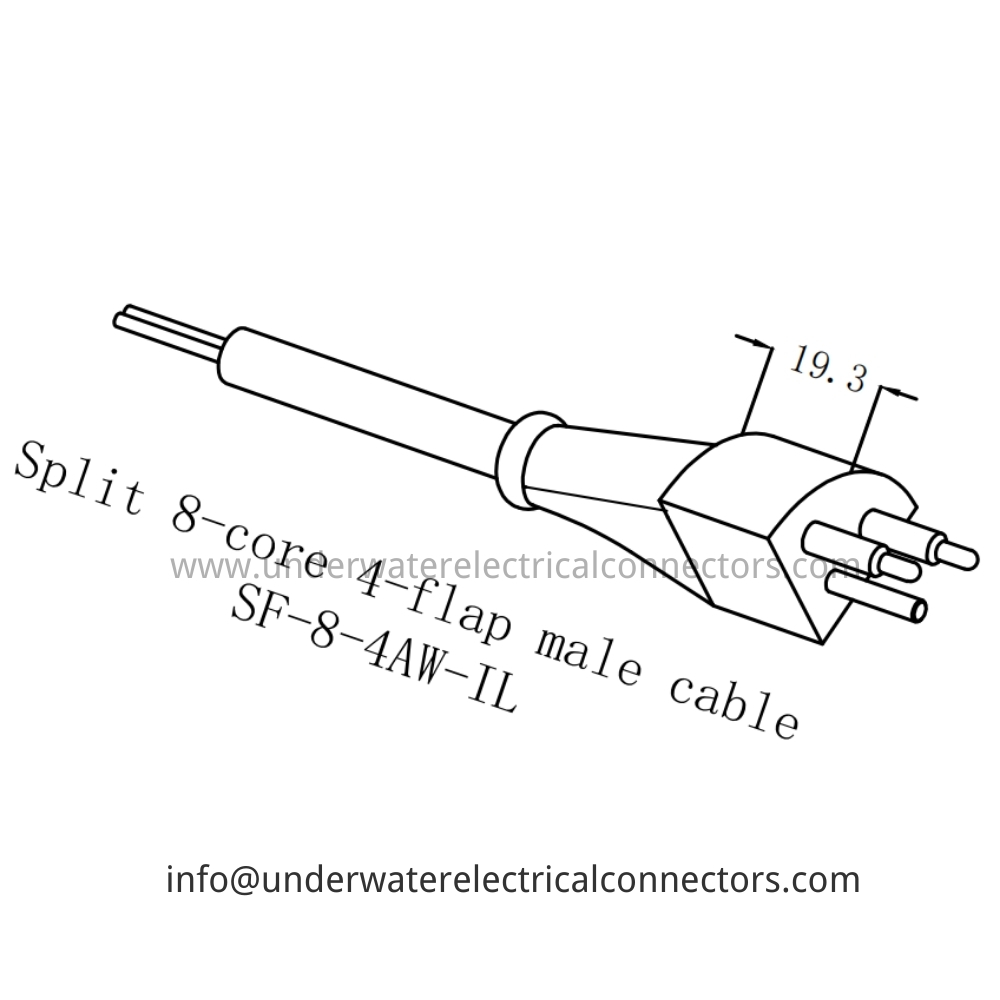

HYSF SF-8-4AW-IL is a high-density 8-core split petal male inline cable connector with innovative 4-flap design for reliable wet-mateable connections. IP68 rated, 60 MPa tested, designed for multi-channel power, signal and data transmission in ROVs, sensors, lighting systems and deepsea hybrid applications up to 6000 m.
The HYSF SF-8-4AW-IL features advanced split petal contact technology with 4-flap alignment for superior wet-mate reliability and easy ROV manipulator handling. Compact inline cable design with 19.3 mm grip length and tapered PU overmold for excellent strain relief.
Precision gold-plated brass contacts arranged in 8-core configuration, fully sealed with double O-rings. Supports mixed power/signal/data channels in minimal diameter.
The definitive choice for high-density split petal umbilicals, multi-sensor arrays, complex ROV tool interfaces and deepsea systems requiring maximum channels with reliable wet-mate capability. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SF-8-4AW-IL
Brand: HYSF
Type: Split Petal 8-Core 4-Flap Male Inline Cable
Gender: Male
Pin Count: 8
Contact Material: Gold-plated Brass
Current Rating: Mixed Power/Signal/Data Configuration
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 30 mm
Grip Length: 19.3 mm
Mating: Split Petal 4-Flap Alignment
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: High-Density ROV Umbilicals, Multi-Sensor Arrays, Complex Tool Interfaces, Deepsea Wet-Mate Hybrid Systems
Certification: ISO9001-2015
Compatibility: Corresponding Split Petal Female Receptacles
Place of Origin: Guangdong, China
