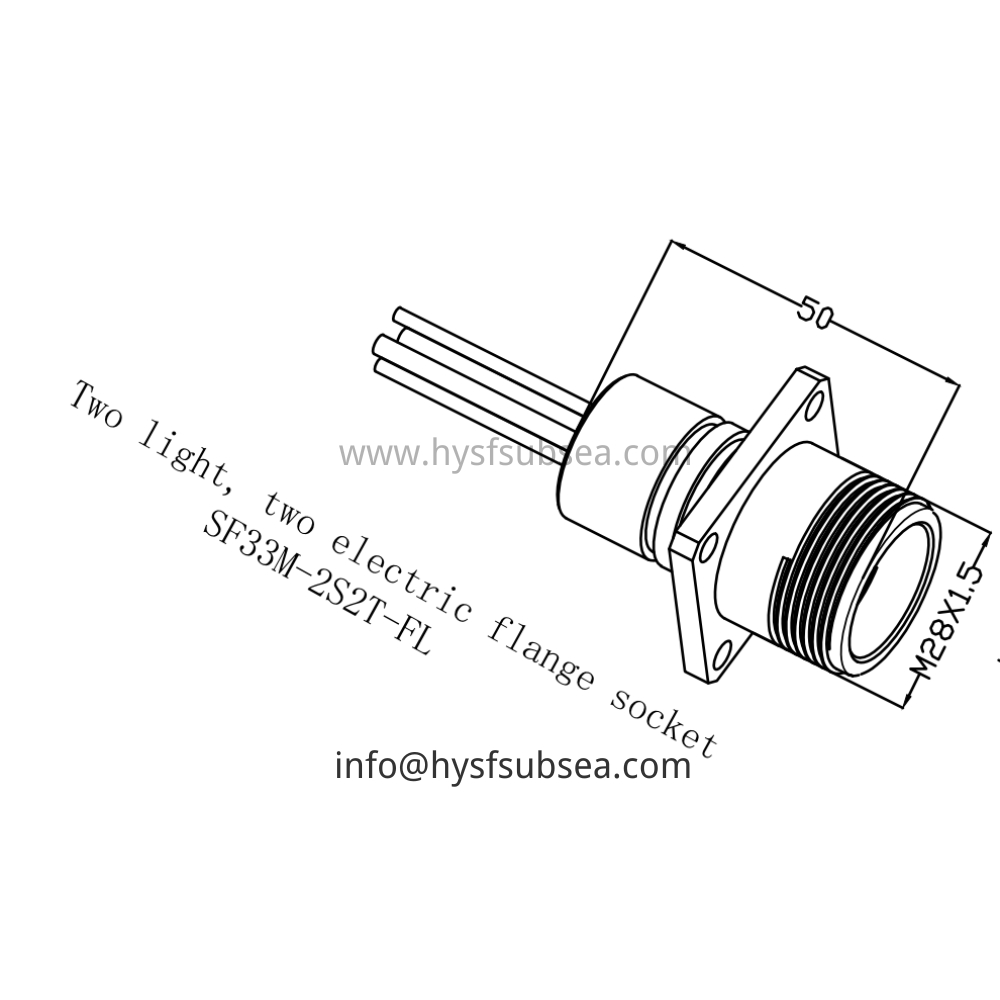

HYSF SF33M-2S2T-FL Hybrid 2-optical 2-electrical flange socket Underwater Connector

Product Description

The HYSF SF33M-2S2T-FL delivers reliable hybrid 2-optical + 2-electrical connectivity in a robust flange-mounted socket design with M28x1.5 thread and 50 mm flange width, ideal for secure panel installations in space-constrained subsea housings.

Precision 316L stainless steel body with gold-plated electrical contacts and high-quality optical ferrules, double O-ring sealing. Pre-terminated with hybrid optical/electrical leads for seamless integration.

The preferred solution for underwater lighting + power penetrations, compact ROV sensor interfaces, hybrid camera feeds and demanding deepsea systems requiring combined optical data and electrical power in minimal footprint. ISO9001-2015 certified with 100% hyperbaric testing.

Product Parameter

Model: SF33M-2S2T-FL

Brand: HYSF

Type: Hybrid 2-Optical + 2-Electrical Female Flange Socket

Gender: Female

Optical Channels: 2

Electrical Channels: 2

Contact Material: Gold-plated Brass (Electrical), Ceramic Ferrule (Optical)

Current Rating: 10A per electrical pin (typical)

Voltage Rating: 600V AC/DC

Optical Loss: <0.5 dB (typical)

Housing Material: 316L Stainless Steel

Sealing: Double O-Ring

Flange Width: 50 mm

Thread: M28x1.5

Mounting: Flange with Threaded Body

Cable: Pre-terminated Hybrid Optical/Electrical Leads

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Underwater Lighting + Power Penetrations, Compact ROV Sensor Interfaces, Hybrid Camera Feeds, Deepsea Photoelectric Hybrid Distribution

Certification: ISO9001-2015

Compatibility: Corresponding Hybrid Male Plugs

Place of Origin: Guangdong, China
