HYSF SF33M-2S2T-TS is a compact hybrid 2-optical + 2-electrical female threaded socket connector for bulkhead mounting. IP68 rated, 60 MPa tested, designed for combined high-speed optical data and power transmission in ROVs, underwater lighting, sensors and deepsea hybrid photoelectric applications up to 6000 m.

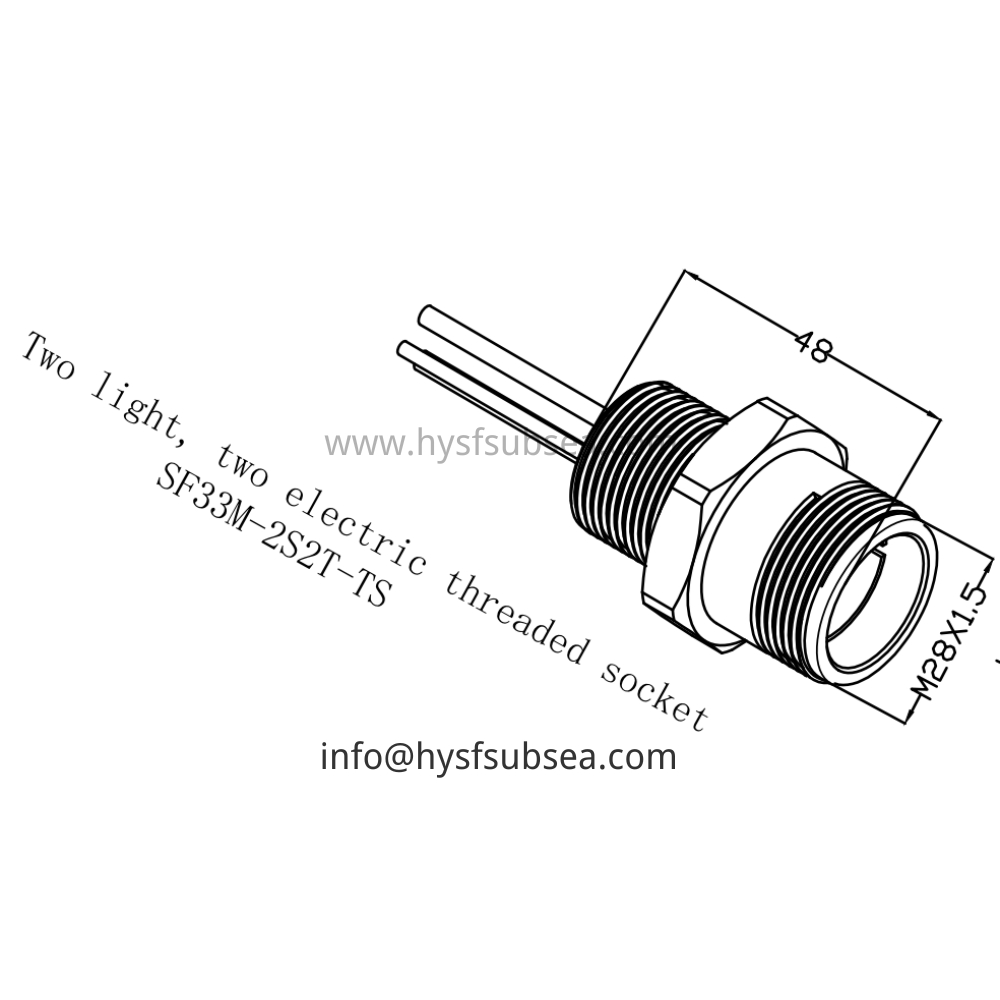

The HYSF SF33M-2S2T-TS delivers reliable hybrid 2-optical + 2-electrical connectivity in a robust threaded socket design with M28x1.5 thread and 48 mm body length, ideal for direct bulkhead installations in subsea housings.
Precision 316L stainless steel body with gold-plated electrical contacts and high-quality optical ferrules, double O-ring sealing. Pre-terminated with hybrid optical/electrical leads for seamless integration.
The preferred solution for underwater lighting + power penetrations, compact ROV sensor interfaces, hybrid camera feeds and demanding deepsea systems requiring combined optical data and electrical power in minimal footprint. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SF33M-2S2T-TS
Brand: HYSF
Type: Hybrid 2-Optical + 2-Electrical Female Threaded Socket
Gender: Female
Optical Channels: 2
Electrical Channels: 2
Contact Material: Gold-plated Brass (Electrical), Ceramic Ferrule (Optical)
Current Rating: 10A per electrical pin (typical)
Voltage Rating: 600V AC/DC
Optical Loss: <0.5 dB (typical)
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Length: 48 mm
Thread: M28x1.5
Mounting: Threaded Bulkhead
Cable: Pre-terminated Hybrid Optical/Electrical Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Underwater Lighting + Power Penetrations, Compact ROV Sensor Interfaces, Hybrid Camera Feeds, Deepsea Photoelectric Hybrid Distribution
Certification: ISO9001-2015
Compatibility: Corresponding Hybrid Male Plugs
Place of Origin: Guangdong, China
