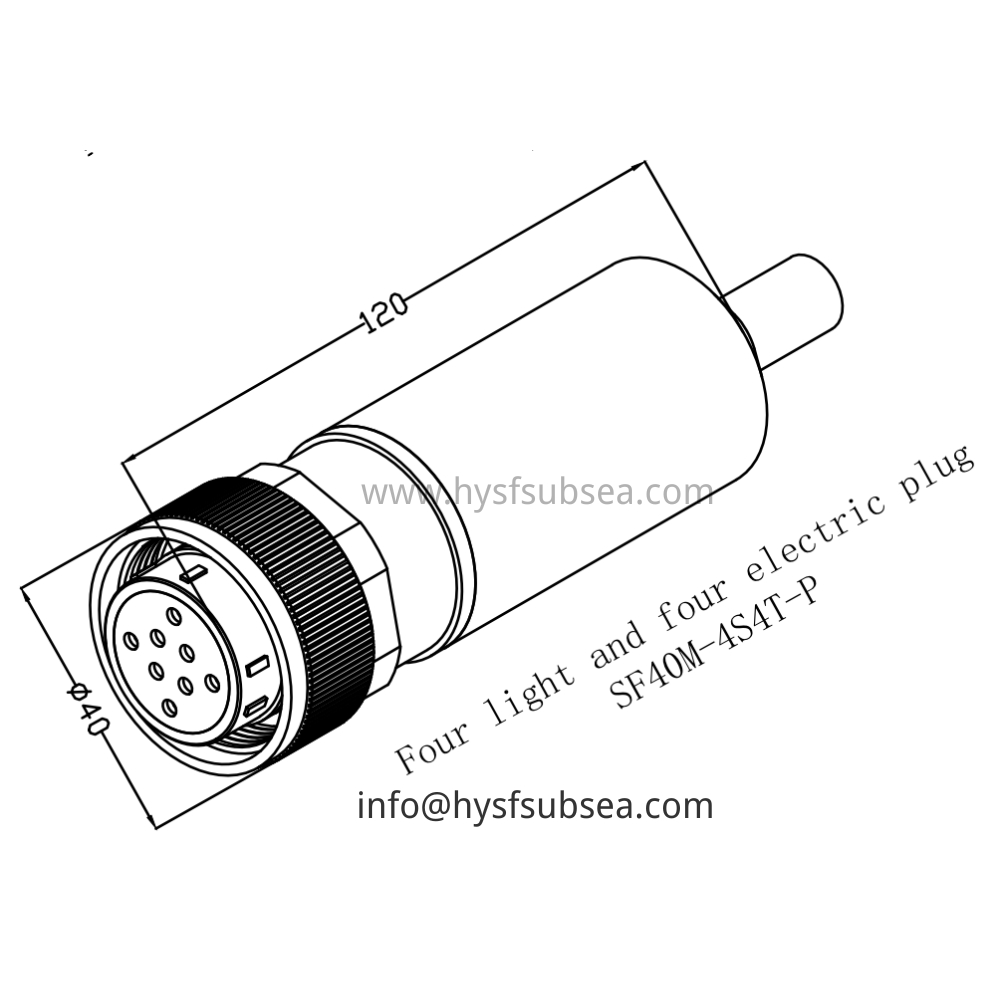

HYSF SF40M-4S4T-P Hybrid 4-optical 4-electrical plug Underwater Connector

Product Description

The HYSF SF40M-4S4T-P delivers reliable hybrid 4-optical + 4-electrical connectivity in a robust plug profile with tapered PU overmold, ideal for direct mating to bulkhead receptacles in constrained spaces. Overall length 120 mm with 40 mm diameter and excellent strain relief.

Precision 316L stainless steel insert with gold-plated electrical contacts and high-quality optical ferrules, fully encapsulated in black polyurethane. Pre-terminated with hybrid optical/electrical leads.

The preferred solution for underwater lighting + power plugs, high-density ROV sensor connections, hybrid camera feeds and demanding deepsea systems requiring combined multi-channel optical data and substantial electrical power. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.

Product Parameter

Model: SF40M-4S4T-P

Brand: HYSF

Type: Hybrid 4-Optical + 4-Electrical Male Plug

Gender: Male

Optical Channels: 4

Electrical Channels: 4

Contact Material: Gold-plated Brass (Electrical), Ceramic Ferrule (Optical)

Current Rating: 10A per electrical pin (typical)

Voltage Rating: 600V AC/DC

Optical Loss: <0.5 dB (typical)

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Diameter: 40 mm

Total Length: 120 mm

Overmold: Black Polyurethane (PU)

Cable: Pre-terminated Hybrid Optical/Electrical Leads

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Underwater Lighting + Power Plugs, High-Density ROV Sensor Connections, Hybrid Camera Feeds, Deepsea Photoelectric Hybrid Mating

Certification: ISO9001-2015

Compatibility: Corresponding Hybrid Female Receptacles

Place of Origin: Guangdong, China
