HYSF SF40M-4S4T-TS Hybrid 4-optical 4-electrical threaded socket Underwater Connector

Product Description

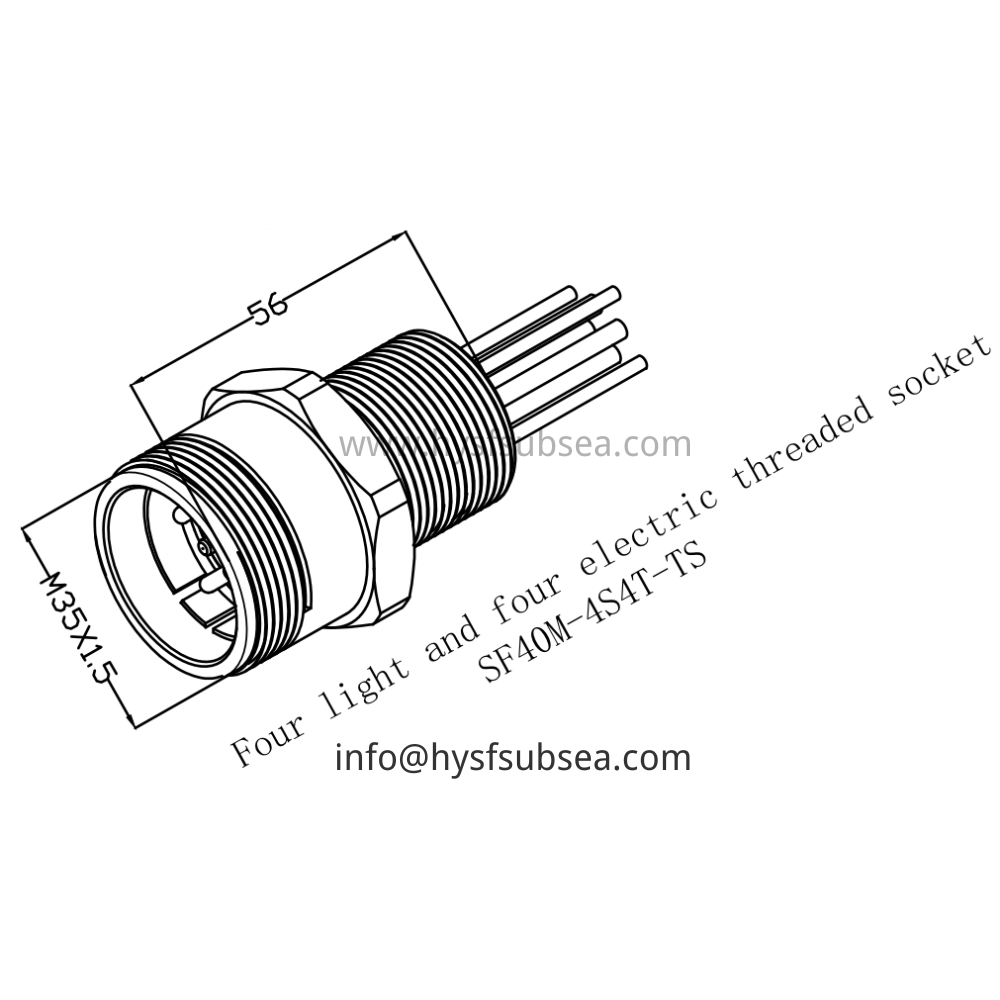

The HYSF SF40M-4S4T-TS delivers reliable hybrid 4-optical + 4-electrical connectivity in a robust threaded socket design with M35x1.5 thread and 56 mm body length, ideal for direct bulkhead installations in subsea housings requiring high channel density.

Precision 316L stainless steel body with gold-plated electrical contacts and high-quality optical ferrules, double O-ring sealing. Pre-terminated with hybrid optical/electrical leads for seamless integration.

The preferred solution for underwater lighting + power penetrations, high-density ROV sensor interfaces, hybrid camera feeds and demanding deepsea systems requiring combined optical data and substantial electrical power. ISO9001-2015 certified with 100% hyperbaric testing.

Product Parameter

Model: SF40M-4S4T-TS

Brand: HYSF

Type: Hybrid 4-Optical + 4-Electrical Female Threaded Socket

Gender: Female

Optical Channels: 4

Electrical Channels: 4

Contact Material: Gold-plated Brass (Electrical), Ceramic Ferrule (Optical)

Current Rating: 10A per electrical pin (typical)

Voltage Rating: 600V AC/DC

Optical Loss: <0.5 dB (typical)

Housing Material: 316L Stainless Steel

Sealing: Double O-Ring

Body Length: 56 mm

Thread: M35x1.5

Mounting: Threaded Bulkhead

Cable: Pre-terminated Hybrid Optical/Electrical Leads

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Underwater Lighting + Power Penetrations, High-Density ROV Sensor Interfaces, Hybrid Camera Feeds, Deepsea Photoelectric Hybrid Distribution

Certification: ISO9001-2015

Compatibility: Corresponding Hybrid Male Plugs

Place of Origin: Guangdong, China
