HYSF SF40M-HSCM is a robust male external thread protective dummy cap designed for hybrid 4-optical + 4-electrical ports. IP68 rated, 60 MPa tested, dedicated for protecting unused female hybrid photoelectric receptacles in ROVs, sensors, lighting systems and deepsea hybrid applications up to 6000 m.
The HYSF SF40M-HSCM is a dedicated male external thread protective dummy cap that securely seals and protects exposed female hybrid 4-optical + 4-electrical receptacles from seawater intrusion, biofouling and mechanical damage. Its precision-machined body with external thread and integrated O-ring provides a complete pressure-tight mechanical barrier with no electrical or optical connection.
Constructed from high-strength 316L stainless steel with captive threaded locking and knurled grip for easy hand-installation even with gloves.
Essential for maintaining hybrid photoelectric system integrity on female ports when temporarily unmated, preventing contamination in harsh subsea environments. ISO9001-2015 certified with 100 MPa burst rating.
Model: SF40M-HSCM
Brand: HYSF
Type: Hybrid 4-Optical + 4-Electrical Male External Thread Protective Dummy Cap
Gender: Male (Non-Electrical/Non-Optical)
Contact: Dummy Structure (Sealing Only)
Housing Material: 316L Stainless Steel
Sealing: Single O-Ring + Face Seal

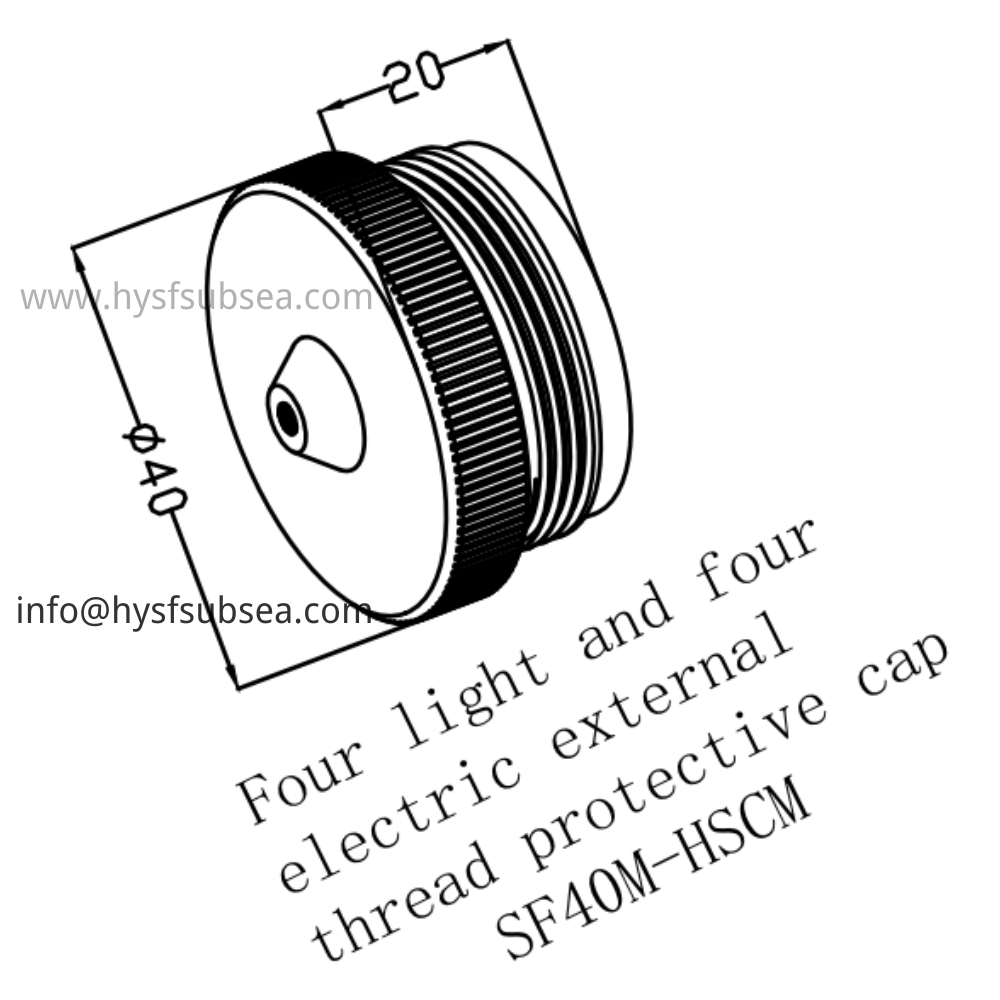

Body Diameter: 40 mm
Total Length: 20 mm
Locking: External Thread
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Hybrid Photoelectric Female Port Protection, Dummy Cap for Hybrid Series, ROV/Sensor/Lighting Port Sealing
Certification: ISO9001-2015
Compatibility: Hybrid 4-Optical + 4-Electrical Female Ports
Place of Origin: Guangdong, China
