HYSF SFCCRA1-4 is a custom right-angle 4-core cabin penetration connector designed for space-constrained bulkhead installations. IP68 rated, 60 MPa tested, provides reliable watertight feedthrough with 90° cable exit for compact routing in ROVs, habitats, pressure housings and deepsea systems up to 6000 m.

The HYSF SFCCRA1-4 features a compact 90° right-angle design with tapered overmold and threaded bulkhead mounting, perfect for installations where straight penetrations are impossible due to space constraints while maintaining full 4-core capability.
Precision 316L stainless steel body with gold-plated brass contacts, double O-ring sealing and integrated strain relief. Pre-terminated with 4-core cable for mixed power/signal applications.
Ideal for right-angle cabin penetrations, habitat bulkhead feedthroughs, compact ROV interfaces and any subsea pressure housing requiring angled watertight multi-channel connectivity. ISO9001-2015 certified with 100 MPa burst validation.
Model: SFCCRA1-4
Brand: HYSF
Type: Right-Angle Standard 4-Core Cabin Penetration
Core Count: 4
Contact Material: Gold-plated Brass
Current Rating: Mixed Power/Signal Configuration
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal

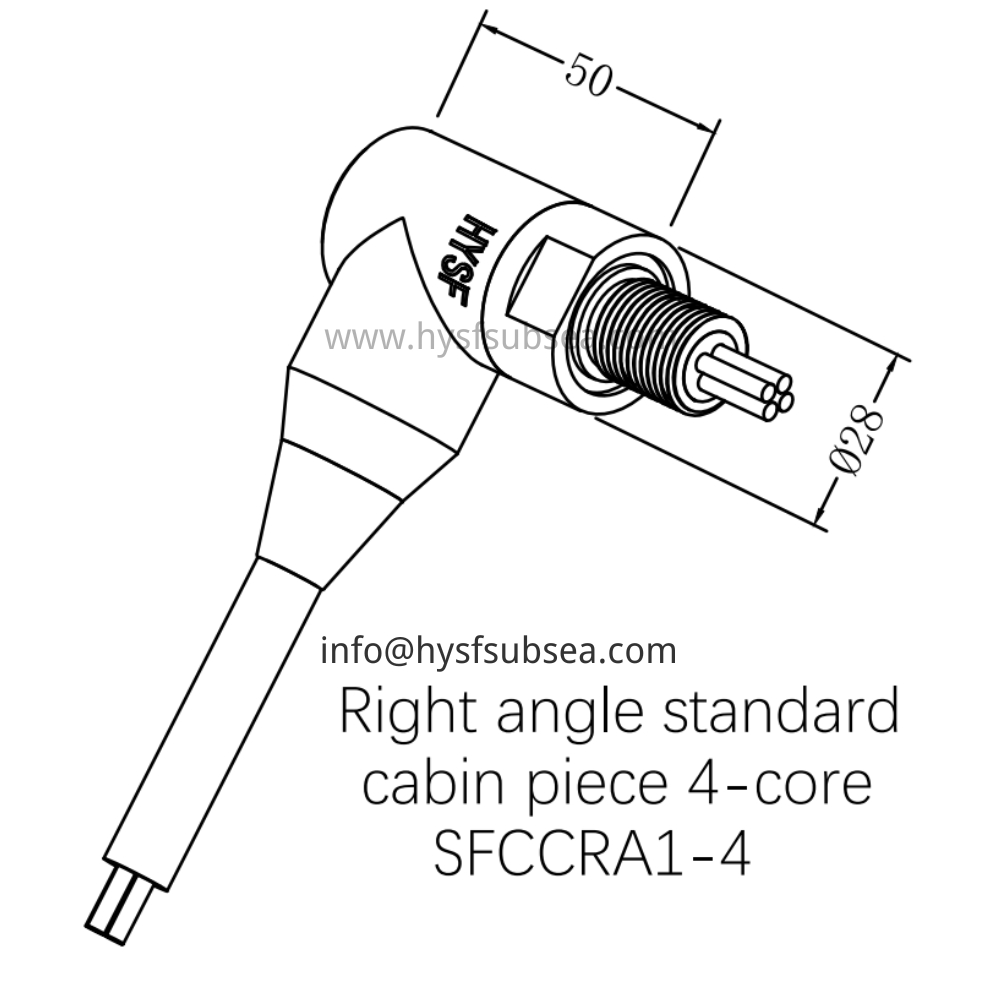

Body Diameter: 28 mm
Angle Length: 50 mm
Mounting: Threaded Bulkhead
Cable: Pre-terminated 4-Core Cable
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Right-Angle Cabin Penetrations, Habitat Bulkhead Feedthroughs, Compact ROV Interfaces, Space-Constrained Multi-Channel Installations
Certification: ISO9001-2015
Customization: Available for Specific Core Counts & Configurations
Place of Origin: Guangdong, China
