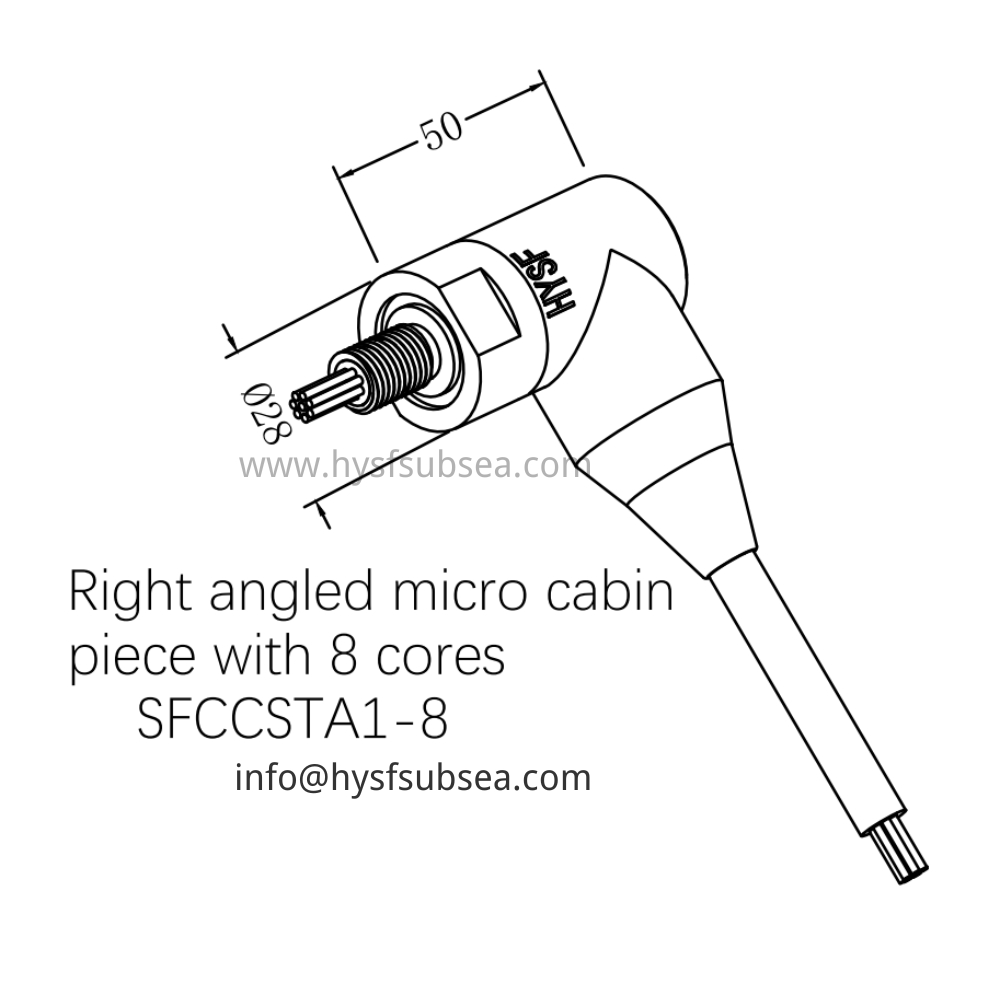

HYSF SFCCSTA1-8 is a custom right-angled micro 8-core cabin penetration connector designed for ultra-compact bulkhead installations. IP68 rated, 60 MPa tested, provides reliable watertight feedthrough with 90° cable exit for minimal-profile routing in ROVs, habitats, pressure housings and deepsea systems up to 6000 m.
The HYSF SFCCSTA1-8 features an ultra-compact 90° right-angle micro design with tapered overmold and threaded bulkhead mounting, ideal for space-critical installations where straight or larger penetrations are not feasible while delivering full 8-core high-density capability.
Precision 316L stainless steel body with gold-plated brass contacts, double O-ring sealing and integrated strain relief. Pre-terminated with 8-core cable for mixed power/signal/data applications in minimal diameter.
Perfect for micro cabin penetrations, compact habitat bulkhead feedthroughs, miniature ROV interfaces and any subsea pressure housing requiring angled watertight high-channel connectivity in extreme space constraints. ISO9001-2015 certified with 100 MPa burst validation.
Model: SFCCSTA1-8
Brand: HYSF
Type: Right-Angle Micro 8-Core Cabin Penetration
Core Count: 8
Contact Material: Gold-plated Brass
Current Rating: Mixed Power/Signal/Data Configuration
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 18 mm
Angle Length: 50 mm
Mounting: Threaded Bulkhead
Cable: Pre-terminated 8-Core Cable
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Micro Cabin Penetrations, Compact Habitat Feedthroughs, Miniature ROV Interfaces, Ultra-Space-Constrained High-Density Installations
Certification: ISO9001-2015
Customization: Available for Specific Core Counts & Configurations
Place of Origin: Guangdong, China
