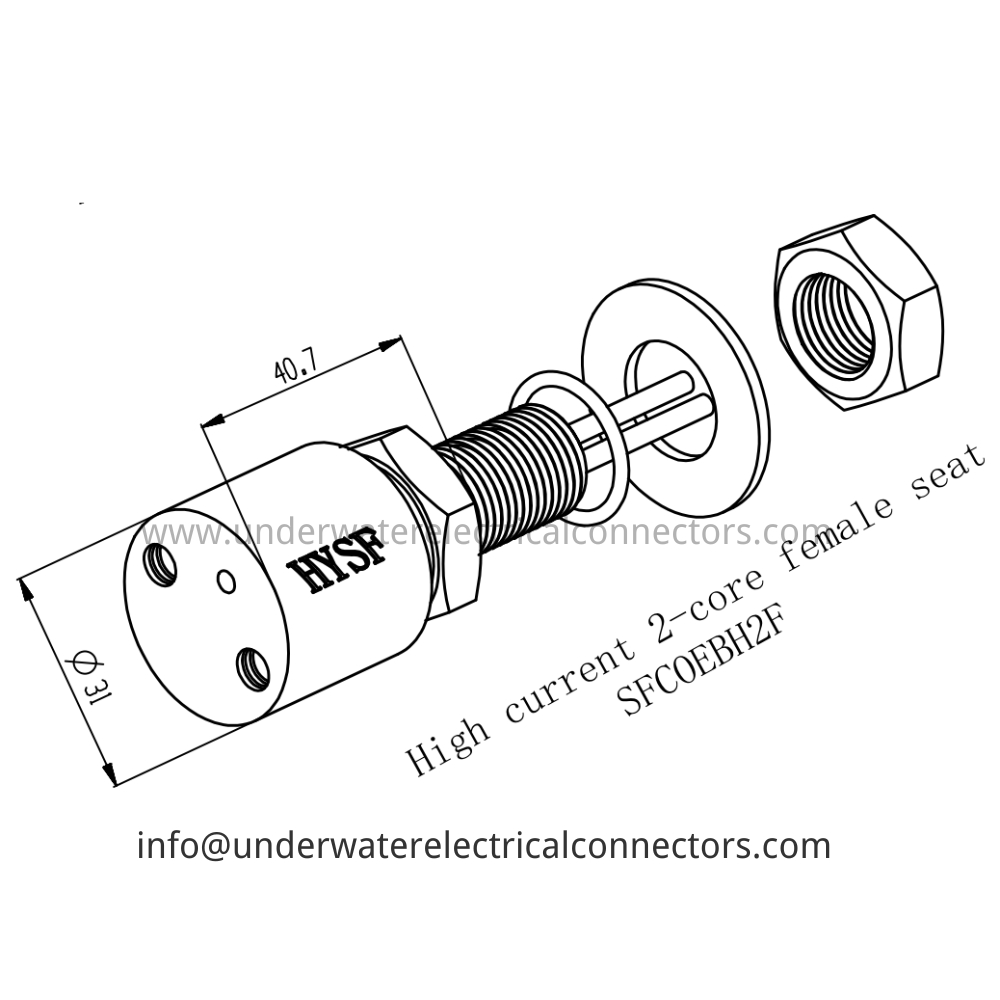

HYSF SFCOEBH2F is a high-current 2-pin female bulkhead connector with 40.7 mm body length. IP68 rated, 60 MPa tested, designed for heavy power feedthroughs in ROVs, thrusters, battery housings and deepsea high-power systems up to 6000 m.
The HYSF SFCOEBH2F provides extreme current capacity in a robust bulkhead mount design, perfect for permanent high-power penetrations where reliability and space efficiency are critical.
Precision-machined 316L stainless steel body with gold-plated brass sockets, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 2 × 12 AWG PTFE leads for maximum current handling.
The ultimate choice for high-power thruster penetrators, main battery ports, deepsea power distribution panels and demanding subsea installations requiring the highest current ratings. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFCOEBH2F
Brand: HYSF
Type: High Current 2-Core Female Bulkhead Connector
Gender: Female
Pin Count: 2
Contact Material: Gold-plated Brass
Current Rating: 60A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Diameter: 31 mm
Body Length: 40.7 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated 2 × 12 AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: High-Power Thruster Penetrators, Main Battery Ports, Deepsea Power Distribution, Heavy-Duty Subsea Feedthroughs
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Male Plugs
Place of Origin: Guangdong, China
