HYSF SFCOEBH3F is a high-current 3-pin female bulkhead connector with 40.7 mm body length. IP68 rated, 60 MPa tested, designed for combined high-power + control/signal feedthroughs in ROVs, thrusters, actuators and deepsea hybrid power systems up to 6000 m.
The HYSF SFCOEBH3F provides high current capacity with additional control channels in a robust bulkhead mount design, ideal for hybrid power + data/signal penetrations where space and reliability are paramount.
Precision-machined 316L stainless steel body with gold-plated brass sockets, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 3 × 14 AWG PTFE leads (typically 2 high-power + 1 control/signal).
The preferred solution for thruster power + control penetrators, actuator interfaces, hybrid battery ports and demanding subsea systems requiring combined high current and auxiliary channels. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFCOEBH3F
Brand: HYSF
Type: High Current 3-Core Female Bulkhead Connector
Gender: Female
Pin Count: 3
Contact Material: Gold-plated Brass
Current Rating: 50A on power pins, 10A on signal pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring

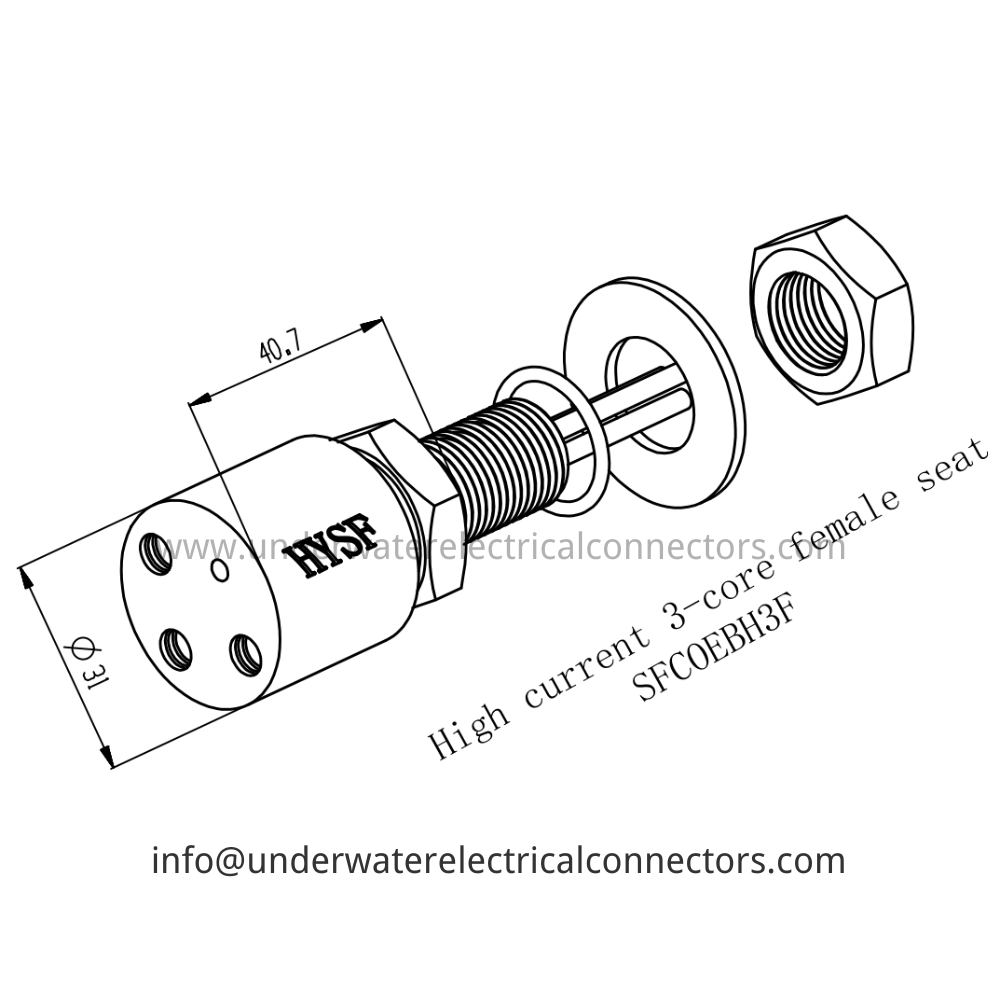

Body Diameter: 31 mm
Body Length: 40.7 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated 3 × 14 AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: High-Power + Control Penetrators, Thruster Power/Signal Ports, Hybrid Actuator Interfaces, Deepsea Combined Power Distribution
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Male Plugs
Place of Origin: Guangdong, China
