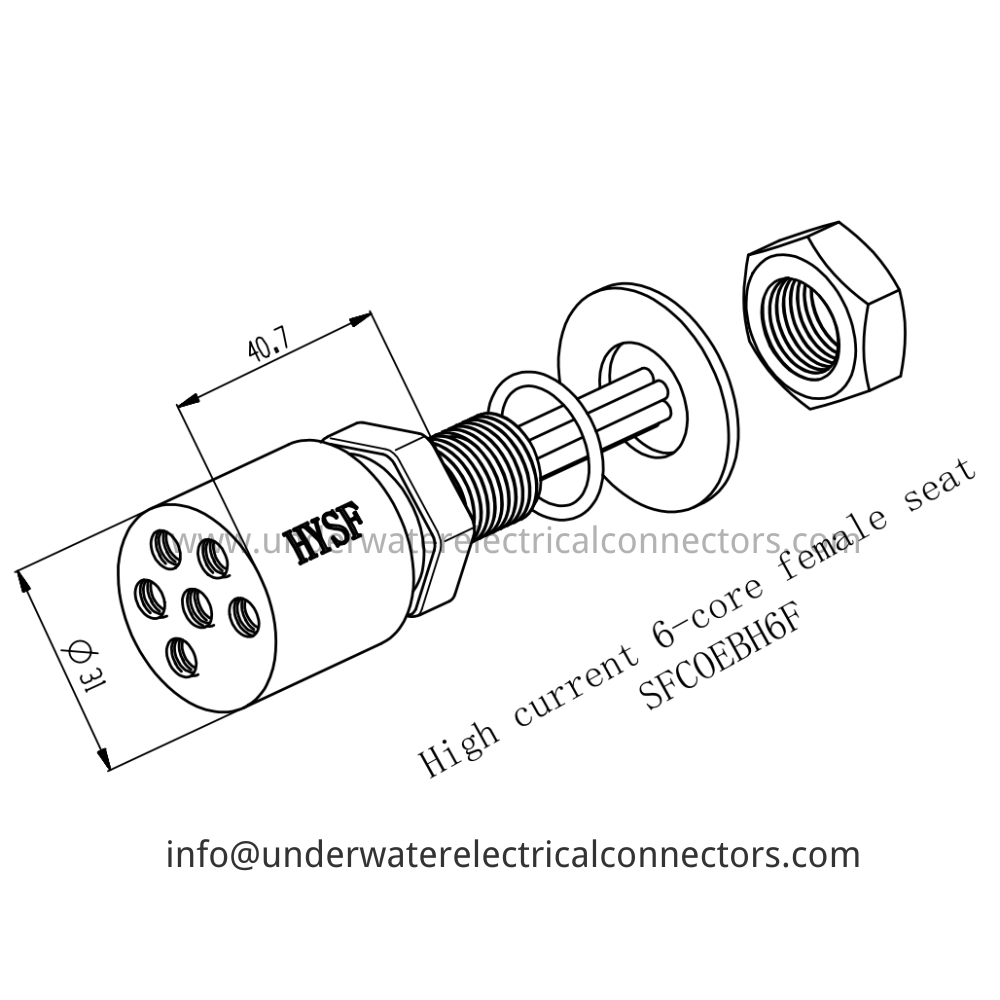

HYSF SFCOEBH6F is a high-current 6-pin female bulkhead connector with 40.7 mm body length. IP68 rated, 60 MPa tested, designed for Gigabit Ethernet + dual power/sensor feedthroughs in ROVs, multi-function thrusters, advanced cameras and deepsea hybrid systems up to 6000 m.
The HYSF SFCOEBH6F delivers 6 channels including Gigabit Ethernet + dual power/sensor in a robust bulkhead mount design, ideal for complex hybrid penetrations where space and reliability are critical.
Precision-machined 316L stainless steel body with gold-plated brass sockets, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 6 × mixed AWG PTFE leads. Typical configuration: 1000BASE-T Gigabit Ethernet (4 pins) + 2 additional power/sensor lines.
The ultimate solution for multi-channel Ethernet-enabled thrusters, advanced camera systems with power, hybrid actuator/sensor ports and demanding subsea installations requiring maximum functionality in minimal volume. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFCOEBH6F
Brand: HYSF
Type: High Current 6-Core Female Bulkhead Connector
Gender: Female
Pin Count: 6
Contact Material: Gold-plated Brass
Current Rating: 30A on power pins, 8A on data pins
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Diameter: 31 mm
Body Length: 40.7 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated 6 × mixed AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Dual Power/Sensor Penetrators, Multi-Channel Thruster Ports, Advanced Camera Feeds with Power, Deepsea High-Density Hybrid Applications
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Male Plugs
Place of Origin: Guangdong, China
