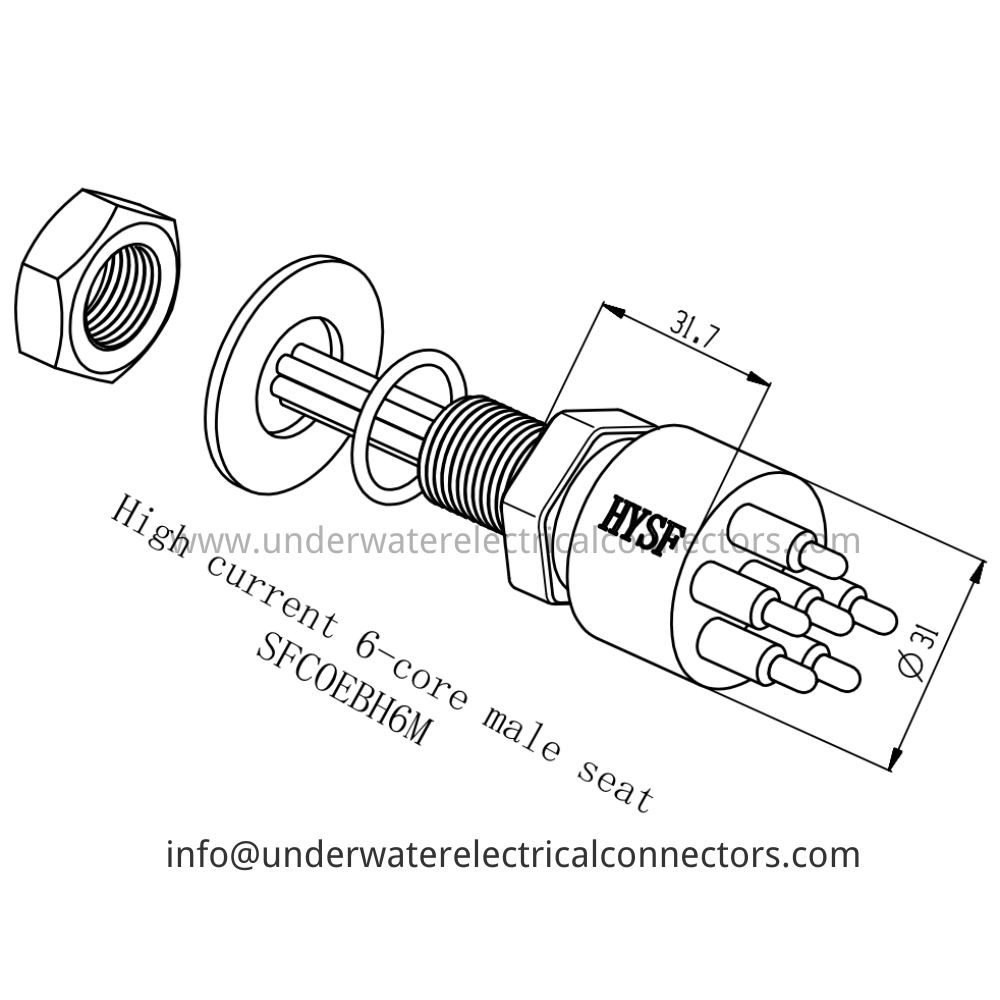

HYSF SFCOEBH6M High current 6-core male seat Underwater Connector

Product Description

The HYSF SFCOEBH6M delivers 6 channels including Gigabit Ethernet + dual power/sensor in a robust bulkhead mount design, ideal for complex hybrid penetrations where space and reliability are critical.

Precision-machined 316L stainless steel body with gold-plated brass pins, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 6 × mixed AWG PTFE leads. Typical configuration: 1000BASE-T Gigabit Ethernet (4 pins) + 2 additional power/sensor lines.

The ultimate solution for multi-channel Ethernet-enabled thrusters, advanced camera systems with power, hybrid actuator/sensor ports and demanding subsea installations requiring maximum functionality in minimal volume. ISO9001-2015 certified with 100% hyperbaric testing.

Product Parameter

Model: SFCOEBH6M

Brand: HYSF

Type: High Current 6-Core Male Bulkhead Connector

Gender: Male

Pin Count: 6

Contact Material: Gold-plated Brass

Current Rating: 30A on power pins, 8A on data pins

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Sealing: Double O-Ring

Body Diameter: 31 mm

Body Length: 31.7 mm

Mounting: Threaded with Nut & Washer

Cable: Pre-terminated 6 × mixed AWG PTFE Leads

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Gigabit Ethernet + Dual Power/Sensor Penetrators, Multi-Channel Thruster Ports, Advanced Camera Feeds with Power, Deepsea High-Density Hybrid Applications

Certification: ISO9001-2015

Compatibility: Corresponding High-Current Female Plugs

Place of Origin: Guangdong, China
