HYSF SFCOEDC2F is a high-current 2-pin female plug connector with PU overmold. IP68 rated, 60 MPa tested, designed for heavy power transmission in micro-ROVs, thrusters, battery packs and deepsea high-power applications up to 6000 m.

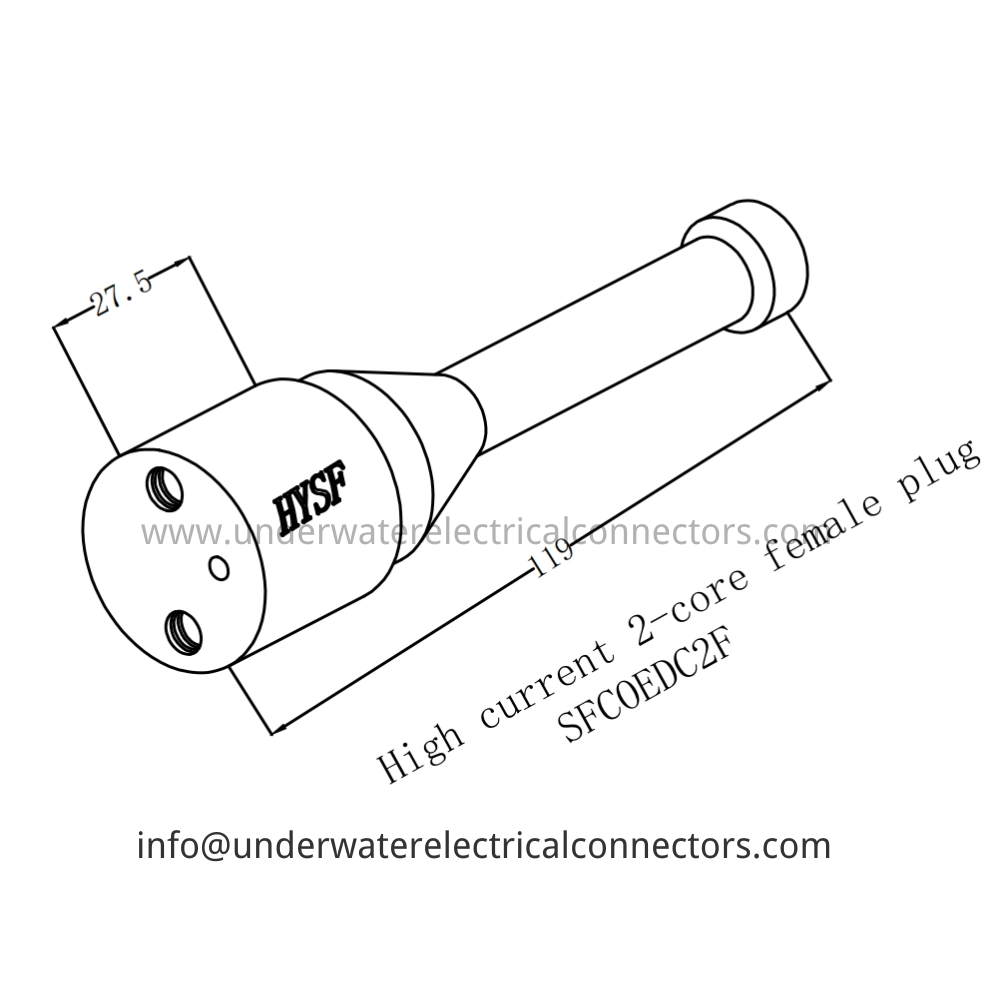

The HYSF SFCOEDC2F delivers massive current handling in a compact plug profile with tapered PU overmold, ideal for direct mating to high-current bulkhead receptacles in constrained spaces. Only 27.5 mm grip length with robust strain relief.
Precision 316L stainless steel insert with gold-plated brass sockets, fully encapsulated in black polyurethane. Pre-terminated with 2 × 12 AWG PTFE leads for extreme current capacity.
The go-to solution for high-power thruster plugs, ROV main power connections, deepsea battery plugs and demanding subsea systems requiring maximum current in minimal diameter. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFCOEDC2F
Brand: HYSF
Type: High Current 2-Core Female Plug
Gender: Female
Pin Count: 2
Contact Material: Gold-plated Brass
Current Rating: 60A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 31 mm
Grip Length: 27.5 mm
Cable: 2 × 12 AWG PTFE Leads
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: High-Power Thruster Plugs, ROV Main Power Connections, Deepsea Battery Plugs, Heavy-Duty Subsea Power Mating
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Male Receptacles
Place of Origin: Guangdong, China
