HYSF SFCOEDC6F is a high-current 6-pin female plug connector with PU overmold. IP68 rated, 60 MPa tested, designed for Gigabit Ethernet + dual power/sensor transmission in ROVs, multi-function thrusters, advanced cameras and deepsea hybrid systems up to 6000 m.

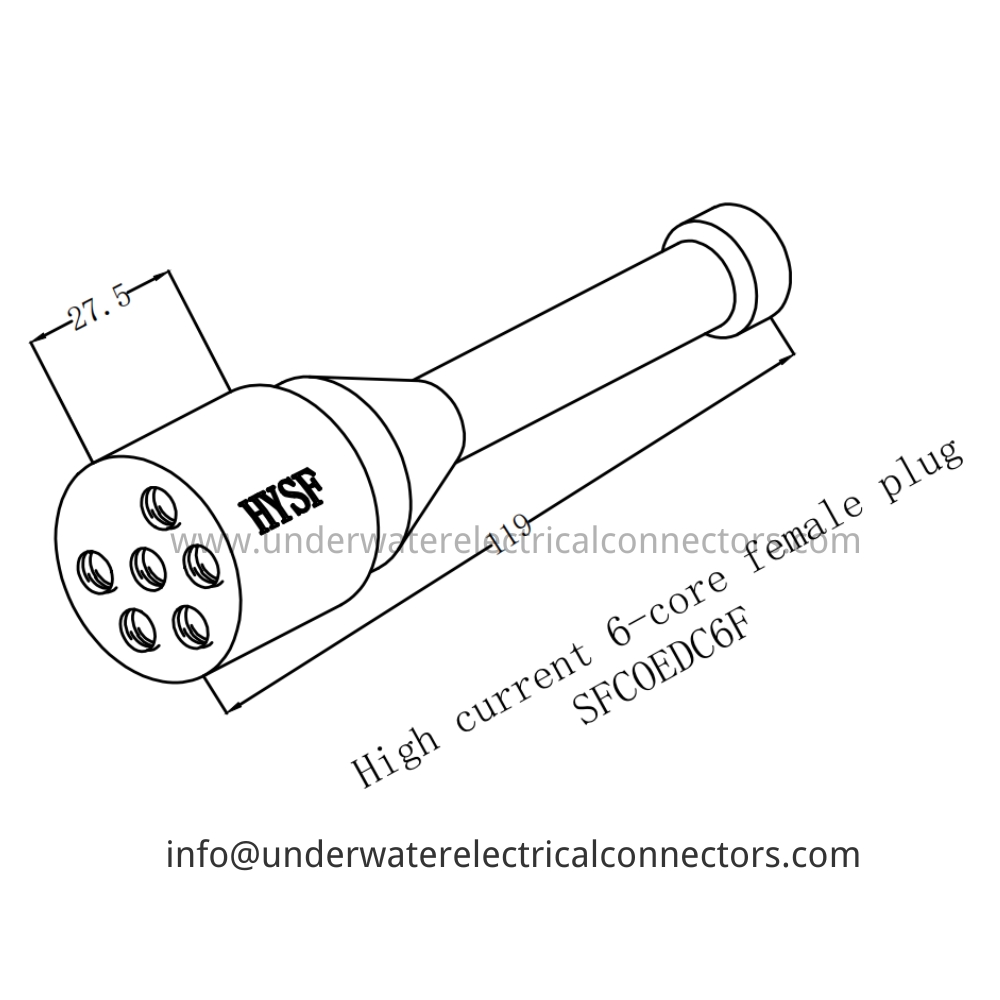

The HYSF SFCOEDC6F delivers 6 channels including Gigabit Ethernet + dual power/sensor in a compact plug profile with tapered PU overmold, ideal for direct mating to bulkhead receptacles in constrained spaces. Only 27.5 mm grip length with robust strain relief.
Precision 316L stainless steel insert with gold-plated brass sockets, fully encapsulated in black polyurethane. Pre-terminated with 6 × mixed AWG PTFE leads. Typical configuration: 1000BASE-T Gigabit Ethernet (4 pins) + 2 additional power/sensor lines.
The ultimate solution for multi-channel Ethernet-enabled thruster plugs, advanced camera connections with power, hybrid sensor/actuator interfaces and demanding subsea systems requiring maximum functionality in minimal volume. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFCOEDC6F
Brand: HYSF
Type: High Current 6-Core Female Plug
Gender: Female
Pin Count: 6
Contact Material: Gold-plated Brass
Current Rating: 30A on power pins, 8A on data pins
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 31 mm
Grip Length: 27.5 mm
Cable: 6 × mixed AWG PTFE Leads
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Dual Power/Sensor Plugs, Multi-Channel Thruster Connections, Advanced Camera Feeds with Power, Deepsea High-Density Hybrid Mating
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Male Receptacles
Place of Origin: Guangdong, China
