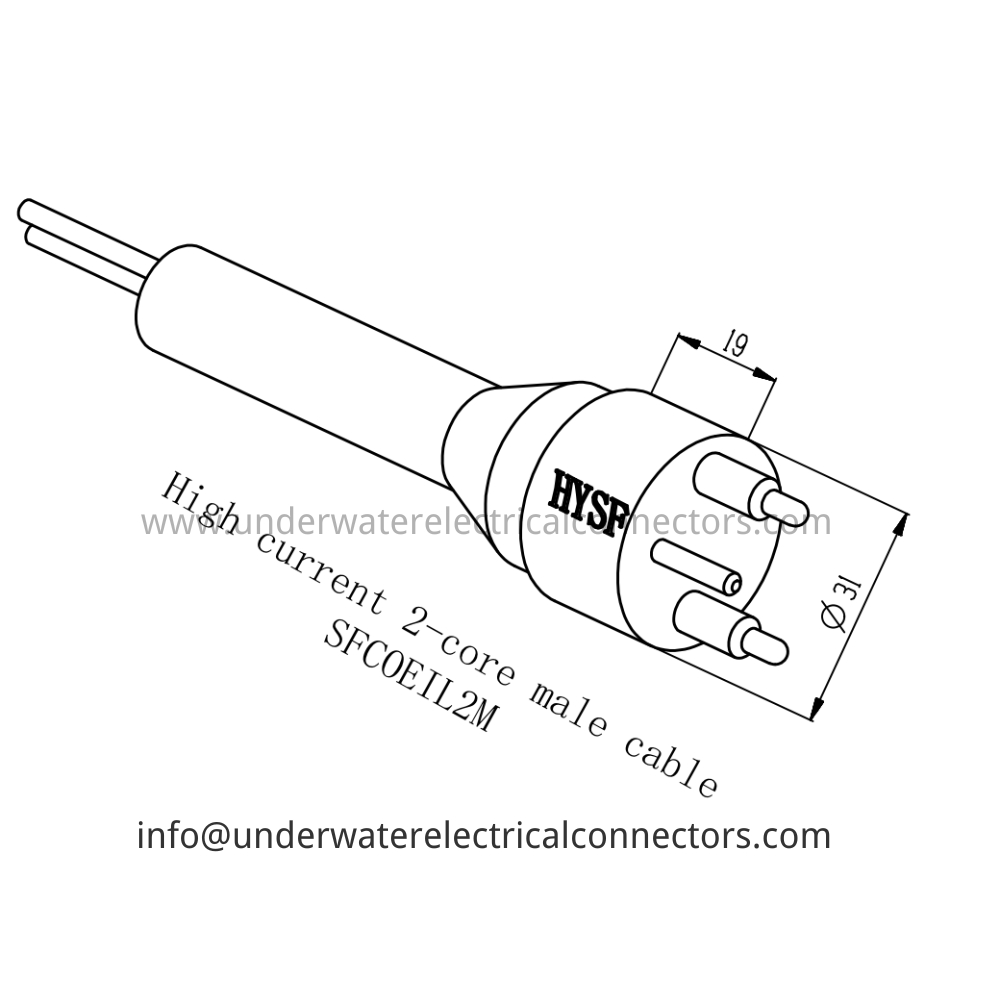

HYSF SFCOEIL2M is a high-current 2-pin male inline cable connector with PU overmold. IP68 rated, 60 MPa tested, designed for heavy power transmission in micro-ROVs, thrusters, battery packs and deepsea high-power applications up to 6000 m.
The HYSF SFCOEIL2M delivers massive current handling in a compact inline profile with tapered PU overmold, enabling reliable high-power cable termination and splicing in constrained spaces. Only 19 mm grip length with robust strain relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully encapsulated in black polyurethane. Pre-terminated with 2 × 12 AWG PTFE leads for extreme current capacity.
The go-to solution for high-power thruster umbilicals, ROV main power feeds, deepsea battery connections and demanding subsea systems requiring maximum current in minimal diameter. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFCOEIL2M
Brand: HYSF
Type: High Current 2-Core Male Inline Cable
Gender: Male
Pin Count: 2
Contact Material: Gold-plated Brass
Current Rating: 60A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 31 mm
Grip Length: 19 mm
Cable: 2 × 12 AWG PTFE Leads
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: High-Power Thruster Tethers, ROV Main Power Feeds, Deepsea Battery Connections, Heavy-Duty Subsea Power Transmission
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Female Connectors
Place of Origin: Guangdong, China
