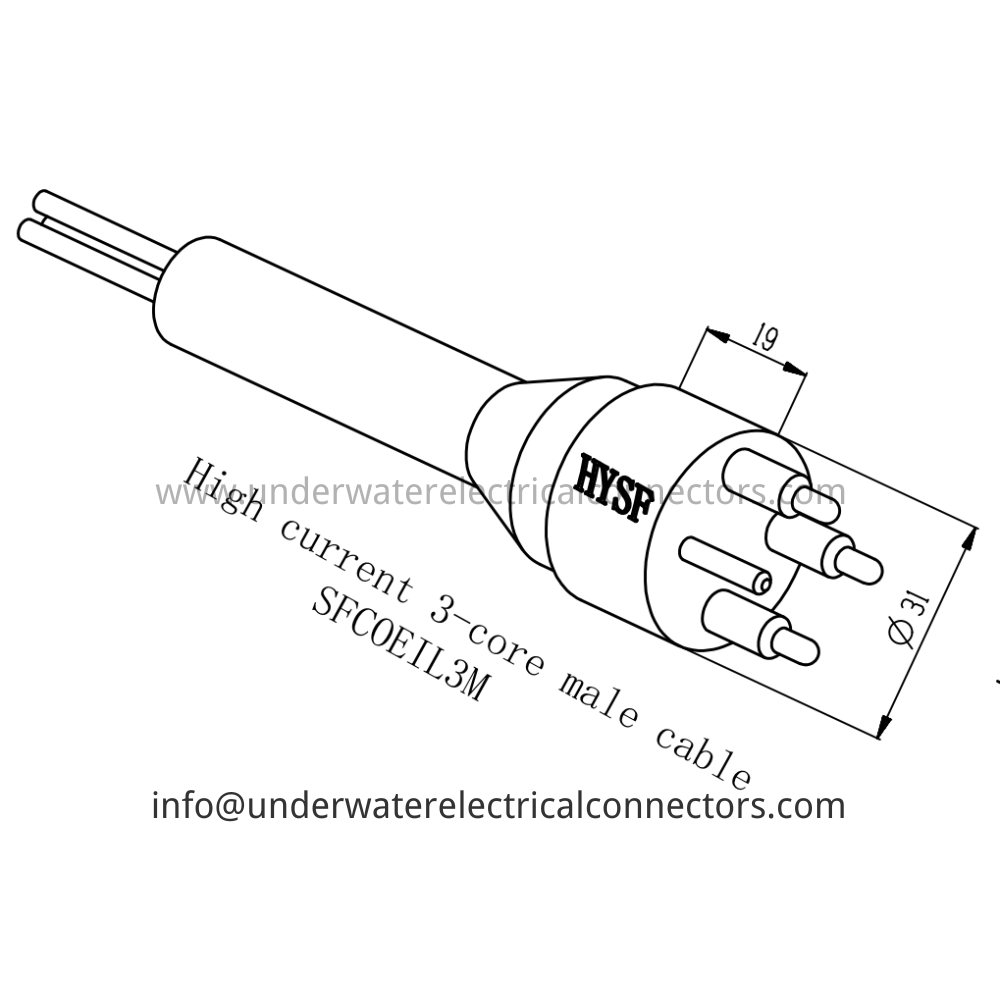

HYSF SFCOEIL3M is a high-current 3-pin male inline cable connector with PU overmold. IP68 rated, 60 MPa tested, designed for combined high-power + control/signal transmission in ROVs, thrusters, actuators and deepsea hybrid power applications up to 6000 m.
The HYSF SFCOEIL3M delivers high current capacity with additional control channels in a compact inline profile with tapered PU overmold, enabling reliable hybrid cable termination and splicing in constrained spaces. Only 19 mm grip length with robust strain relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully encapsulated in black polyurethane. Pre-terminated with 3 × 14 AWG PTFE leads (typically 2 high-power + 1 control/signal).
The preferred solution for thruster power + control umbilicals, actuator interfaces, hybrid battery feeds and demanding subsea systems requiring combined high current and auxiliary channels. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFCOEIL3M
Brand: HYSF
Type: High Current 3-Core Male Inline Cable
Gender: Male
Pin Count: 3
Contact Material: Gold-plated Brass
Current Rating: 50A on power pins, 10A on signal pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 31 mm
Grip Length: 19 mm
Cable: 3 × 14 AWG PTFE Leads
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: High-Power + Control Umbilicals, Thruster Power/Signal Feeds, Hybrid Actuator Connections, Deepsea Combined Power Inline Splicing
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Female Connectors
Place of Origin: Guangdong, China
