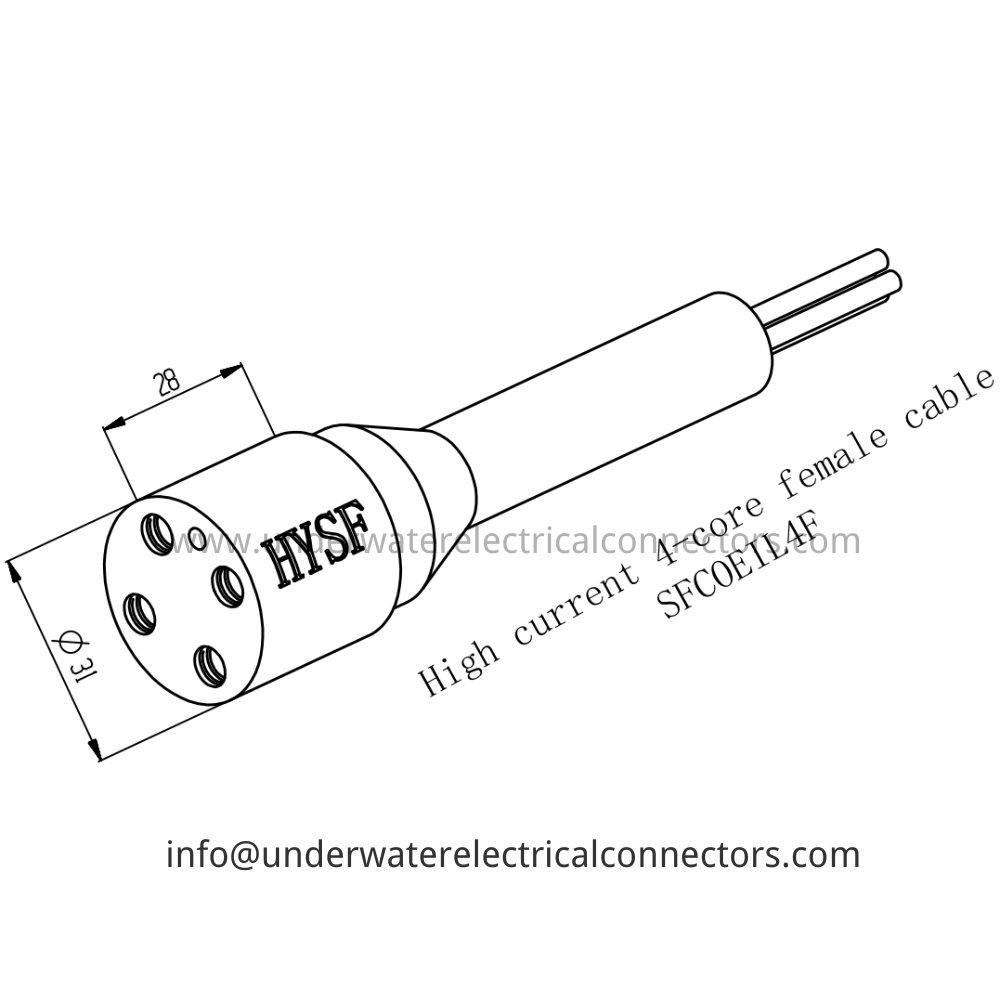

HYSF SFCOEIL4F is a high-current 4-pin female inline cable connector with PU overmold. IP68 rated, 60 MPa tested, designed for Gigabit Ethernet + power tethers in ROVs, high-resolution cameras, Ethernet-enabled thrusters and deepsea hybrid data/power applications up to 6000 m.
The HYSF SFCOEIL4F delivers full 1000BASE-T Gigabit Ethernet combined with power in a compact inline profile with tapered PU overmold, enabling reliable hybrid cable termination and splicing in constrained spaces. Only 28 mm grip length with robust strain relief.
Precision 316L stainless steel insert with gold-plated brass sockets, fully encapsulated in black polyurethane. Pre-terminated with 4 × mixed AWG PTFE leads (typically 2 power + 2 twisted pairs for Ethernet).
The preferred solution for Ethernet-enabled thruster umbilicals, high-resolution camera feeds with power, hybrid sensor chains and deepsea hybrid cables requiring high-speed data and power in minimal cross-section. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFCOEIL4F
Brand: HYSF
Type: High Current 4-Core Female Inline Cable
Gender: Female
Pin Count: 4
Contact Material: Gold-plated Brass
Current Rating: 30A on power pins, 8A on data pins
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 31 mm
Grip Length: 28 mm
Cable: 4 × mixed AWG PTFE Leads (Gigabit Ethernet + Power capable)
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Power Ultra-Miniature Tethers, High-Resolution Camera Chains with Power, Ethernet + Power Sensor Umbilicals, Deepsea Hybrid Inline Splicing
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Male Connectors
Place of Origin: Guangdong, China
