HYSF SFCOEILRA2M is a high-current 2-pin male right-angle (L-shape) inline cable connector with PU overmold. IP68 rated, 60 MPa tested, designed for space-constrained high-power connections in ROVs, thrusters, battery packs and deepsea applications up to 6000 m where straight connectors won't fit.

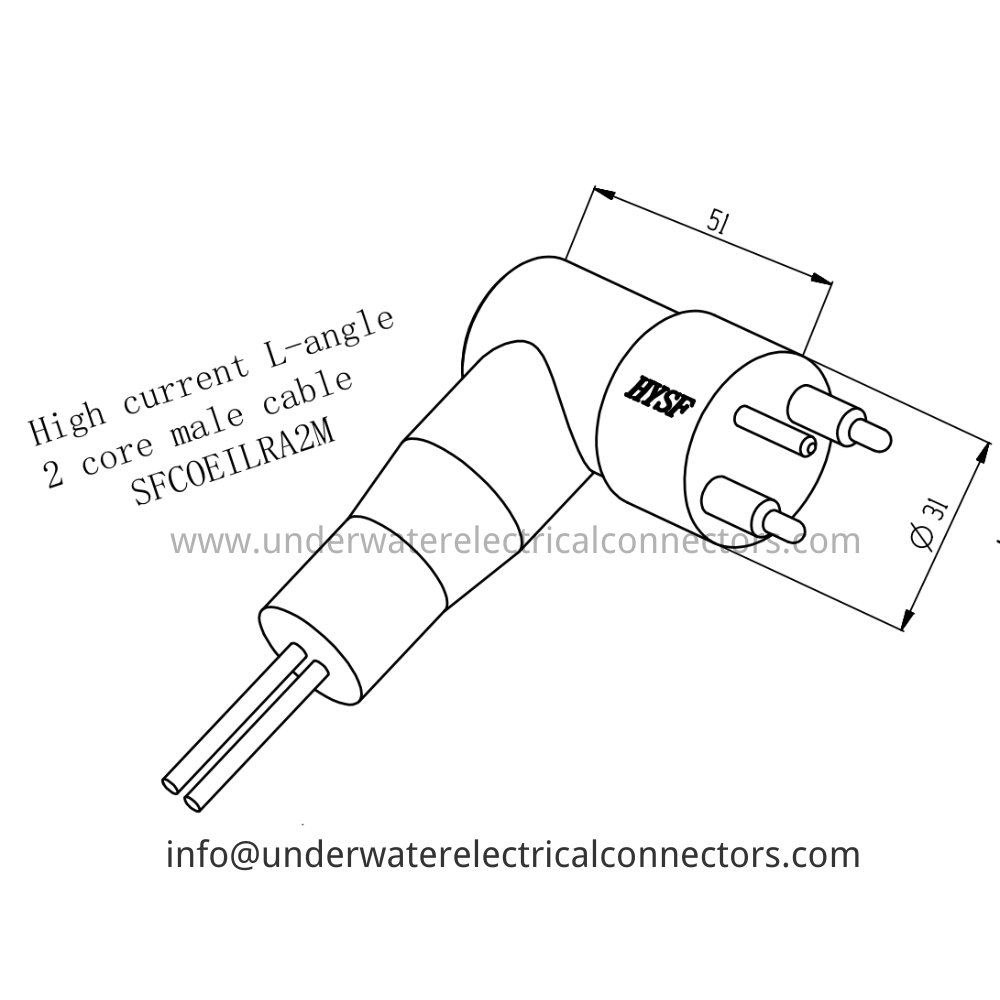

The HYSF SFCOEILRA2M features a compact 90° right-angle design with tapered PU overmold, perfect for tight installation spaces while maintaining full high-current capability. 51 mm overall length with integrated strain relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully encapsulated in black polyurethane. Pre-terminated with 2 × 12 AWG PTFE leads for extreme current handling.
Ideal for right-angle thruster power connections, low-profile battery interfaces, winch umbilicals and any subsea application requiring high current in confined or angled routing. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFCOEILRA2M
Brand: HYSF
Type: High Current 2-Core Male Right-Angle Inline Cable
Gender: Male
Pin Count: 2
Contact Material: Gold-plated Brass
Current Rating: 60A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 31 mm
Overall Length: 51 mm
Cable: 2 × 12 AWG PTFE Leads
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Right-Angle Thruster Power Connections, Low-Profile Battery Interfaces, Winch Umbilicals, Space-Constrained High-Power Tethers
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Female Connectors
Place of Origin: Guangdong, China
