HYSF SFCOEILRA6F High current 6-core L-angle female cable Underwater Connector

Product Description

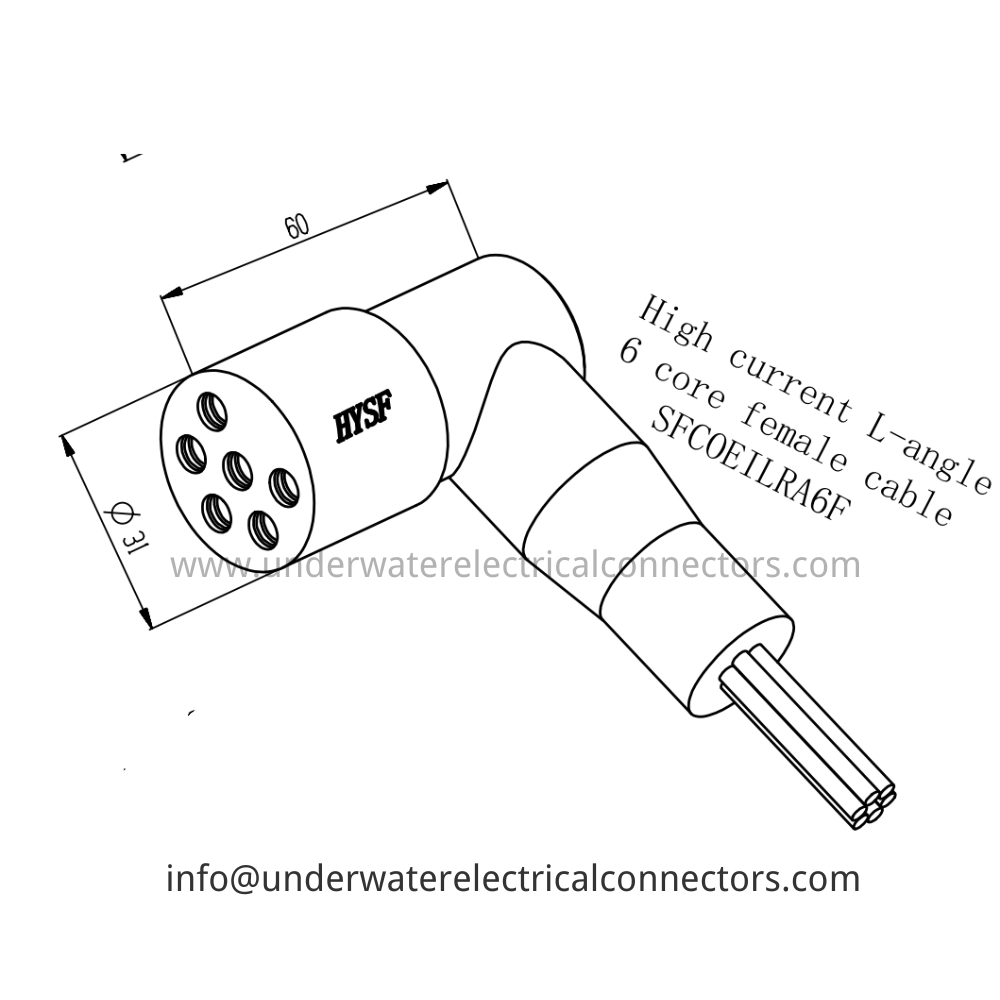

The HYSF SFCOEILRA6F features a compact 90° right-angle design with tapered PU overmold, perfect for tight installation spaces while maintaining full high-current capability with Gigabit Ethernet and additional power/sensor channels. 60 mm overall length with integrated strain relief.

Precision 316L stainless steel insert with gold-plated brass sockets, fully encapsulated in black polyurethane. Pre-terminated with 6 × mixed AWG PTFE leads (typically 4 for Gigabit Ethernet + 2 power/sensor).

Ideal for right-angle multi-channel Ethernet + power connections, advanced camera interfaces with power, hybrid thruster umbilicals and any subsea application requiring combined high-speed data and power in confined or angled routing. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.

Product Parameter

Model: SFCOEILRA6F

Brand: HYSF

Type: High Current 6-Core Female Right-Angle Inline Cable

Gender: Female

Pin Count: 6

Contact Material: Gold-plated Brass

Current Rating: 30A on power pins, 8A on data pins

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Diameter: 31 mm

Overall Length: 60 mm

Cable: 6 × mixed AWG PTFE Leads

Overmold: Black Polyurethane (PU)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Right-Angle Gigabit Ethernet + Dual Power/Sensor, Multi-Channel Thruster Connections, Advanced Camera Feeds with Power, Space-Constrained High-Density Hybrid Tethers

Certification: ISO9001-2015

Compatibility: Corresponding High-Current Male Connectors

Place of Origin: Guangdong, China
