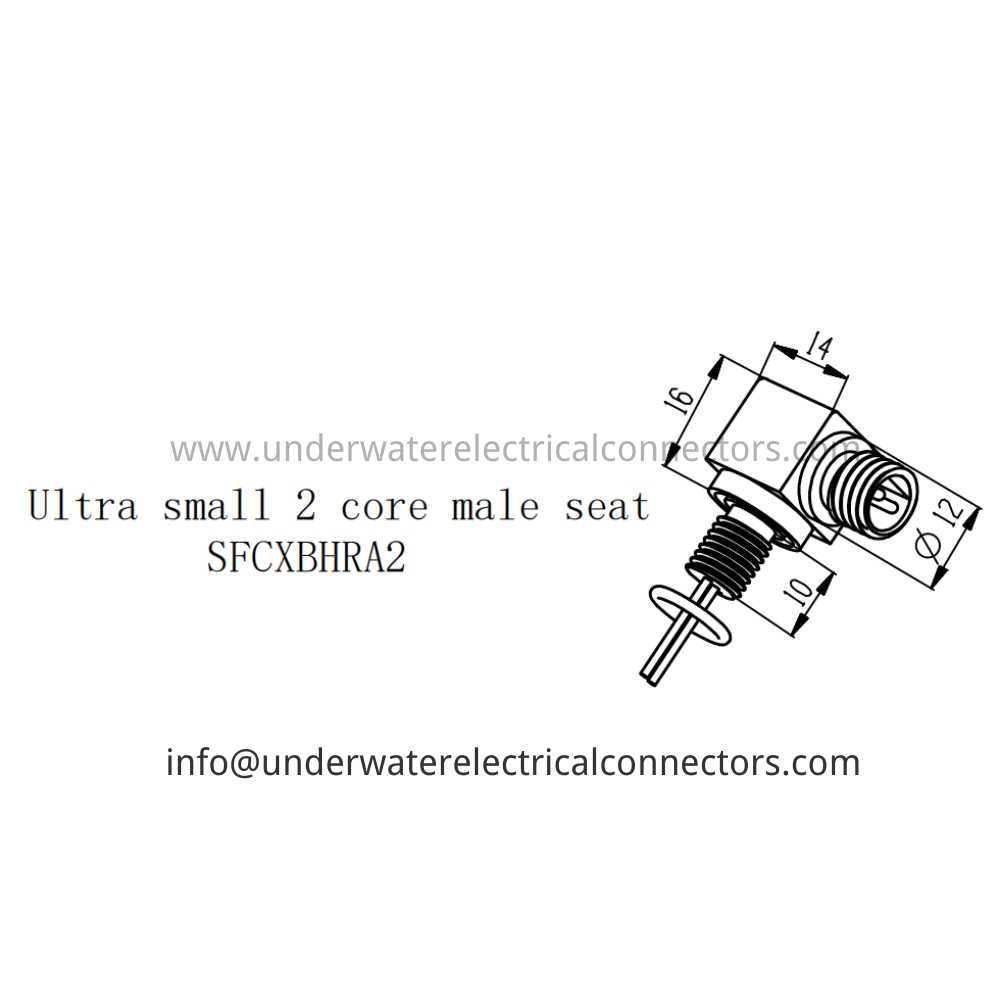

HYSF SFCXBHRA2 is an ultra-compact 2-pin male bulkhead connector with only 16×14 mm footprint. IP68 rated, 60 MPa tested, designed for high-current power feedthroughs in the most space-restricted micro-ROVs, miniature AUVs, ultra-thin pressure housings and compact deepsea instrumentation up to 6000 m.
The HYSF SFCXBHRA2 achieves the smallest possible 2-pin male bulkhead form factor with just 19 mm body thickness, making it the go-to solution for power penetrators where every millimeter counts.
Precision-machined 316L stainless steel body with gold-plated brass pins, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 2 × 18 AWG PTFE leads for high current handling.
Ideal for ultra-miniature thruster drives, compact battery modules, micro-LED arrays and the smallest deepsea payloads requiring reliable high-power transmission in extreme space constraints. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFCXBHRA2
Brand: HYSF
Type: Ultra Small 2-Core Male Bulkhead Connector
Gender: Male
Pin Count: 2
Contact Material: Gold-plated Brass
Current Rating: 25A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Footprint: 16 × 14 mm
Body Thickness: 19 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated 2 × 18 AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Ultra-Miniature Thruster Penetrators, Compact Battery Ports, Micro-LED Power Feeds, Extreme Space-Constrained Deepsea Power Distribution
Certification: ISO9001-2015
Compatibility: SFCXPIL2F Females
Place of Origin: Guangdong, China
