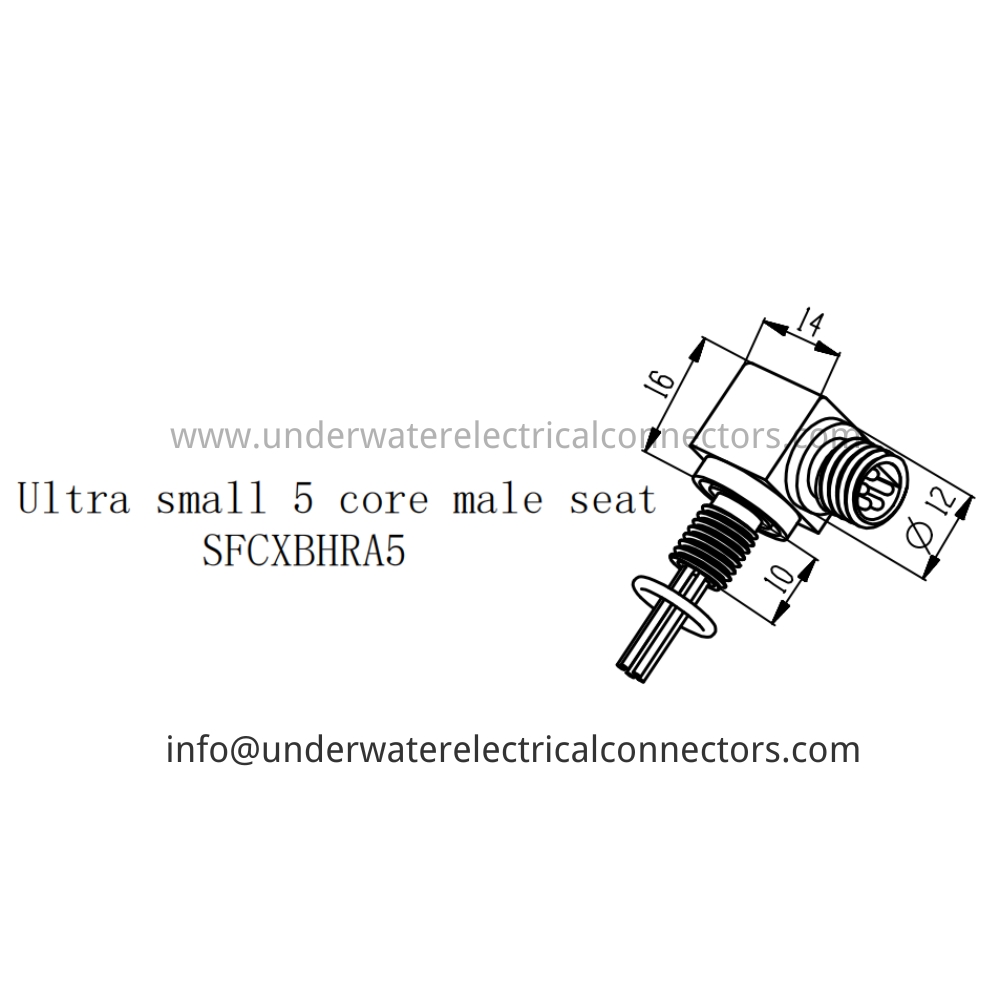

HYSF SFCXBHRA5 Ultra small 5 core male seat Underwater Connector

Product Description

The HYSF SFCXBHRA5 delivers full 1000BASE-T Gigabit Ethernet plus one dedicated power/ground line in the smallest possible male bulkhead form factor with just 19 mm body thickness, providing the perfect balance of high-speed data and power in extreme space constraints.

Precision-machined 316L stainless steel body with gold-plated brass pins, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 5 × 24 AWG PTFE leads. Supports 1000BASE-T Gigabit Ethernet (4 pins) + one high-current power/ground line.

Ideal for ultra-miniature high-resolution camera feeds with power, Ethernet-enabled micro-sensor arrays requiring local power, compact ROV control networks and the smallest deepsea payloads needing hybrid data/power. ISO9001-2015 certified with 100% hyperbaric testing.

Product Parameter

Model: SFCXBHRA5

Brand: HYSF

Type: Ultra Small 5-Core Male Bulkhead Connector

Gender: Male

Pin Count: 5

Contact Material: Gold-plated Brass

Current Rating: 8A per Pin (higher on power pin)

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Sealing: Double O-Ring

Footprint: 16 × 14 mm

Body Thickness: 19 mm

Mounting: Threaded with Nut & Washer

Cable: Pre-terminated 5 × 24 AWG PTFE Leads (Gigabit Ethernet + Power capable)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Gigabit Ethernet + Power Ultra-Miniature Penetrators, Micro PTZ Camera Feeds with Power, Ethernet + Power Sensor Ports, Extreme Space-Constrained Deepsea Hybrid Applications

Certification: ISO9001-2015

Compatibility: SFCXPIL5F Females

Place of Origin: Guangdong, China
