HYSF SFCXDBH20M Ultra small 20 core male seat Underwater Connector

Product Description

The HYSF SFCXDBH20M delivers an unprecedented 20 channels in the ultra-small series, providing ultimate connectivity for the most demanding space-limited deepsea applications.

Precision-machined 316L stainless steel body with gold-plated brass pins, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 20 color-coded PTFE leads. Typical configuration supports multiple Gigabit Ethernet (up to 12-16 pins) + remaining pins for power, RS485/RS232, sensors or actuators.

The flagship high-density solution for next-generation ultra-compact ROVs, multi-function manipulators, high-resolution multi-camera arrays, complex sensor suites and highly integrated deepsea payloads requiring the maximum channel count in the smallest possible volume. ISO9001-2015 certified with 100% hyperbaric testing.

Product Parameter

Model: SFCXDBH20M

Brand: HYSF

Type: Ultra Small 20-Core Male Bulkhead Connector

Gender: Male

Pin Count: 20

Contact Material: Gold-plated Brass

Current Rating: 5A per Pin (higher on power pins)

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Sealing: Double O-Ring

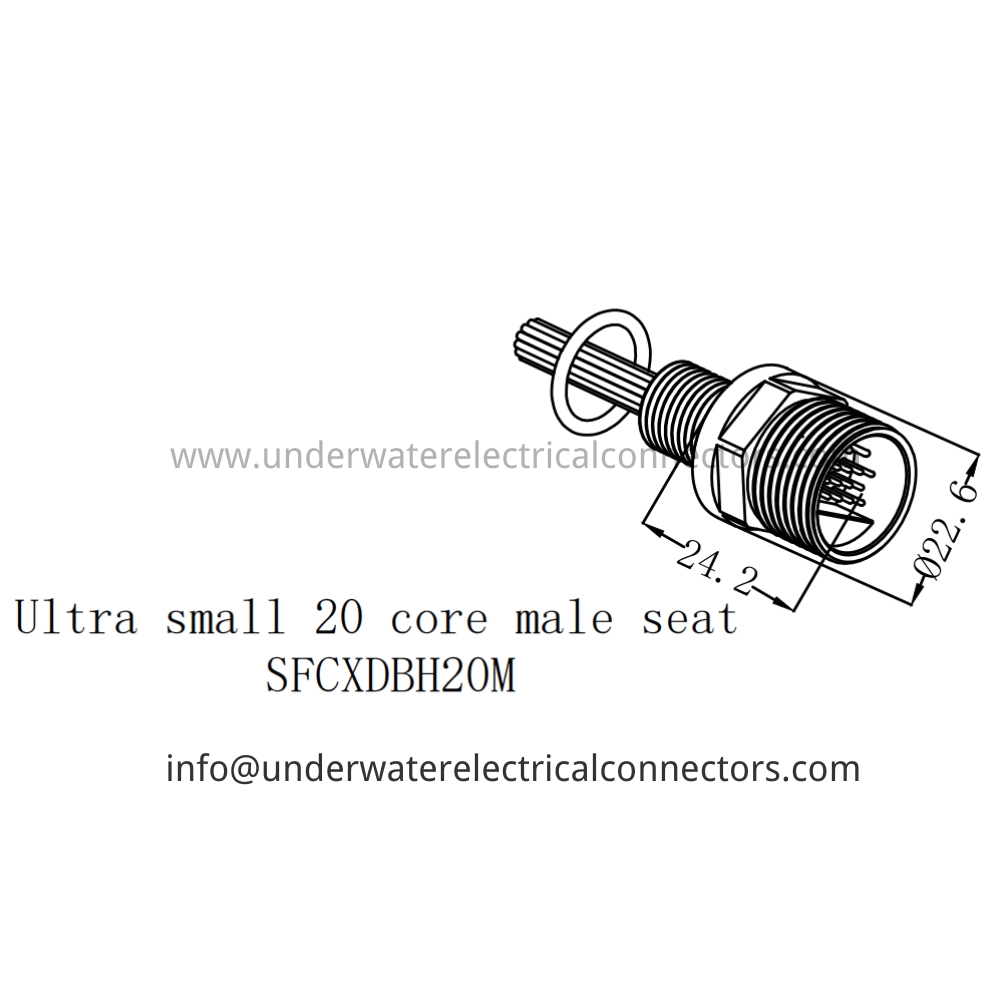

Footprint: 24.2 × 22.6 mm

Body Thickness: 22 mm (approx)

Mounting: Threaded with Nut & Washer

Cable: Pre-terminated 20-color PTFE Leads

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Multi-Channel Gigabit Ethernet + Extensive Power/Sensor Penetrators, Multi-Camera Arrays, Advanced Manipulator Control, Extreme Space-Constrained Deepsea Ultra-High-Density Applications

Certification: ISO9001-2015

Compatibility: SFCXIL20F Females

Place of Origin: Guangdong, China
