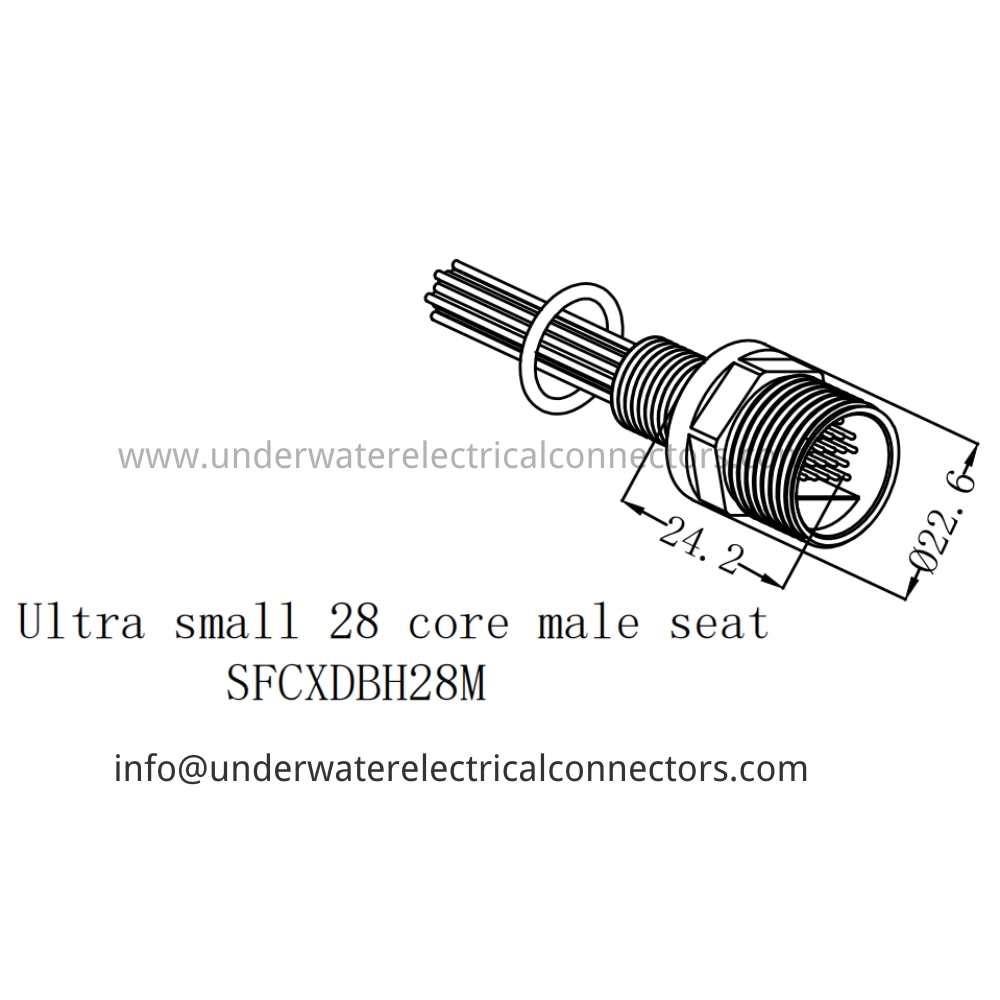

HYSF SFCXDBH28M Ultra small 28 core male seat Underwater Connector

Product Description

The HYSF SFCXDBH28M delivers an astonishing 28 channels in the ultra-small series, providing unmatched connectivity for the most complex and space-limited deepsea systems.

Precision-machined 316L stainless steel body with gold-plated brass pins, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 28 color-coded PTFE leads. Typical configuration supports multiple Gigabit Ethernet (up to 20 pins) + remaining pins for power, RS485/RS232, sensors or actuators.

The pinnacle high-density solution for next-generation ultra-compact ROVs, multi-function manipulators, high-resolution multi-camera arrays, complex sensor/actuator suites and highly integrated deepsea payloads requiring the absolute maximum channel count in the smallest possible volume. ISO9001-2015 certified with 100% hyperbaric testing.

Product Parameter

Model: SFCXDBH28M

Brand: HYSF

Type: Ultra Small 28-Core Male Bulkhead Connector

Gender: Male

Pin Count: 28

Contact Material: Gold-plated Brass

Current Rating: 5A per Pin (higher on power pins)

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Sealing: Double O-Ring

Footprint: 24.2 × 22.6 mm

Body Thickness: 22 mm (approx)

Mounting: Threaded with Nut & Washer

Cable: Pre-terminated 28-color PTFE Leads

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Massive Multi-Channel Gigabit Ethernet + Power/Sensor Penetrators, Multi-Camera Arrays, Advanced Manipulator Control, Extreme Space-Constrained Deepsea Ultra-High-Density Applications

Certification: ISO9001-2015

Compatibility: SFCXIL28F Females

Place of Origin: Guangdong, China
