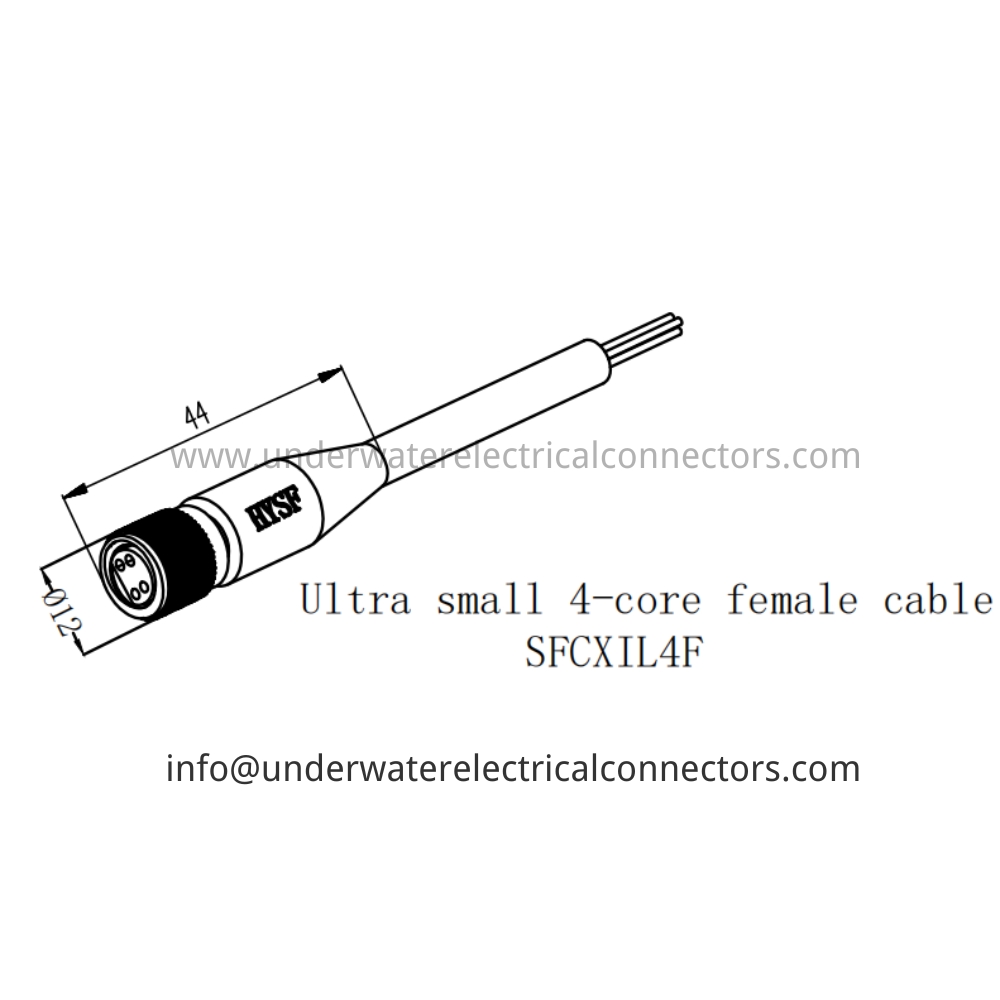

HYSF SFCXIL4F is an ultra-compact 4-pin female inline cable connector with PU overmold. IP68 rated, 60 MPa tested, ideal for Gigabit Ethernet tethers in the most space-restricted micro-ROVs, miniature AUVs, ultra-thin umbilicals and deepsea inline splicing up to 6000 m.
The HYSF SFCXIL4F delivers full 1000BASE-T Gigabit Ethernet in the smallest possible inline profile with tapered PU overmold, enabling seamless cable termination and splicing where space is extremely limited. Only 44 mm grip length with integrated strain relief.
Precision 316L stainless steel insert with gold-plated brass sockets, fully encapsulated in black polyurethane. Pre-terminated with 4 × 24 AWG PTFE leads (two shielded twisted pairs). Supports 1000BASE-T Gigabit Ethernet with excellent signal integrity.
The definitive choice for ultra-miniature ROV Ethernet umbilicals, compact high-resolution camera feeds, Ethernet sensor chains and deepsea hybrid cables requiring high-speed data in minimal cross-section. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFCXIL4F
Brand: HYSF
Type: Ultra Small 4-Core Female Inline Cable
Gender: Female
Pin Count: 4
Contact Material: Gold-plated Brass
Current Rating: 8A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Profile: 16 × 14 mm
Grip Length: 44 mm
Cable: 4 × 24 AWG PTFE Leads (Gigabit Ethernet capable)
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet Ultra-Miniature Tethers, Micro High-Resolution Camera Chains, Ethernet Sensor Umbilicals, Deepsea Inline Splicing
Certification: ISO9001-2015
Compatibility: SFCXBHRA4 Males
Place of Origin: Guangdong, China
