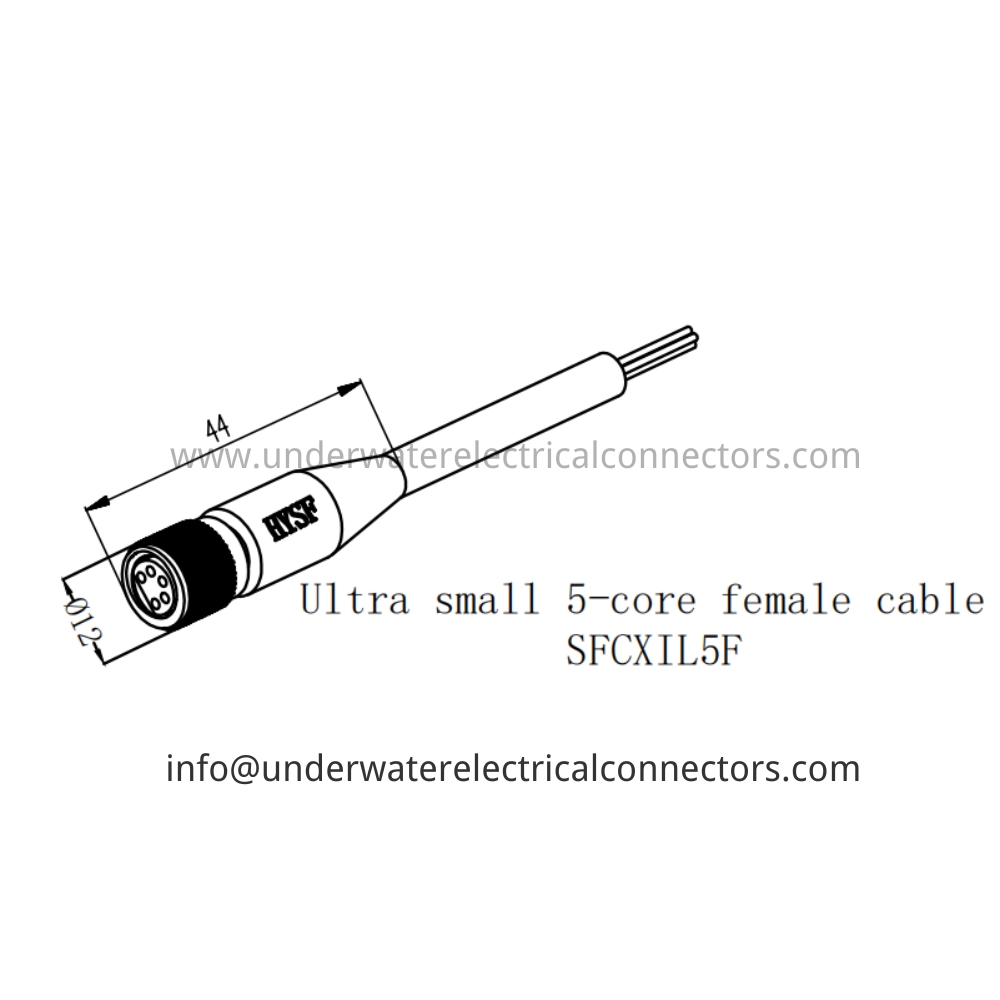

HYSF SFCXIL5F Ultra small 5-core female cable Underwater Connector

Product Description

The HYSF SFCXIL5F delivers full 1000BASE-T Gigabit Ethernet plus one dedicated power line in the smallest possible inline profile with tapered PU overmold, enabling seamless cable termination and splicing where space is extremely limited. Only 44 mm grip length with integrated strain relief.

Precision 316L stainless steel insert with gold-plated brass sockets, fully encapsulated in black polyurethane. Pre-terminated with 5 × 24 AWG PTFE leads. Supports 1000BASE-T Gigabit Ethernet (4 pins) + one high-current power/ground line.

The definitive choice for ultra-miniature ROV hybrid umbilicals, compact high-resolution camera feeds with power, Ethernet + power sensor chains and deepsea hybrid cables requiring high-speed data and power in minimal cross-section. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.

Product Parameter

Model: SFCXIL5F

Brand: HYSF

Type: Ultra Small 5-Core Female Inline Cable

Gender: Female

Pin Count: 5

Contact Material: Gold-plated Brass

Current Rating: 8A per Pin (higher on power pin)

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Profile: 16 × 14 mm

Grip Length: 44 mm

Cable: 5 × 24 AWG PTFE Leads (Gigabit Ethernet + Power capable)

Overmold: Black Polyurethane (PU)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Gigabit Ethernet + Power Ultra-Miniature Tethers, Micro PTZ Camera Chains with Power, Ethernet + Power Sensor Umbilicals, Deepsea Hybrid Inline Splicing

Certification: ISO9001-2015

Compatibility: SFCXBHRA5 Males

Place of Origin: Guangdong, China
