HYSF SFHFTZBHM is a high-frequency coaxial male bulkhead connector optimized for superior RF signal feedthrough in underwater environments. IP68 rated, 60 MPa tested, designed for demanding high-frequency data links in ROVs, advanced sonar systems, high-resolution underwater cameras and deepsea communication applications up to 6000 m.

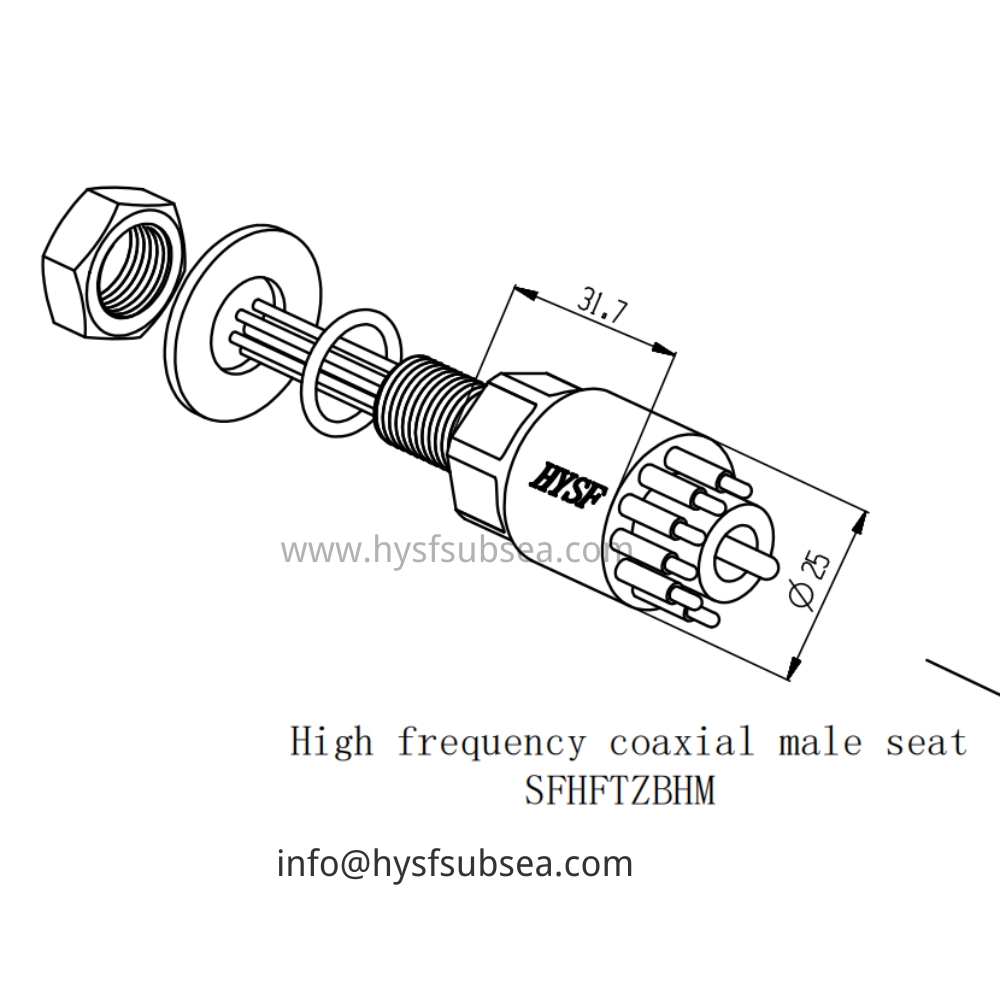

The HYSF SFHFTZBHM delivers exceptional high-frequency coaxial transmission in a robust bulkhead mount design, ideal for permanent RF penetrations requiring minimal loss and maximum bandwidth in subsea housings. 31.7 mm body length with threaded mounting nut and washer for secure panel installation.
Precision-machined 316L stainless steel body with gold-plated center contact and premium PTFE dielectric for outstanding high-frequency performance. Double O-ring sealing ensures full pressure resistance.
The premier choice for high-frequency underwater RF bulkhead penetrations, advanced sonar interfaces, ultra-high-speed video feedthroughs, precision acoustic systems and critical deepsea applications demanding superior coaxial signal fidelity. ISO9001-2015 certified with 100 MPa burst validation.
Model: SFHFTZBHM
Brand: HYSF
Type: High Frequency Coaxial Male Bulkhead Connector
Gender: Male
Connector Type: Coaxial (High Frequency Optimized)
Impedance: 50 Ohm
Frequency Range: DC to 18 GHz
VSWR: <1.3 (typical)
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Diameter: 25 mm
Body Length: 31.7 mm
Mounting: Threaded with Nut & Washer
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: High-Frequency Underwater RF Bulkhead Penetrations, Advanced Sonar Interfaces, Ultra-High-Speed Video Feedthroughs, Precision Acoustic Systems, Deepsea High-Bandwidth Communication
Certification: ISO9001-2015
Compatibility: Corresponding High Frequency Coaxial Female Plugs
Place of Origin: Guangdong, China
