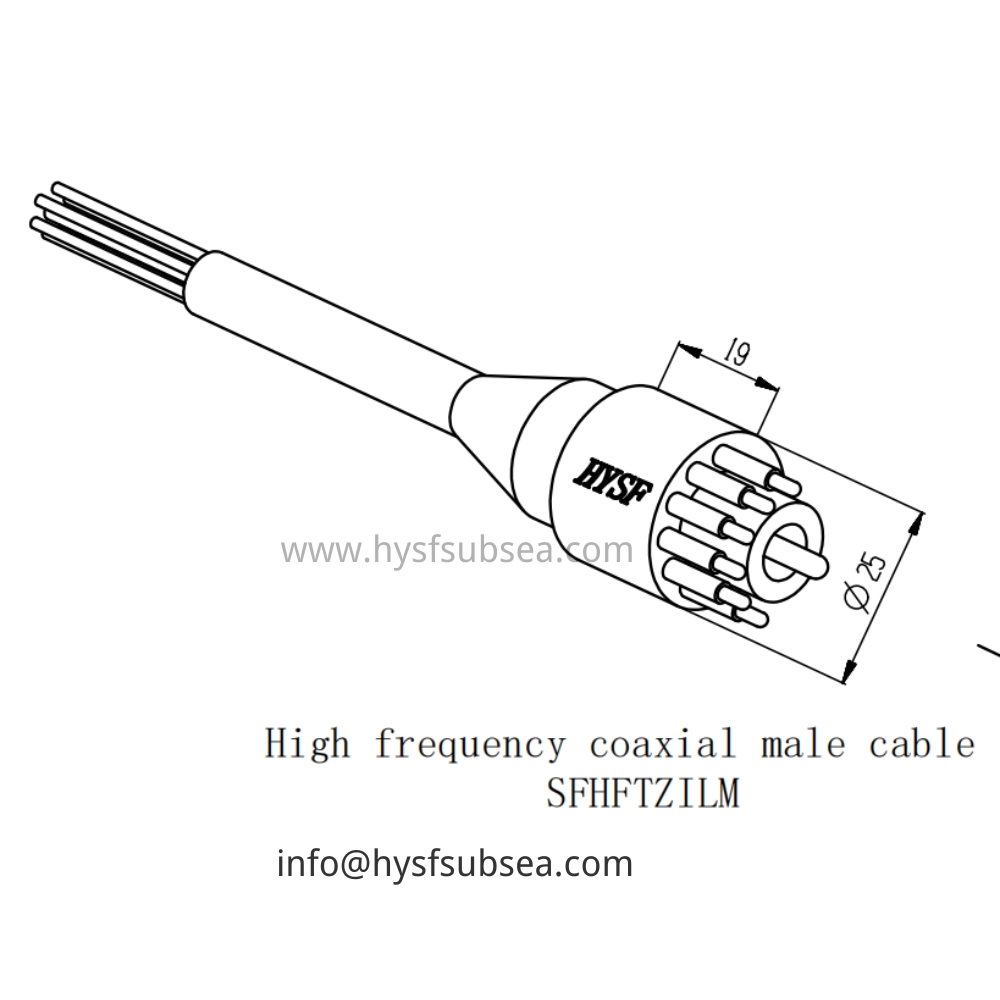

HYSF SFHFTZILM High frequency coaxial male cable Underwater Connector

Product Description

The HYSF SFHFTZILM delivers exceptional high-frequency coaxial transmission in a compact inline cable profile with tapered PU overmold, enabling reliable high-bandwidth splicing and termination in constrained subsea spaces. 19 mm grip length with robust strain relief.

Precision-machined 316L stainless steel body with gold-plated center contact and premium PTFE dielectric for outstanding high-frequency performance. Fully encapsulated in black polyurethane for superior environmental protection.

The premier choice for high-frequency underwater RF umbilicals, advanced sonar feeds, ultra-high-speed video links, precision acoustic modem interfaces and critical deepsea systems demanding superior coaxial signal fidelity. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.

Product Parameter

Model: SFHFTZILM

Brand: HYSF

Type: High Frequency Coaxial Male Inline Cable

Gender: Male

Connector Type: Coaxial (High Frequency Optimized)

Impedance: 50 Ohm

Frequency Range: DC to 18 GHz

VSWR: <1.3 (typical)

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Diameter: 25 mm

Grip Length: 19 mm

Cable: Pre-terminated Coaxial Cable

Overmold: Black Polyurethane (PU)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: High-Frequency Underwater RF Umbilicals, Advanced Sonar Feeds, Ultra-High-Speed Video Links, Precision Acoustic Interfaces, Deepsea High-Bandwidth Communication

Certification: ISO9001-2015

Compatibility: Corresponding High Frequency Coaxial Female Receptacles

Place of Origin: Guangdong, China
