HYSF SFHPDXB H1F is a single-core ultra-high-current female bulkhead socket connector with extended body for heavy power feedthroughs. IP68 rated, 60 MPa tested, designed for extreme power applications such as large thrusters, winches, battery banks and deepsea high-amperage systems up to 6000 m.
The HYSF SFHPDXB H1F provides single massive current path in a robust bulkhead mount design with extended 58 mm body, ideal for permanent high-amperage power penetrations in demanding subsea environments.
Precision-machined 316L stainless steel body with oversized gold-plated copper sockets, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with high-gauge PTFE lead for extreme current capacity.
The ultimate choice for large thruster penetrators, winch power ports, deepsea battery feedthroughs and any subsea system requiring the highest possible single-phase current rating. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFHPDXB H1F
Brand: HYSF
Type: Single Core High Current Female Bulkhead Socket
Gender: Female
Pin Count: 1
Contact Material: Gold-plated Copper
Current Rating: 200A continuous
Voltage Rating: 1000V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring

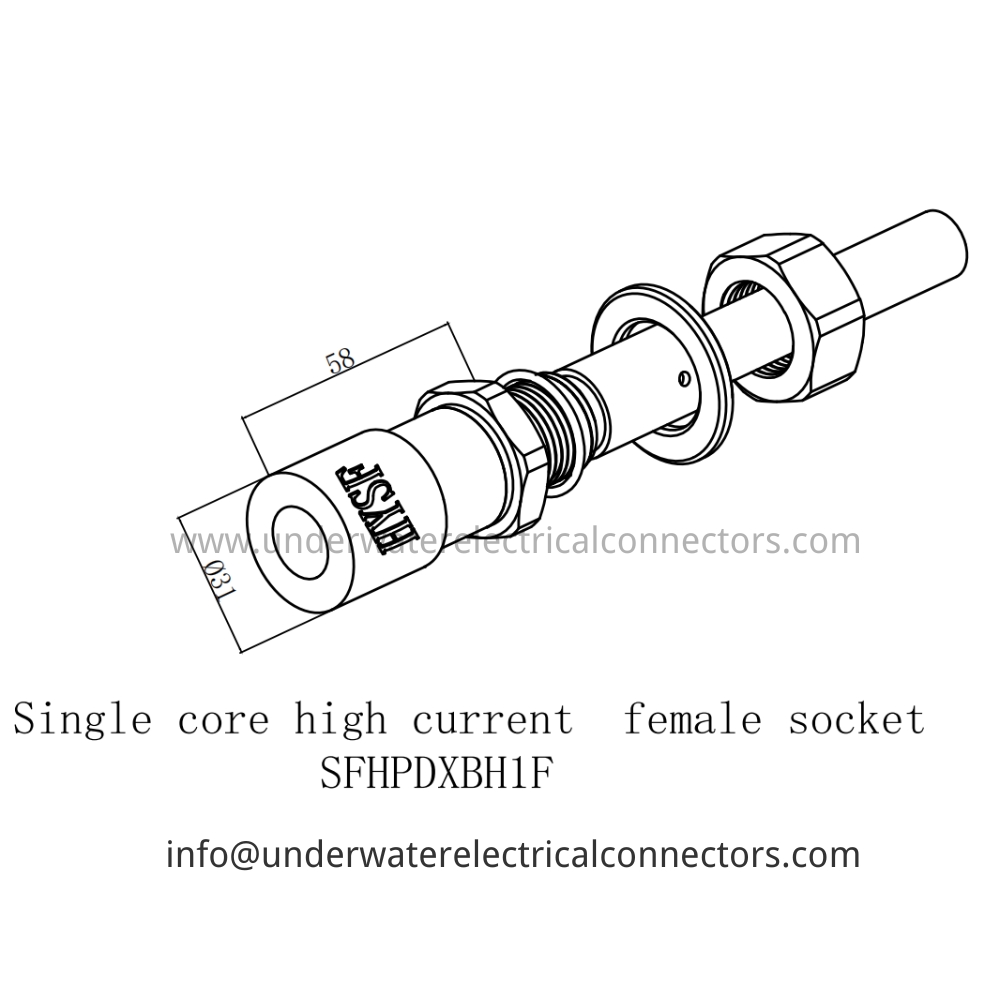

Body Diameter: 31 mm
Body Length: 58 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated High-Gauge PTFE Lead
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Large Thruster Penetrators, Winch Power Ports, Deepsea Battery Feedthroughs, Extreme High-Amperage Subsea Power Systems
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Male Plugs
Place of Origin: Guangdong, China
