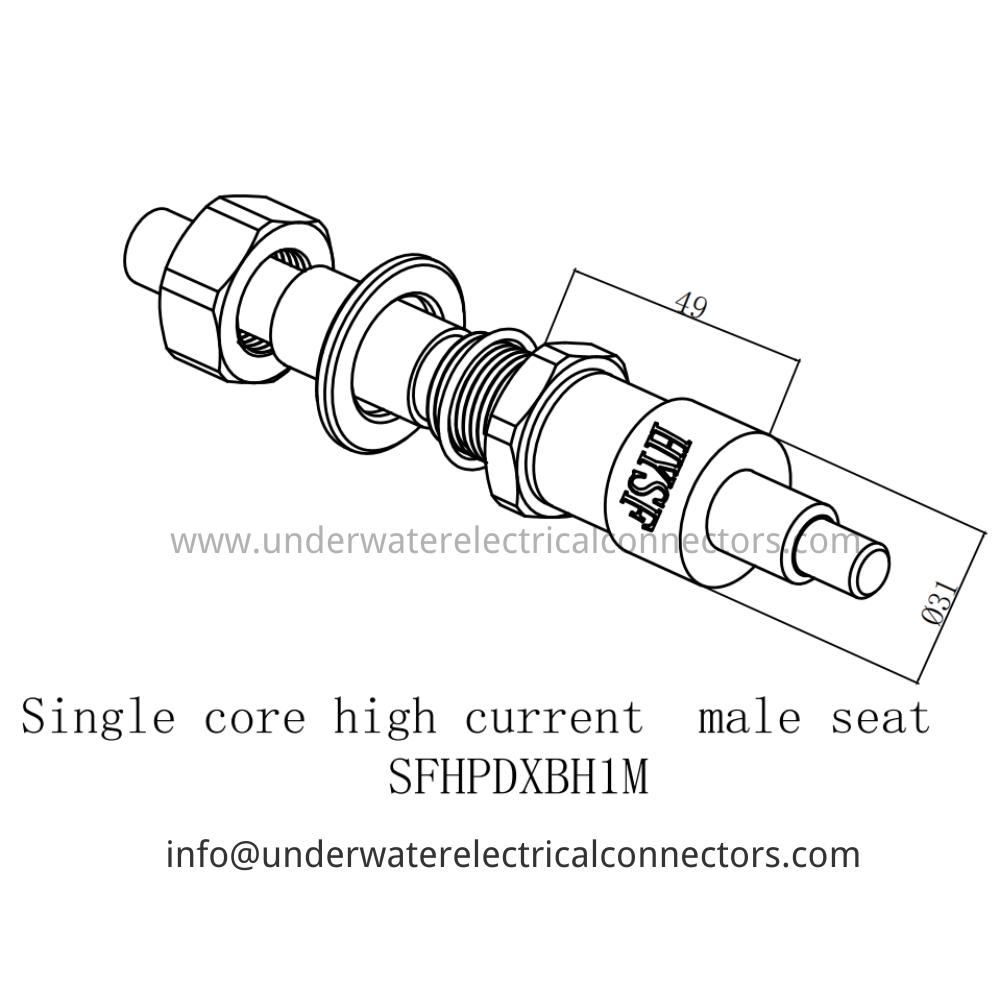

HYSF SFHPDXB H1M is a single-core ultra-high-current male bulkhead seat connector with extended body for extreme power feedthroughs. IP68 rated, 60 MPa tested, designed for the highest amperage applications such as large thrusters, winches, battery banks and deepsea high-power systems up to 6000 m.
The HYSF SFHPDXB H1M provides a single massive current path in a robust bulkhead mount design with extended 49 mm body, perfect for permanent ultra-high-amperage power penetrations in the most demanding subsea environments.
Precision-machined 316L stainless steel body with oversized gold-plated copper pin, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with high-gauge PTFE lead for extreme current capacity.
The ultimate choice for large thruster penetrators, winch power ports, deepsea battery feedthroughs and any subsea system requiring the absolute highest single-phase current rating. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFHPDXB H1M
Brand: HYSF
Type: Single Core High Current Male Bulkhead Seat
Gender: Male
Pin Count: 1
Contact Material: Gold-plated Copper
Current Rating: 200A continuous
Voltage Rating: 1000V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Diameter: 31 mm
Body Length: 49 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated High-Gauge PTFE Lead
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Large Thruster Penetrators, Winch Power Ports, Deepsea Battery Feedthroughs, Extreme High-Amperage Subsea Power Systems
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Female Sockets
Place of Origin: Guangdong, China
