HYSF SFHPDXIL1F is a single-core ultra-high-current female inline cable connector (mother cable) with PU overmold. IP68 rated, 60 MPa tested, designed for extreme power transmission in large thrusters, winches, battery banks and deepsea high-amperage systems up to 6000 m.
The HYSF SFHPDXIL1F provides a single massive current path in a compact inline mother cable design with tapered PU overmold, enabling reliable high-amperage cable termination and splicing in demanding subsea environments. 28 mm grip length with robust strain relief.
Precision-machined 316L stainless steel insert with oversized gold-plated copper socket, fully encapsulated in black polyurethane. Pre-terminated with high-gauge PTFE lead for extreme current capacity.
The ultimate choice for high-power mother cable connections, large thruster umbilicals, winch power feeds, deepsea battery extensions and any subsea system requiring the highest possible single-phase current rating. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFHPDXIL1F
Brand: HYSF
Type: Single Core High Current Female Inline Cable (Mother Cable)
Gender: Female
Pin Count: 1
Contact Material: Gold-plated Copper
Current Rating: 200A continuous
Voltage Rating: 1000V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal

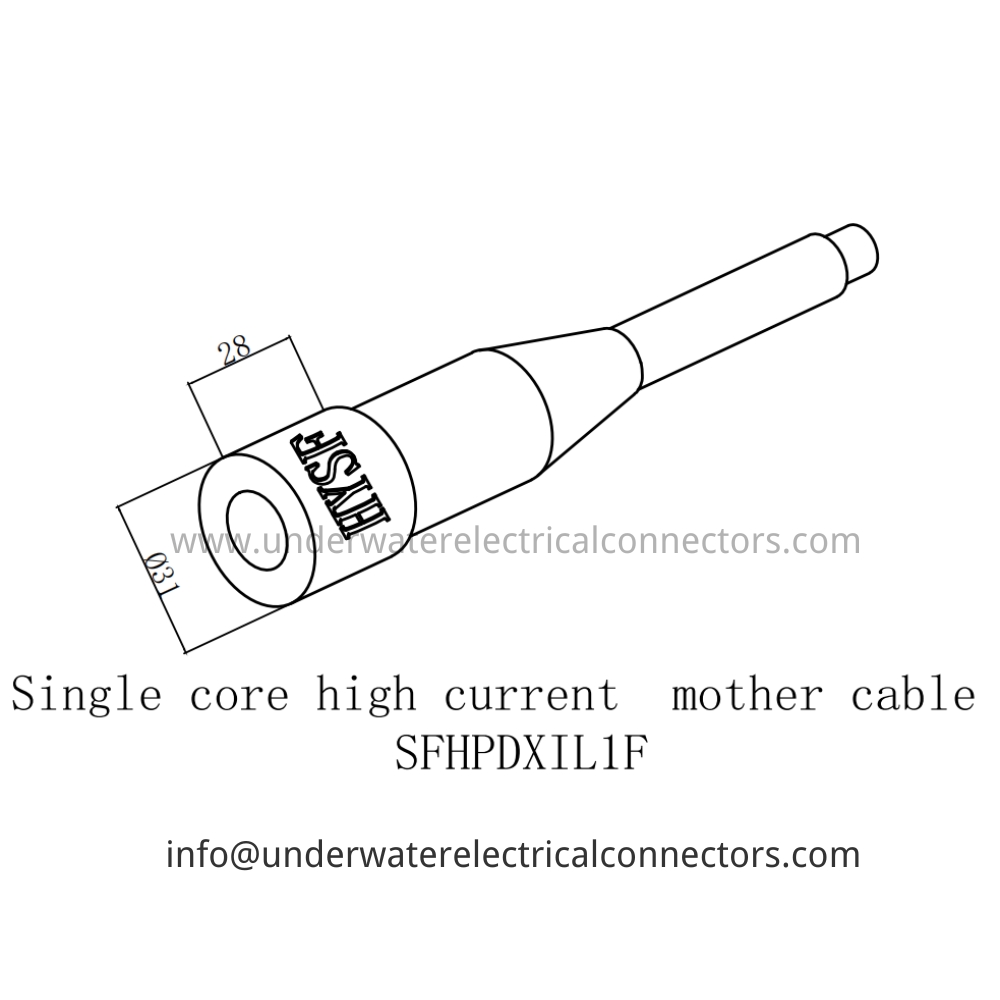

Body Diameter: 31 mm
Grip Length: 28 mm
Cable: Pre-terminated High-Gauge PTFE Lead
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Large Thruster Umbilicals, Winch Power Feeds, Deepsea Battery Extensions, Extreme High-Amperage Subsea Mother Cable Connections
Certification: ISO9001-2015
Compatibility: Corresponding High-Current Male Plugs
Place of Origin: Guangdong, China
