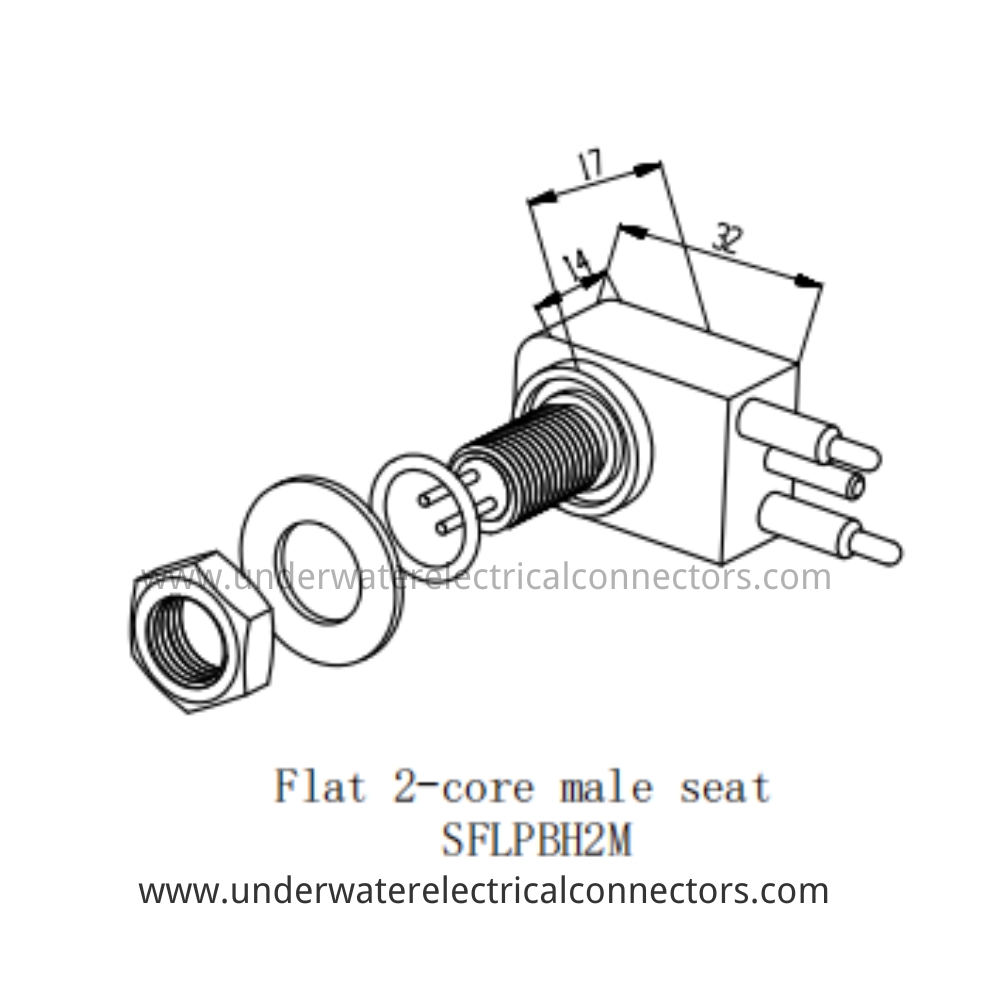

HYSF SFLPBH2M is an ultra-low-profile flat 2-pin male bulkhead connector with 32×17 mm footprint. IP68 rated, 60 MPa tested, designed for high-current power feedthroughs on space-critical AUVs, micro-ROVs, thruster pods, LED lighting panels and thin pressure housings up to 6000 m.
The HYSF SFLPBH2M provides 2 high-current channels in the thinnest possible flat profile only 14 mm thick, making it the ideal male power penetrator where panel space and housing thickness are extremely limited.
Precision-machined 316L stainless steel body with gold-plated brass pins, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 2 × 16 AWG PTFE leads for maximum current handling.
Perfect for high-power thruster feeds, LED floodlight arrays, battery module penetrators and compact deepsea power distribution where traditional round connectors are too bulky. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFLPBH2M
Brand: HYSF
Type: Flat 2-Core Male Bulkhead Connector
Gender: Male
Pin Count: 2
Contact Material: Gold-plated Brass
Current Rating: 30A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Footprint: 32 × 17 mm
Body Thickness: 14 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated 2 × 16 AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: High-Power Thruster Penetrators, LED Lighting Feeds, Battery Module Ports, Compact Power Distribution
Certification: ISO9001-2015
Compatibility: SFLPIL2F / SFLPBH2F Females
Place of Origin: Guangdong, China
