HYSF SFLPBH4M is a low-profile flat 4-pin male bulkhead connector with 32×17 mm footprint. IP68 rated, 60 MPa tested, designed for Gigabit Ethernet feedthroughs on space-critical AUVs, micro-ROVs, flat-panel instrumentation, PTZ cameras and thin pressure housings up to 6000 m.
The HYSF SFLPBH4M delivers full 1000BASE-T Gigabit Ethernet in an ultra-thin flat profile only 14 mm thick, making it the ideal high-speed data penetrator where panel space and housing thickness are severely limited.
Precision-machined 316L stainless steel body with gold-plated brass pins, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 4 × 22 AWG PTFE leads (two shielded twisted pairs). Supports 1000BASE-T Gigabit Ethernet with excellent signal integrity.
Perfect for high-resolution camera feeds, Ethernet-enabled sensor arrays, ROV control networks and compact deepsea data distribution where traditional round connectors are too bulky. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFLPBH4M
Brand: HYSF
Type: Flat 4-Core Male Bulkhead Connector
Gender: Male
Pin Count: 4
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring

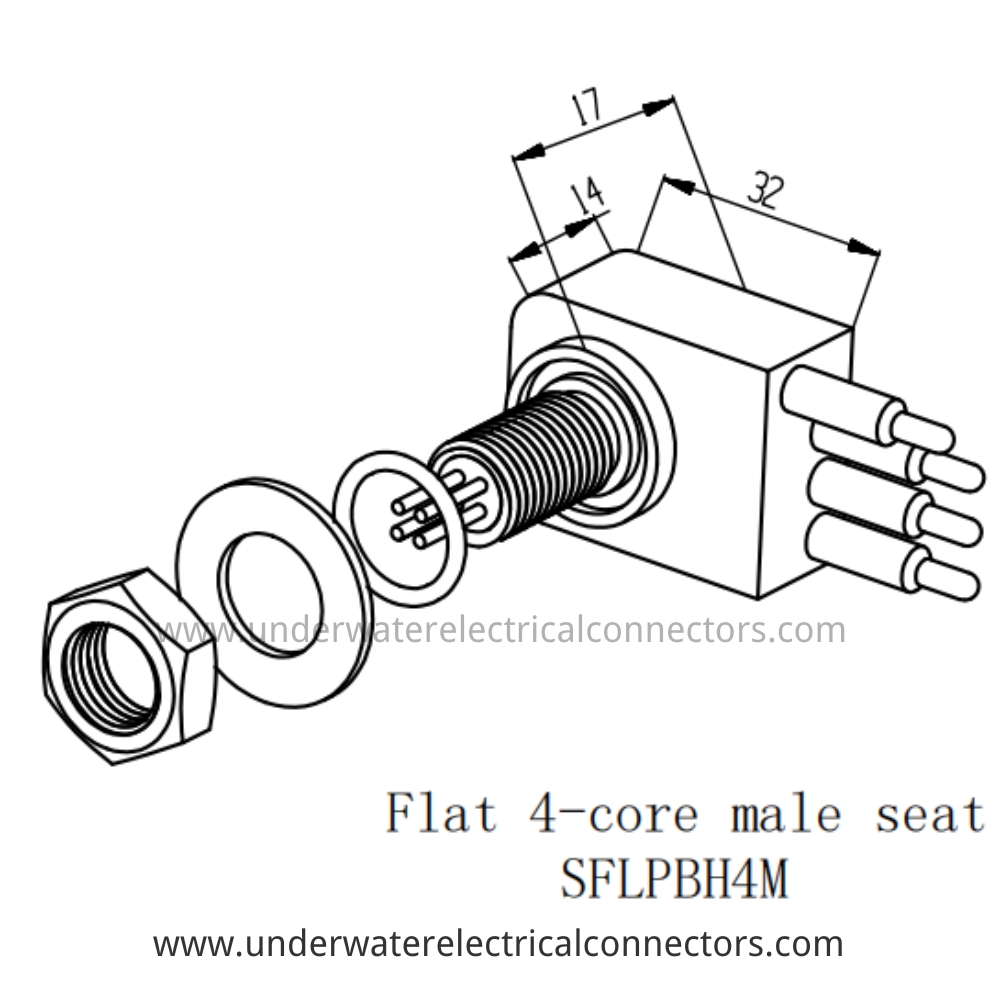

Footprint: 32 × 17 mm
Body Thickness: 14 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated 4 × 22 AWG PTFE Leads (Gigabit Ethernet capable)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet Flat Penetrators, PTZ Camera Feeds, Ethernet Sensor Panels, Compact Data Distribution
Certification: ISO9001-2015
Compatibility: SFLPIL4F Females
Place of Origin: Guangdong, China
