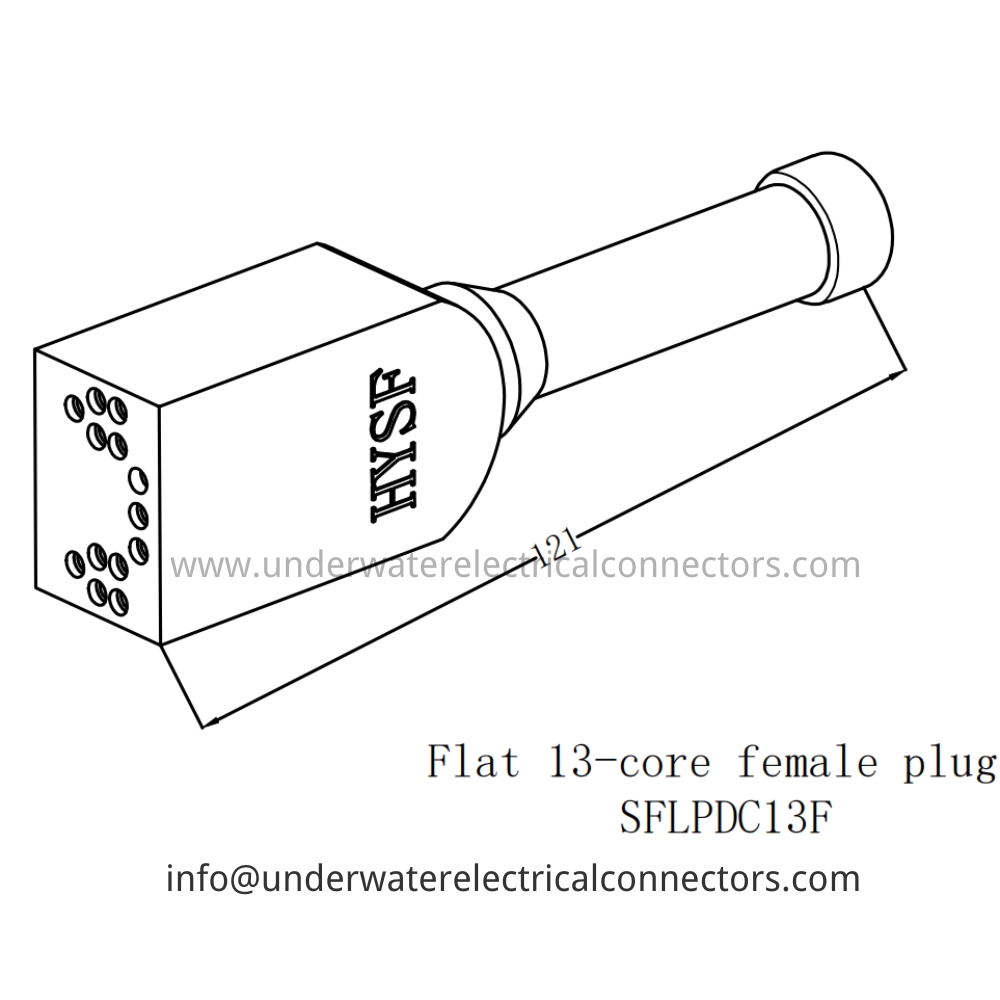

HYSF SFLPDC13F Flat 13-core female plug Underwater Connector

Product Description

The HYSF SFLPDC13F is a dedicated female dummy plug that reliably seals exposed male 13-pin flat bulkhead connectors from seawater intrusion, biofouling and mechanical damage. Its streamlined black polyurethane body slides over SFLPBH13M ports, creating a complete pressure-tight mechanical barrier with no electrical connection.

Injection-molded from high-durometer UV-stabilized PU with integrated stainless steel retention clip and tether loop. Triple internal O-rings ensure secure locking onto the host connector shoulder while the large grip enables easy hand-installation even with thick gloves.

Essential for maintaining system integrity on extreme-density flat-panel Gigabit Ethernet + high-power + multi-sensor/actuator systems, ultra-compact ROV payloads and advanced manipulators when ports are temporarily unmated. ISO9001-2015 certified with 100 MPa burst rating and 500-hour UV resistance.

Product Parameter

Model: SFLPDC13F

Brand: HYSF

Type: Flat 13-Core Female Dummy Plug

Gender: Female (Non-Electrical)

Pin Count: 13 Dummy Sockets

Contact Material: None (Sealing Only)

Housing Material: Polyurethane + 316L Stainless Clip

Sealing: Triple O-Ring on Flat Nose

Body Dimensions: 44 × 24 mm (Max)

Total Length: 121 mm

Grip Section: Large Hex

Tether: Integrated 2 mm Stainless Loop

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Flat 13-pin Male Port Protection, Gigabit Ethernet + High Power + Multi-Sensor/Actuator Blanking, Ultra-High-Density Dummy Caps

Certification: ISO9001-2015

Compatibility: SFLPBH13M Male Ports

Place of Origin: Guangdong, China
