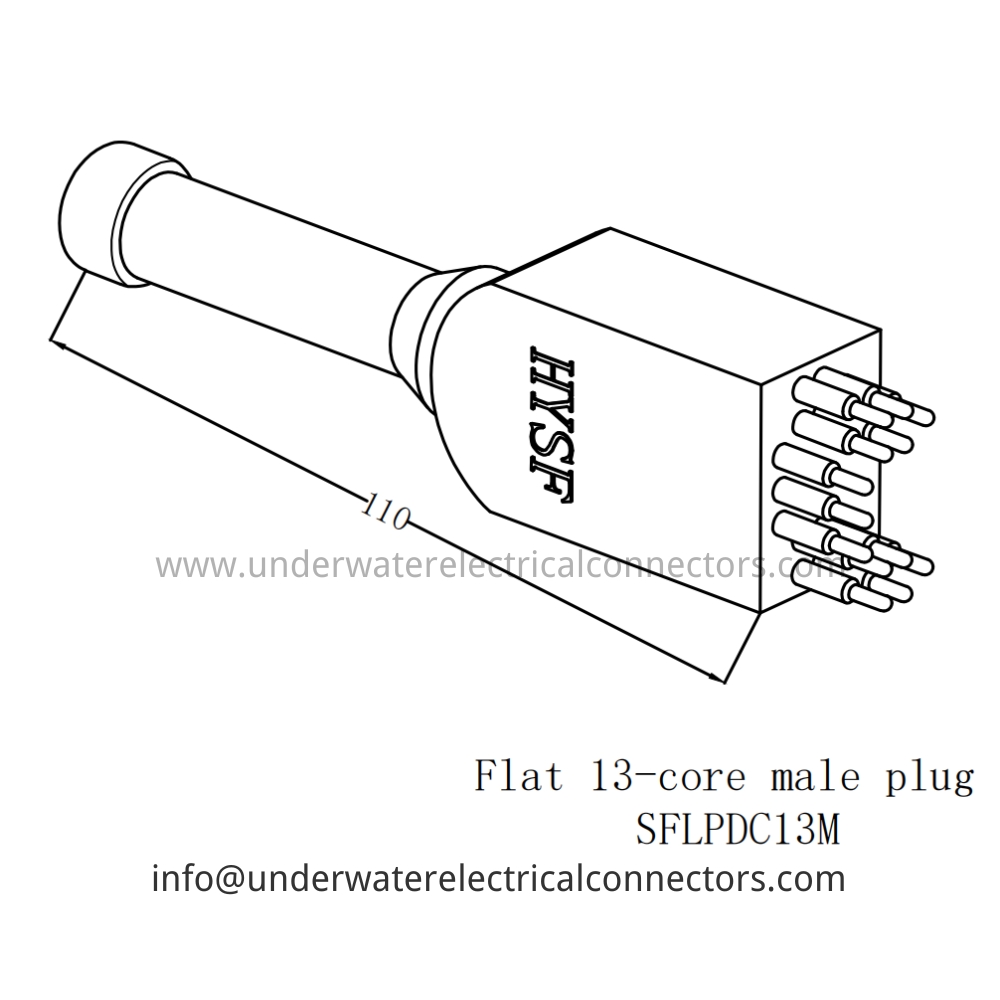

HYSF SFLPDC13M is a high-density flat 13-pin male dummy plug with PU cap. IP68 rated, 60 MPa tested, dedicated for protecting unused female 13-pin flat ports on extreme-density Gigabit Ethernet + high-power + multi-sensor/actuator systems, micro-ROVs, AUV flat panels and thin pressure housings up to 6000 m.
The HYSF SFLPDC13M is a dedicated male dummy plug that fully seals and protects open female 13-pin flat receptacles in harsh subsea environments. Its streamlined black polyurethane cap slides over SFLPBH13F ports, creating a complete pressure-tight barrier with no electrical connection.
Molded from abrasion-resistant, UV-stabilized PU with integrated stainless steel tether eye and triple internal O-rings. The large hex grip enables tool-free installation even with gloved hands, while the captive tether eye prevents loss during ROV operations.
Critical for safeguarding extreme-density flat-panel Gigabit Ethernet + high-power + multi-sensor/actuator ports, ultra-compact ROV payloads and advanced manipulators from biofouling and debris. ISO9001-2015 certified with 100 MPa over-pressure validation and 2000-hour salt-spray resistance.
Model: SFLPDC13M
Brand: HYSF
Type: Flat 13-Core Male Dummy Plug
Gender: Male (Non-Electrical)
Pin Count: 13 Dummy Pins
Contact Material: None (Sealing Only)
Housing Material: Polyurethane + 316L Stainless Tether Eye
Sealing: Triple O-Ring on Flat Shaft
Body Dimensions: 44 × 24 mm (Max)
Total Length: 110 mm
Grip Section: Large Hex
Tether: Integrated 2 mm Stainless Eyelet
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Flat 13-pin Female Port Blanking, Gigabit Ethernet + High Power + Multi-Sensor/Actuator Protection, Ultra-High-Density Dummy Caps
Certification: ISO9001-2015
Compatibility: SFLPBH13F Female Ports
Place of Origin: Guangdong, China
