HYSF SFLPDC3M is a low-profile flat 3-pin male dummy plug with PU cap. IP68 rated, 60 MPa tested, dedicated for protecting unused female 3-pin flat ports on power + RS485/RS232 systems, micro-ROVs, AUV control panels, pan-tilt units and thin pressure housings up to 6000 m.
The HYSF SFLPDC3M is a dedicated male dummy plug that fully seals and protects open female 3-pin flat receptacles in harsh subsea environments. Its streamlined black polyurethane cap slides over SFLPBH3F ports, creating a complete pressure-tight barrier with no electrical connection.
Molded from abrasion-resistant, UV-stabilized PU with integrated stainless steel tether eye and triple internal O-rings. The large hex grip enables tool-free installation even with gloved hands, while the captive tether eye prevents loss during ROV operations.
Critical for safeguarding flat-panel power + data ports, deepsea control arrays and battery modules from biofouling and debris. ISO9001-2015 certified with 100 MPa over-pressure validation and 2000-hour salt-spray resistance.
Model: SFLPDC3M
Brand: HYSF
Type: Flat 3-Core Male Dummy Plug
Gender: Male (Non-Electrical)
Pin Count: 3 Dummy Pins
Contact Material: None (Sealing Only)
Housing Material: Polyurethane + 316L Stainless Tether Eye
Sealing: Triple O-Ring on Flat Shaft

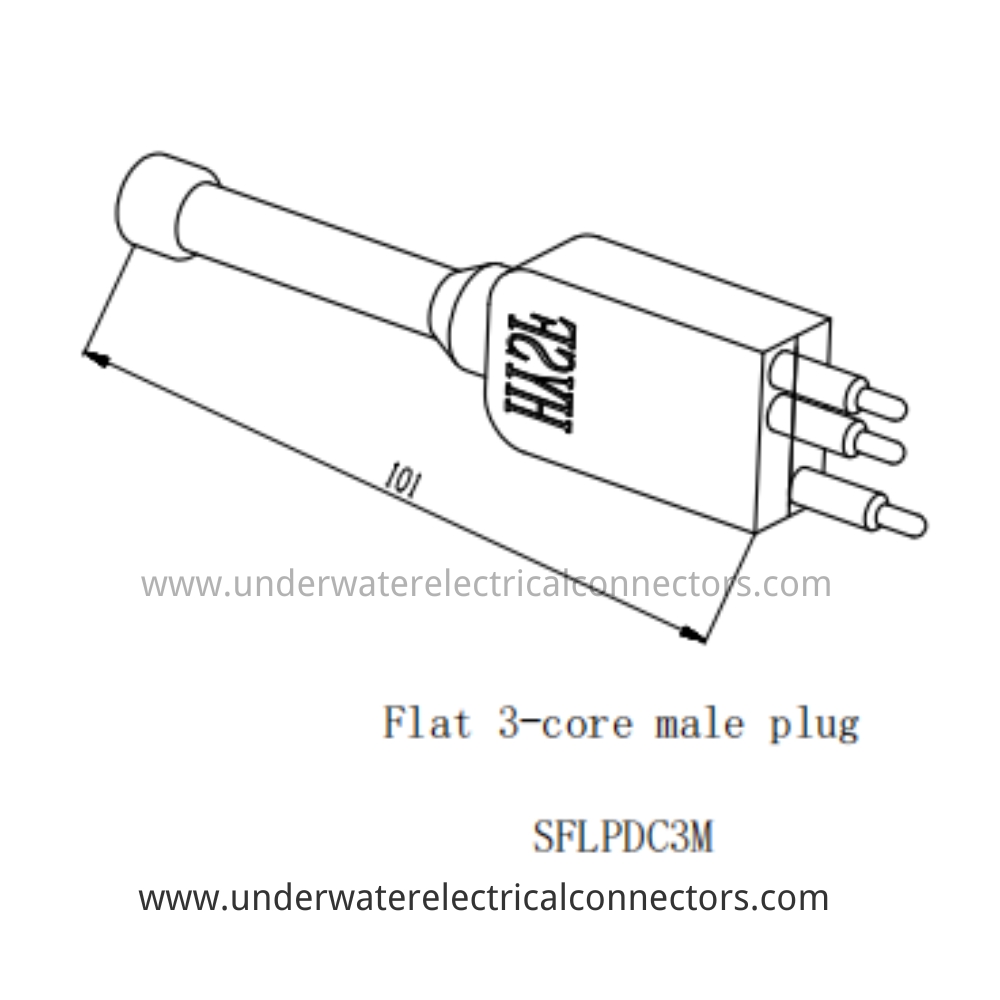

Body Dimensions: 32 × 17 mm (Max)
Total Length: 101 mm
Grip Section: Large Hex
Tether: Integrated 2 mm Stainless Eyelet
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Flat 3-pin Female Port Blanking, Power + RS485/RS232 Protection, PTZ Control Port Sealing, Compact Dummy Caps
Certification: ISO9001-2015
Compatibility: SFLPBH3F Female Ports
Place of Origin: Guangdong, China
