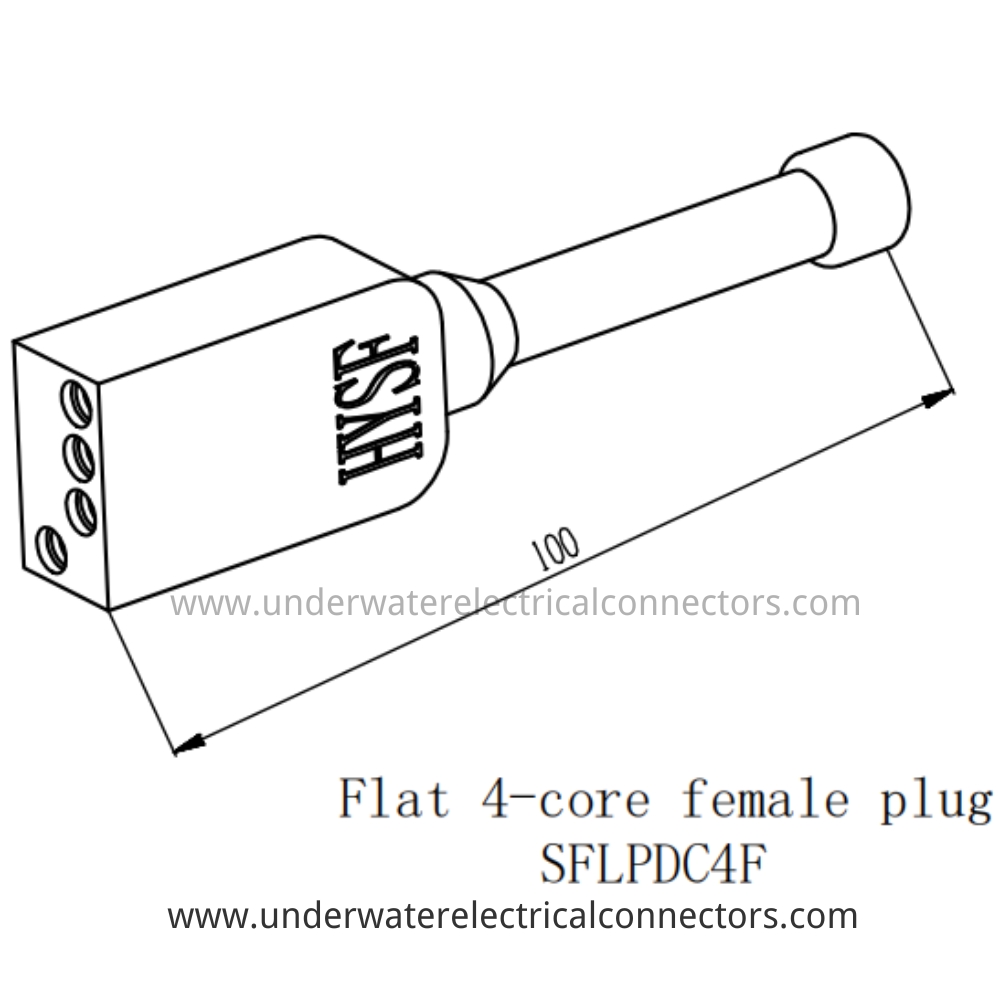

HYSF SFLPDC4F is a low-profile flat 4-pin female dummy plug with PU body. IP68 rated, 60 MPa tested, designed for protecting unused male 4-pin flat ports on Gigabit Ethernet systems, micro-ROVs, AUV flat panels, PTZ cameras and thin pressure housings up to 6000 m.
The HYSF SFLPDC4F is a dedicated female dummy plug that reliably seals exposed male 4-pin flat bulkhead connectors from seawater intrusion, biofouling and mechanical damage. Its streamlined black polyurethane body slides over SFLPBH4M ports, creating a complete pressure-tight mechanical barrier with no electrical connection.
Injection-molded from high-durometer UV-stabilized PU with integrated stainless steel retention clip and tether loop. Triple internal O-rings ensure secure locking onto the host connector shoulder while the large grip enables easy hand-installation even with thick gloves.
Essential for maintaining system integrity on high-speed Gigabit Ethernet flat-panel systems, deep-rated camera arrays and complex payloads when ports are temporarily unmated. ISO9001-2015 certified with 100 MPa burst rating and 500-hour UV resistance.
Model: SFLPDC4F
Brand: HYSF
Type: Flat 4-Core Female Dummy Plug
Gender: Female (Non-Electrical)
Pin Count: 4 Dummy Sockets
Contact Material: None (Sealing Only)
Housing Material: Polyurethane + 316L Stainless Clip
Sealing: Triple O-Ring on Flat Nose
Body Dimensions: 32 × 17 mm (Max)
Total Length: 100 mm
Grip Section: Large Hex
Tether: Integrated 2 mm Stainless Loop
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Flat 4-pin Male Port Protection, Gigabit Ethernet Blanking, PTZ Camera Port Sealing, Compact Dummy Caps
Certification: ISO9001-2015
Compatibility: SFLPBH4M Male Ports
Place of Origin: Guangdong, China
