HYSF SFLPIL3M is a low-profile flat 3-pin male inline cable connector with PU overmold. IP68 rated, 60 MPa tested, ideal for power + RS485/RS232 tethers on space-critical micro-ROVs, AUV control umbilicals, pan-tilt units, sonar chains and deepsea inline splicing up to 6000 m.

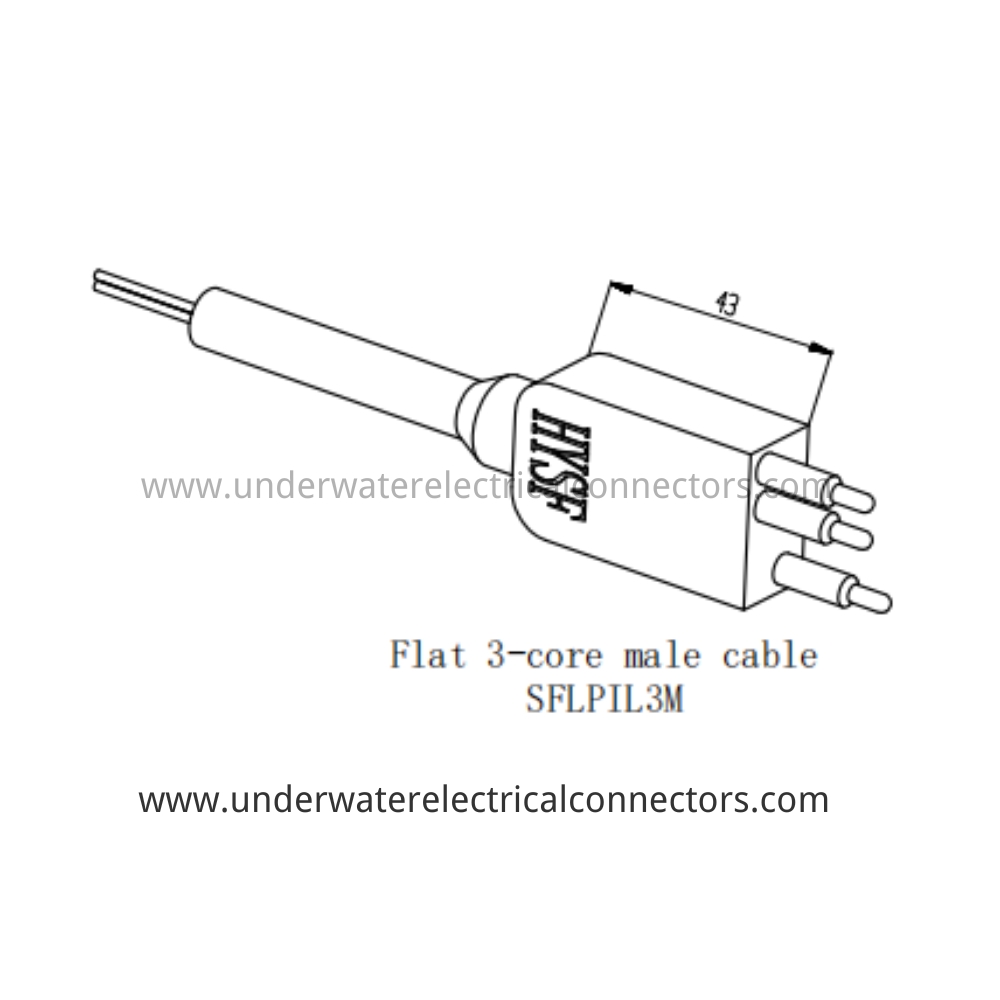

The HYSF SFLPIL3M delivers 3 channels in an ultra-thin flat profile with tapered PU overmold, enabling seamless inline splicing and cable termination where round connectors exceed available space. Only 43 mm grip length with integrated strain relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully encapsulated in black polyurethane. Pre-terminated with 3 × 20 AWG PTFE leads. Standard configuration: 2 power pins + 1 differential pair for RS485/RS232 half-duplex communication.
The definitive choice for next-generation flat ROV control umbilicals, AUV pan-tilt/sonar feeds, actuator interfaces and deepsea hybrid flat cables requiring combined power + data in minimal cross-section. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFLPIL3M
Brand: HYSF
Type: Flat 3-Core Male Inline Cable
Gender: Male
Pin Count: 3
Contact Material: Gold-plated Brass
Current Rating: 20A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Profile: 32 × 17 mm
Grip Length: 43 mm
Cable: 3 × 20 AWG PTFE Leads (color-coded)
Overmold: Black Polyurethane (PU)
Locking: Threaded Sleeve
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Power + RS485/RS232 Tethers, PTZ/Sonar Umbilicals, Actuator Control Chains, Deepsea Flat Inline Splicing
Certification: ISO9001-2015
Compatibility: SFLPBH3F Females
Place of Origin: Guangdong, China
