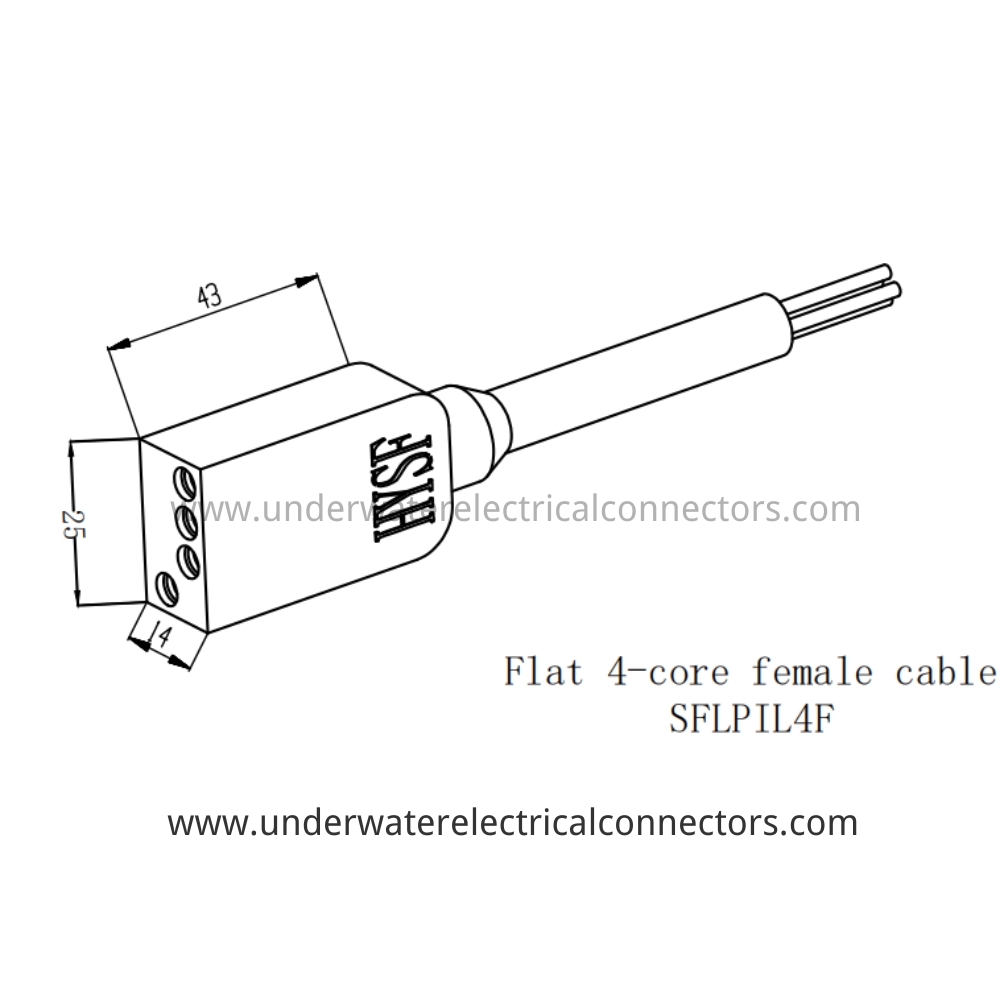

HYSF SFLPIL4F is a low-profile flat 4-pin female inline cable connector with PU overmold. IP68 rated, 60 MPa tested, ideal for Gigabit Ethernet tethers on space-critical micro-ROVs, AUV flat umbilicals, high-resolution camera chains and deepsea inline splicing up to 6000 m.
The HYSF SFLPIL4F delivers full 1000BASE-T Gigabit Ethernet in an ultra-thin flat profile with tapered PU overmold, enabling seamless inline splicing and cable termination where round connectors exceed available space. Only 43 mm grip length with integrated strain relief.
Precision 316L stainless steel insert with gold-plated brass sockets, fully encapsulated in black polyurethane. Pre-terminated with 4 × 22 AWG PTFE leads (two shielded twisted pairs). Supports 1000BASE-T Gigabit Ethernet with excellent signal integrity.
The definitive choice for next-generation flat ROV Ethernet umbilicals, AUV high-resolution camera feeds, Ethernet sensor chains and deepsea hybrid flat cables requiring high-speed data in minimal cross-section. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFLPIL4F
Brand: HYSF
Type: Flat 4-Core Female Inline Cable
Gender: Female
Pin Count: 4
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Profile: 32 × 17 mm
Grip Length: 43 mm
Cable: 4 × 22 AWG PTFE Leads (Gigabit Ethernet capable)
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet Flat Tethers, High-Resolution Camera Chains, Ethernet Sensor Umbilicals, Deepsea Flat Inline Splicing
Certification: ISO9001-2015
Compatibility: SFLPBH4M Males
Place of Origin: Guangdong, China
