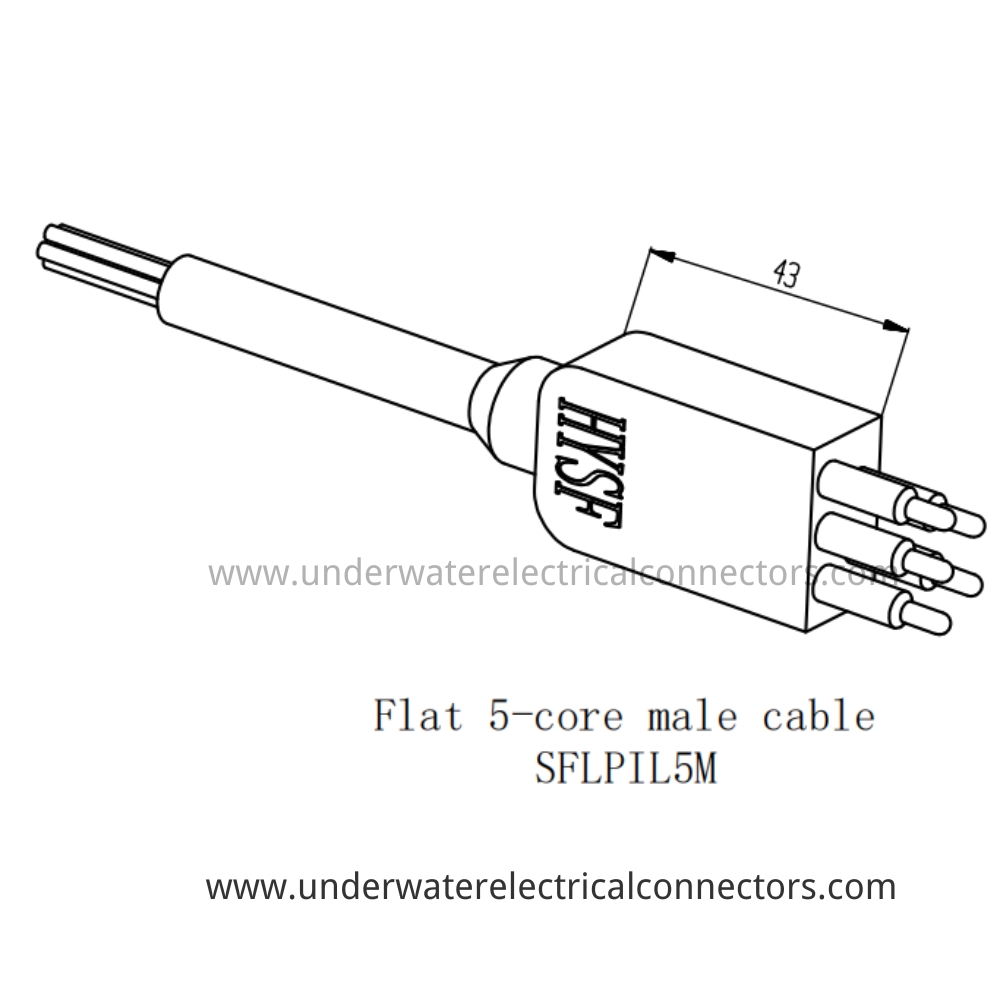

HYSF SFLPIL5M Flat 5-core male cable Underwater Connector

Product Description

The HYSF SFLPIL5M delivers full 1000BASE-T Gigabit Ethernet plus one dedicated power line in an ultra-thin flat profile with tapered PU overmold, enabling seamless inline splicing and cable termination where round connectors exceed available space. Only 43 mm grip length with integrated strain relief.

Precision 316L stainless steel insert with gold-plated brass pins, fully encapsulated in black polyurethane. Pre-terminated with 5 × 24 AWG PTFE leads. Supports 1000BASE-T Gigabit Ethernet (4 pins) + one high-current power/ground line.

The definitive choice for next-generation flat ROV hybrid umbilicals, AUV high-resolution camera feeds with power, Ethernet + power sensor chains and deepsea hybrid flat cables requiring high-speed data and power in minimal cross-section. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.

Product Parameter

Model: SFLPIL5M

Brand: HYSF

Type: Flat 5-Core Male Inline Cable

Gender: Male

Pin Count: 5

Contact Material: Gold-plated Brass

Current Rating: 8A per Pin (higher on power pin)

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Profile: 32 × 17 mm

Grip Length: 43 mm

Cable: 5 × 24 AWG PTFE Leads (Gigabit Ethernet + Power capable)

Overmold: Black Polyurethane (PU)

Locking: Threaded Sleeve

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Gigabit Ethernet + Power Flat Tethers, High-Resolution PTZ Camera Chains, Ethernet + Power Sensor Umbilicals, Deepsea Hybrid Inline Splicing

Certification: ISO9001-2015

Compatibility: SFLPBH5F Females

Place of Origin: Guangdong, China
