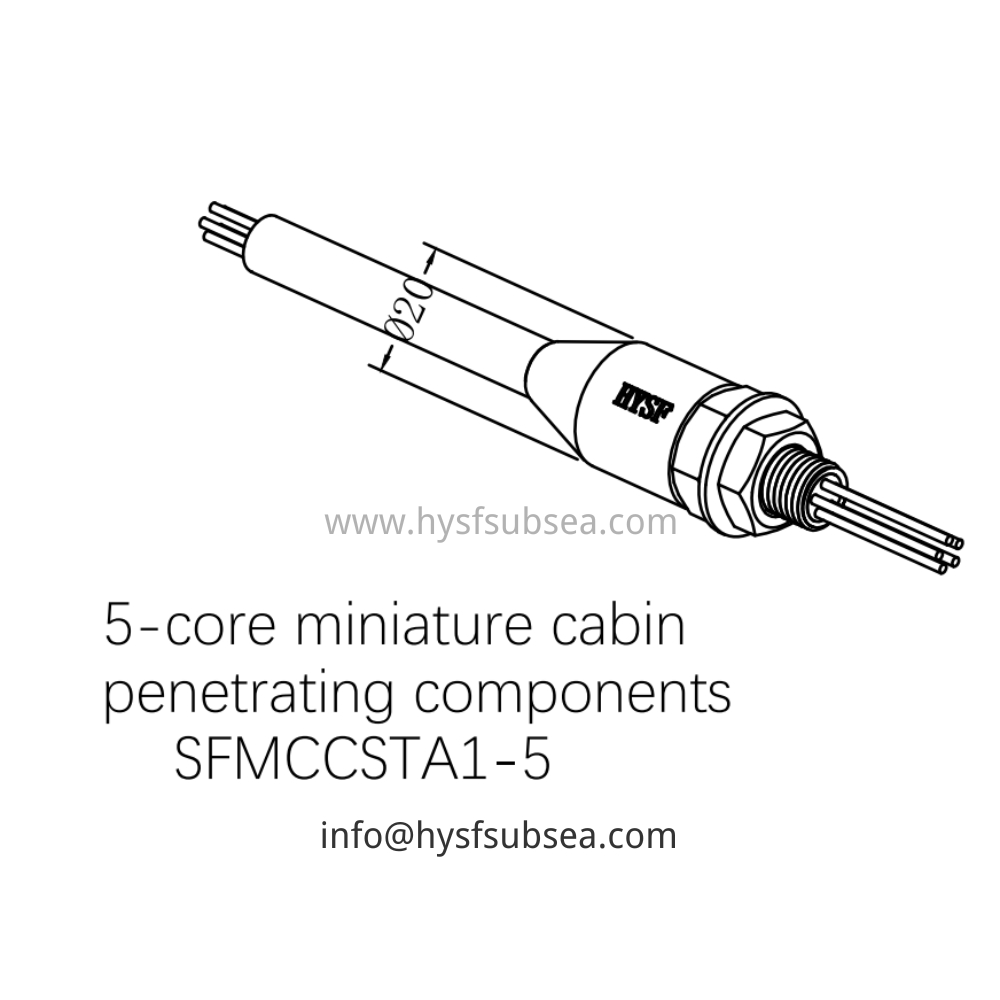

HYSF SFMCCSTA1-5 is a custom miniature 5-core cabin penetration connector designed for ultra-compact bulkhead installations. IP68 rated, 60 MPa tested, provides reliable watertight feedthrough in minimal diameter for space-critical routing in ROVs, habitats, pressure housings and deepsea systems up to 6000 m.
The HYSF SFMCCSTA1-5 features an ultra-compact straight miniature design with tapered overmold and threaded bulkhead mounting, ideal for installations requiring minimal penetration diameter while delivering reliable 5-core connectivity.
Precision 316L stainless steel body with gold-plated brass contacts, double O-ring sealing and integrated strain relief. Pre-terminated with 5-core cable for mixed power/signal applications in ultra-small profile.
Perfect for miniature cabin penetrations, compact habitat bulkhead feedthroughs, micro ROV interfaces and any subsea pressure housing requiring watertight multi-channel connectivity in extreme space constraints. ISO9001-2015 certified with 100 MPa burst validation.
Model: SFMCCSTA1-5
Brand: HYSF
Type: Miniature 5-Core Cabin Penetration
Core Count: 5
Contact Material: Gold-plated Brass
Current Rating: Mixed Power/Signal Configuration
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 20 mm
Mounting: Threaded Bulkhead
Cable: Pre-terminated 5-Core Cable
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Miniature Cabin Penetrations, Compact Habitat Feedthroughs, Micro ROV Interfaces, Ultra-Space-Constrained Multi-Channel Installations
Certification: ISO9001-2015
Customization: Available for Specific Core Counts & Configurations
Place of Origin: Guangdong, China
