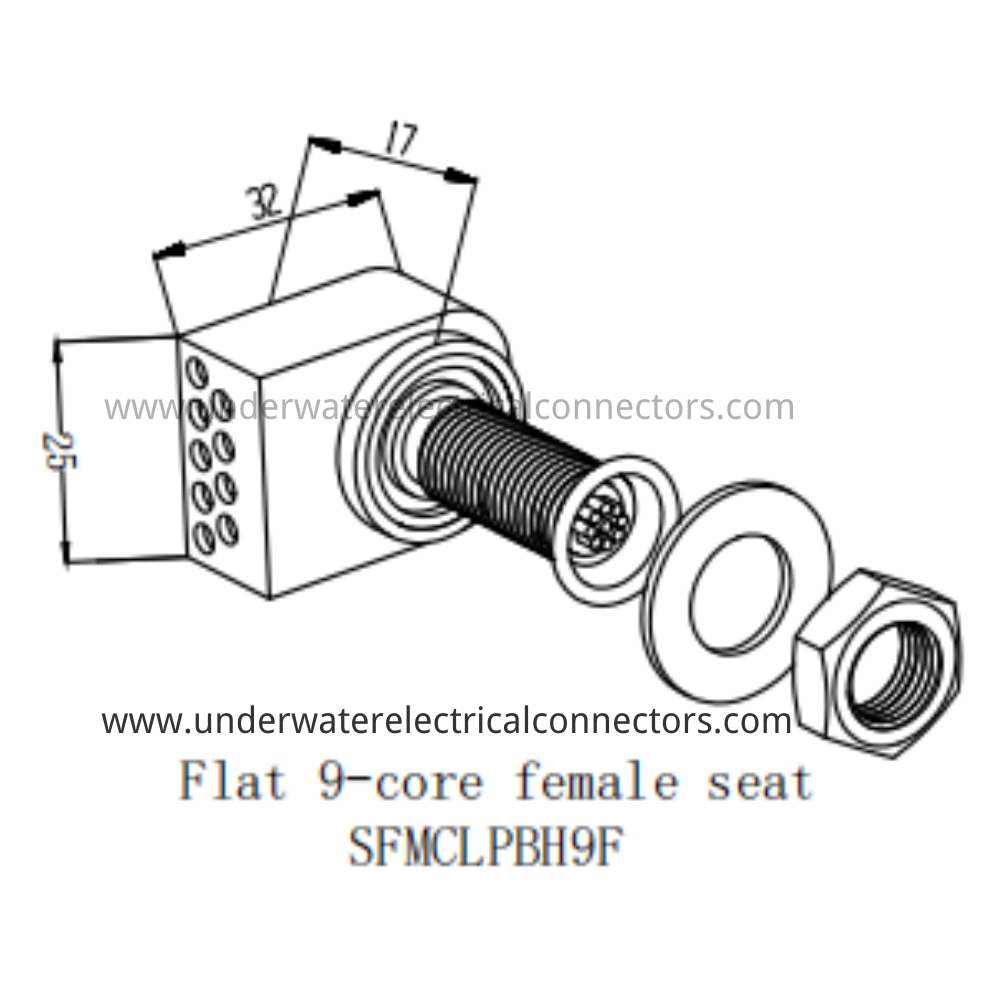

HYSF SFMCLPBH9F is a low-profile flat 9-pin female bulkhead connector with 32×17 mm footprint. IP68 rated, 60 MPa tested, designed for high-density Gigabit Ethernet + multi-power + multi-sensor feedthroughs on space-critical AUVs, micro-ROVs, flat-panel instrumentation and thin pressure housings up to 6000 m.
The HYSF SFMCLPBH9F packs 9 independent channels into an ultra-thin flat profile only 15 mm thick, providing exceptional density for applications where panel space and housing thickness are severely constrained.
Precision-machined 316L stainless steel body with gold-plated brass sockets, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 9 color-coded PTFE leads. Fully supports 1000BASE-T Gigabit Ethernet (two shielded twisted pairs) + 5 additional power/sensor/control lines.
The optimal choice for next-generation thin AUV pressure housings, flat ROV control panels, seabed multi-sensor arrays and compact deepsea instrumentation requiring maximum channels in minimal volume. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFMCLPBH9F
Brand: HYSF
Type: Flat 9-Core Female Bulkhead Connector
Gender: Female
Pin Count: 9
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Footprint: 32 × 17 mm
Body Thickness: 15 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated 9-color PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Multi-Power + Multi-Sensor Flat Penetrators, Thin AUV Housings, Flat ROV Panels, Compact Deepsea Feedthrough
Certification: ISO9001-2015
Compatibility: SFMCLPIL9M Males
Place of Origin: Guangdong, China
